2004–2008 Kubota RTV900 UTV Workshop Manual (P/N 9Y011-15305)

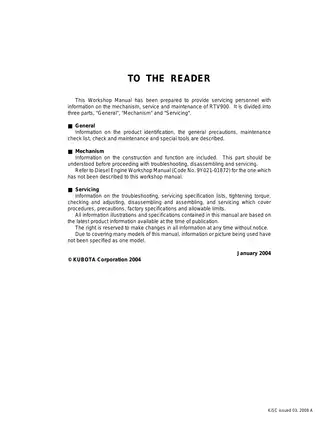

The 479-page PDF combines 374 pages of the base Kubota RTV900 Workshop Manual, a 76-page RTV900-TS Hydraulic Utility Model supplement, and a 29-page New Transmission update. It is identified as Kubota Code No. 9Y011-15305 and carries the KiSC issue mark 03, 2008 A. Factory configuration tables cover General Purpose, Worksite, Turf, and Recreational machines, while the RTV900-TS material adds Worksite Utility and Turf Utility configurations. Kubota states that the manual was prepared for servicing personnel; its pressure-test work, internal overhauls, and special-tool requirements make it suited to trained technicians and experienced mechanics with properly equipped shops.

• D902-E-UV and D902-E2-UV engine repair: Covers compression and lubrication-pressure testing, valve-clearance and injection-timing adjustment, injection-nozzle testing, engine separation, and internal disassembly and inspection of the cylinder head, valves, timing gears, camshafts, pistons, connecting rods, crankshaft, water pump, cylinders, and oil pump.
• Variable Hydro Transmission (VHT/HST) and transaxle service: Includes forward and reverse high-pressure testing, charge-pressure checks, neutral and travel-speed adjustment, pedal and shift-linkage setup, HST disassembly, transaxle removal, and service of the range gearbox, front-wheel-drive section, differential, servo regulator, relief valves, and charge pump.
• Axles, suspension, brakes, and steering: Details rear-axle and propeller-shaft work, front-differential and bevel-gear setup, MacPherson struts, lower arms and drive-shaft boots, wet-disc brake and master-cylinder repair, brake bleeding and parking-brake adjustment, plus power-steering pressure checks and pump/cylinder service.
• Cargo-bed and utility hydraulics: Provides relief-pressure testing, pump removal, control-valve and cylinder disassembly, and coverage of the cargo-bed lift, auxiliary outlet, floating-detent valve, on-off valve, hydraulic auxiliary tank, and RTV900-TS oil-cooling circuit.
• Electrical diagnosis and component overhaul: Covers the starting, charging, lighting, cooling-fan, gauge, safety-switch, stop-solenoid, relay, and speed-sensor circuits, with continuity, voltage, resistance, and operational tests plus starter and alternator disassembly and inspection.
• Maintenance and factory specifications: Supplies hour- and calendar-based service schedules, approved lubricant and coolant data, fluid capacities, component-specific torque tables, pressure-test specifications, wear limits, clearances, adjustment data, and electrical test values.

Machine and Serial Identification

The engine serial split is stated directly: D902-E-UV through 4Z9999 and D902-E2-UV from 5A0001. Identification drawings locate the vehicle identification plate, product identification number, engine serial number, and transmission assembly serial number, which helps match parts and procedures before repair work begins.

For North American RTV900 machines, the New Transmission section applies to the serial-number change for units starting with 50001. That update explains the revised HST mechanism, oil flow, bypass valve, and bypass control linkage, then covers the related checks, adjustments, and transaxle-removal differences. It is a change section rather than a second full transmission overhaul chapter; unchanged work follows the base RTV900 procedure.

Schematics, Special Tools, and Repair Detail

Representative illustrations include the complete vehicle wiring diagram, HST oil-flow and servo-control drawings, the power-steering hydraulic circuit, cargo-bed lift and auxiliary-outlet circuits, starting and charging circuit diagrams, and sectional or exploded views of the transaxle and wet-disc brakes.

The special-tool section identifies the Hydrostatic Transmission Tester 07916-52040 with HST Adaptor Set 07916-53072, Relief Valve Pressure Tester 07916-50045, glow-plug compression tester assembly 07909-39081, and Nozzle Tester 07909-31361. Dimensioned shop drawings are also provided for an axle support, power-train support, lower-arm bush tool, and relief-valve assembly tool.

The VHT chapter warns that the pump, motor, and assist-motor valve plates are not interchangeable and that pump and motor pistons must not be mixed during reassembly. It also flags two specific damage risks: non-approved transmission fluid can damage the transmission, while excessive brake-rod pull can cause drag, overheating, and burning.

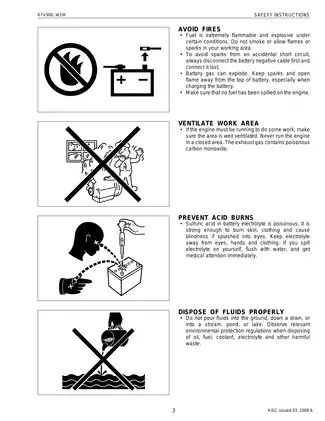

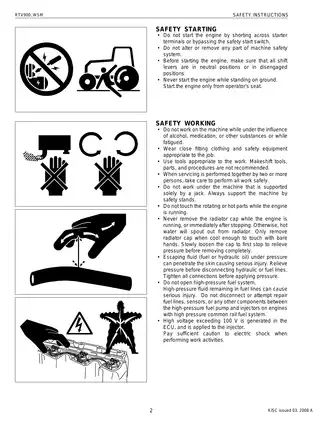

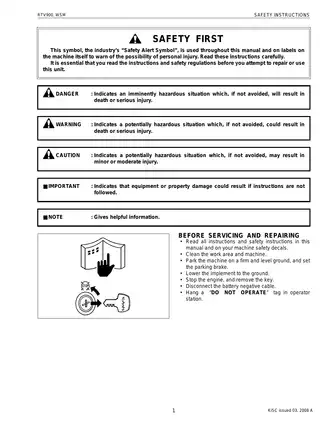

The engine chapter is detailed, but Kubota directs readers to the separate Diesel Engine Workshop Manual, Code No. 9Y021-01872, for engine work not described in this RTV900 manual. Before any repair, relieve hydraulic and fuel pressure, support the vehicle and raised cargo bed correctly, and follow the manual’s precautions for injection-nozzle testing, rotating driveline parts, and hot cooling-system components.
