2010 Nissan A6LF2 Automatic Transaxle System Overhaul Manual
Diagnostic procedures and component service for the 2010 A6LF2 Automatic Transaxle System. Documents overhaul and repair information. PN 3110A-5XA0A
Manual Preview

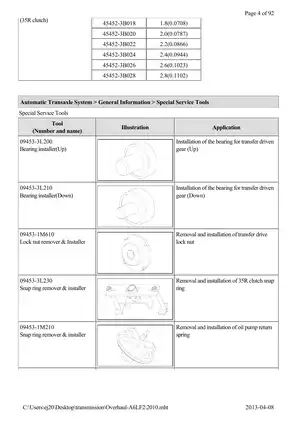

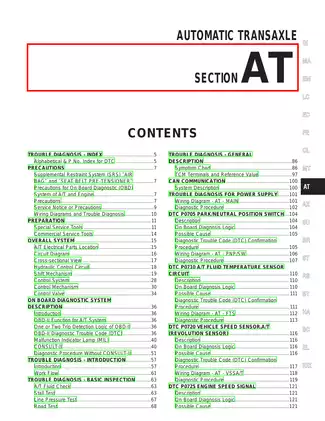

Sample pages from the 2010 Nissan A6LF2 Automatic Transaxle System Overhaul Manual manual
Purchase & Download
Nissan Models Covered & Key Technical Specifications
Models: Nissan A6LF1, Nissan A6LF2, Nissan A6LF3
Sub-models / Variants: Automatic Transaxle System
Build Years: 2010
Technical Data:
- Input shaft end play (Rear): 0.25–0.45 mm
- Input shaft end play (Front): 0.55–0.85 mm
- Transfer drive gear torque: 30.4–35.3 Nm (22.4–26.0 lb-ft)
- Differential gear backlash: 0.025–0.150 mm
- Oil pump assembly torque: 19.6–25.5 Nm (14.5–15.9 lb-ft)
- Valve body cover torque: 12.8–14.7 Nm (9.4–10.8 lb-ft)
- Lock nut tightening torque: 294–323 Nm (217–238 lb-ft)
Nissan Manual Features & Content Preview
Technical Scope for the 2010 Nissan A6LF2 Transaxle
- Covers the 2010 Nissan A6LF1, A6LF2, and A6LF3 automatic transaxle units including overhaul data, assembly clearances, and torque specifications
- OEM-sourced manual identified by file metadata dated 2013-04-08
- Documents the complete mechanical breakdown across 92 pages, featuring exploded-view assembly diagrams and special service tool (SST) application lists
- File link appears in your order confirmation straight away
- OCR text layer lets you jump to a torque spec by keyword
- Laid out for standard letter and A4 printing

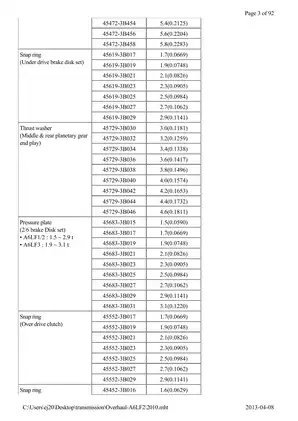

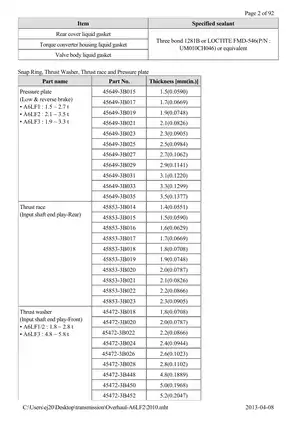

- This technical publication is the only source documenting the precise selection methods for snap rings, thrust washers, and pressure plates necessary for A6LF-series gear train end play
Component Disassembly and Assembly Procedures
The 2010 Nissan A6LF2 automatic transaxle overhaul manual documents the systematic breakdown of the transmission housing and internal gear components. Detailed sections cover the removal and reinstallation of the valve body, differential gear assembly, transfer drive and driven gear sets, as well as the 35R, 2/6, and under-drive clutch groups. Every major sub-assembly is presented with clear visual aids, component location maps, and specific guidance on the removal of snap rings and seal sets.
Specification and Tolerance Data
This manual provides comprehensive technical reference values for precise transmission service work. Cylinder head bolt torque values are documented in a multi-stage sequence, with final-stage angles of 130°–140° specified in the engine assembly data. Differential side gear and pinion gear backlash is documented at 0.025–0.150 mm. The manual includes multi-part torque tables detailing the required tightening values for the transfer drive gear, oil pump assembly, and valve body cover. Learn about how factory workshop documentation is structured to optimize your mechanical workflow.
Note: This page is a contents overview for the manual. It does not provide repair or diagnostic instructions. An official 92-page OEM manual covering the 2010 Nissan A6LF1, A6LF2, and A6LF3 automatic transaxle, documenting overhaul procedures, internal gear tolerances, and tightening specifications for the A6LF-series assembly.
Document Reference: 2013-04-08 (file metadata); Tismanual
