1981–1992 Suzuki DT48, DT50, DT55, DT60, DT65 Outboard Factory Service Manual with Model Supplements (P/N 99000-77802-030)

This Suzuki factory service manual covers maintenance and repair for the 1981–1992 DT48, DT50, DT55, DT60, and DT65 two-stroke outboards. It combines the base DT50/DT65 service sections with model-specific QD, VE, VG, VH, L, M, and N supplements.

• Powerhead repair: Engine removal, crankcase separation, piston and crankshaft inspection, reassembly, oil-seal installation, and DT50M recoil-starter service.

• Fuel and lubrication: Mikuni carburetor inspection and balancing, reed-valve checks, diaphragm-pump diagnosis, and oil-injection bleeding and delivery tests.

• Lower unit: Gearcase disassembly, clutch-dog and shifting-cam inspection, water-pump service, gear tooth-contact checks, and backlash adjustment.

• Mounting and controls: Outboard installation, remote-control cable adjustment, neutral-position checks, swivel and steering brackets, and propeller selection.

• Trim and tilt: PTT pressure testing, hydraulic bleeding, reservoir modifications, and DT48MQ/DT55MQ tilt-aid cylinder removal and installation.

• Electrical diagnosis: PEI ignition timing, CDI test charts, magneto and charging tests, starter-motor inspection, and model-specific wiring diagrams.

The detailed overhaul and diagnostic work suits mechanics familiar with outboard service and equipped for precision measurement, carburetor balancing, and ignition-system testing.

Powerhead Inspection and Cooling

Engine chapters cover cylinder-head and cylinder inspection, piston-to-cylinder clearance, piston-ring end gaps, crankshaft deflection, and bearing condition. Reassembly notes address gasket replacement, seal orientation, bearing locating pins, and crankcase sealing.

The Exploded View of Recoil Starter supports DT50M starter service. Cooling coverage includes thermostat operation and testing, coolant-passage inspection, and water-pump impeller replacement.

The cylinder-head notes warn that omitting the cylinder-block valve and spring can cause overheating. Carburetor testing notes also identify water-pump impeller damage as a consequence of running the motor out of water.

Carburetors, Fuel Pumps, and Model Updates

Fuel-system chapters connect carburetor float inspection and balancing with needle-valve condition, reed-valve sealing, and fuel-pump diaphragm checks. Oil-injected versions add pump bleeding, oil-delivery measurements, and hose-routing information.

The DT50K section explains the separate gasoline and kerosene circuits in the Mikuni BK34-24 carburetor; later service data identify the BK341-24. These circuits have distinct jetting and float specifications.

The DT48M M supplement documents the change from two carburetors to one and the revised fuel-pump pulse connection. The DT55M/MQ N update covers the fixed throttle rod and revised throttle-synchronization adjustment.

Gearcase Rebuilding and Control Adjustment

Lower-unit procedures cover the driveshaft, pinion, forward and reverse gears, clutch dog, shifting cam, propeller shaft, bearings, and seals. The Transmission System view, Tooth Contact Pattern illustration, and Backlash Adjustment by Shimming drawing relate component placement to gear setup.

Later gearcase checks specify the gear-adjusting gauge set, P/N 09951-09510. Pinion-nut torque, thrust-play checks, shim positions, and propeller-shaft housing installation are addressed alongside the disassembly and inspection procedures.

Control sections cover single and twin remote-control installations, throttle and clutch cable adjustment, neutral alignment, and operating checks. Swivel-bracket service, reverse-lock adjustment, motor mounting, and propeller selection round out the installation coverage.

PTT Reservoir Changes and Tilt-Aid Limits

PTT sections include oil-circulation diagrams, pressure tests, filling, and bleeding. The VH supplement distinguishes early and modified reservoirs with different oil-level checking positions, helping you select the procedure that matches the installed unit.

The DT48MQ/DT55MQ tilt-aid section covers cylinder removal and installation. Its pressurized gas cylinder is treated as a sealed assembly, with an explicit warning against disassembly.

PEI Ignition and Charging Tests

Electrical coverage distinguishes DT50M electronic spark advance from the mechanical advance systems used on the other base models. CDI checking charts, coil-resistance specifications, and later peak-voltage tests support ignition fault isolation.

The Charging System Circuit Diagram, CDI-checker connection views, and model-specific wiring diagrams accompany starter-motor and charging-system tests. The separate Group 14 troubleshooting attachments listed in the group index are not included in this PDF.

Working on marine fuel systems and high-voltage ignitions carries inherent safety risks. Follow the factory safety precautions and battery-disconnection requirements before troubleshooting or disassembly.

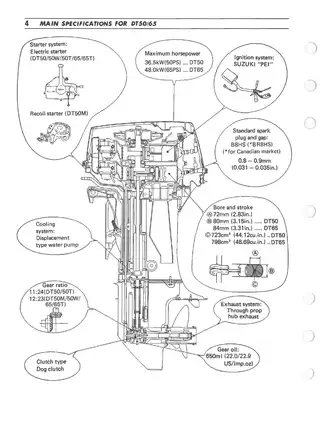

Sample Reed-Valve and Ignition-Coil Specifications

A few examples from the base DT50/DT65 sections show the component-level inspection and electrical data provided in the manual.

Reed-stop opening is 7.6–8.0 mm for the DT50 and 7.55–7.95 mm for the DT65. Both have a reed-to-seat clearance limit of 0.2 mm.

For the DT50M, ignition-coil primary resistance is 0.28–0.38 ohm at 20°C, measured between the white/black lead and ground. Other models have separate coil-test specifications.

Searchable Text, Bookmarks, and PDF Contents

Search and diagram detail: An existing OCR text layer supports text search, and embedded bookmarks link the main sections and model supplements. Recognition of small wiring labels is inconsistent; zooming and rotation help with the diagrams, although some lettering remains soft.

Supplied as one printable, 268-page English PDF, including the two group-index pages and the model supplements within that total. Printed pagination reaches 278, and some supplement sections appear out of sequence in the file.
