2005–2009 Massey Ferguson 1533 / 1540 Tractor Workshop Service Manual (P/N 4283359M1)

The Massey Ferguson 1533 / 1540 Compact Tractor Workshop Service Manual, publication 4283359M1, covers cab and non-cab configurations with Synchro Shuttle, Power Shuttle and hydrostatic drivetrains.

• Engine support systems: Cooling-system maintenance, fan-belt adjustment, fuel-filter replacement, fuel-system air bleeding and air-cleaner service.

• Major components: Tractor separation, engine removal, cab and platform removal, and access to transmission and lift-cylinder housings.

• Clutch and drivetrain: Clutch inspection, shuttle-clutch service, input and range gears, rear and optional mid-PTO, and four-wheel-drive engagement components.

• Hydrostatic transmission: HST disassembly, inspection and assembly, pressure testing, relief-valve service, and single- and two-pedal linkage adjustments.

• Axles and brakes: Front-differential overhaul, final-drive service, rear-axle disassembly, differential-lock repair and wet-brake adjustment.

• Hydraulics and steering: Main-control and remote-valve overhaul, hydraulic troubleshooting, three-point position and draft linkage adjustment, and Orbit Roll steering-unit repair.

• Electrical and cab systems: Wiring diagrams, connector and solenoid tests, Power Shuttle and PTO controls, and cab air-conditioning service and diagnosis.

Suited to experienced tractor mechanics with equipment for chassis separation, precision measurement and hydraulic pressure testing.

Cooling, Fuel Supply and Engine-Service Scope

Cooling-system material explains reserve-tank operation and supplies thermostat data. Fuel coverage includes electric pump specifications, filter service and air bleeding after fuel-system work or loss of fuel supply.

The included engine section covers external systems and engine removal; internal diesel-engine overhaul procedures are not included. Engine compression data and rear-linkage lift ratings accompany fluid-capacity information, the Periodic Inspection and Maintenance Chart and the Standard Torque Chart.

Chassis Separation and Component Access

The Major Components section distinguishes work requiring cab or platform removal from jobs that leave those assemblies in place. That distinction helps plan access before starting a transmission or axle repair.

Separate procedures cover engine-to-transmission separation, the HST bell housing, front and rear transmission cases, and lift-cylinder case removal. The splitting instructions address wooden wedges at the front axle and support for separated housings to prevent tipping.

Clutch Repair and HST Overhaul

Clutch coverage includes lining and runout inspection, release-bearing and cross-shaft service, and assembly using centering tool ATP1011. Transmission sections distinguish shuttle-clutch construction, main and range gears, PTO clutch components and four-wheel-drive shifting parts.

HST overhaul material reaches the pump and motor shafts, cylinder blocks, valve plates and swash plate. The Oil Flow Diagram, Hydraulic Schematic of HST Unit and Exploded View of HST Unit support the internal inspection and assembly procedures.

Pressure-test procedures reference tool kit ATP3031. A charge-test warning explains how reverse-pedal operation in that test setup can destroy the gauge.

Axle Setup, Hydraulic Diagnosis and Steering

Front-differential instructions cover pinion-bearing preload, shims and backlash checks. They also warn that incorrect ring-gear indexing can cause spider-gear failure.

Rear-axle material includes brake balancing and differential setup. The rear-differential instructions distinguish different bolt sizes and their corresponding torque specifications.

Hydraulic troubleshooting charts connect no-lift, leakage and PTO-slip symptoms with component checks. Steering repair separates control-side and gerotor-side assembly, with inspection guidance for the spool, sleeve, seals and related parts.

Electrical Testing and Cab Air Conditioning

Electrical coverage supplies connector views, terminal assignments, and solenoid resistance and insulation checks for Power Shuttle and PTO controls. Wiring diagrams distinguish transmission and cab configurations; the Cab Schematic covers equipment such as the blower, compressor relay, work lights and wipers.

Cab air-conditioning service covers the compressor, condenser, receiver dryer and control cables, plus troubleshooting with a service gauge manifold. Refrigerant charging is specified for trained personnel using the appropriate service equipment.

Fuel-Pump and Driveline Specification Preview

Fuel-pump specifications list a cutoff pressure of 0.37 bar (5.4 psi). For Synchro Shuttle and Power Shuttle tractors, clutch pedal free play is specified at 20–30 mm (0.79–1.18 in), measured at the end of the pedal.

For internal HST inspection, the worn-parts table calls for piston-set replacement when piston-to-cylinder-bore clearance exceeds 0.035 mm (0.0014 in).

PDF Search, Diagram Detail and Included Pages

Search and diagram limitations: Text search works across most service chapters, with gaps in the general specifications and within diagrams. There are no embedded PDF bookmarks. Some small wiring labels remain indistinct when enlarged; the early Synchro Shuttle circuit also has clipped right-edge lettering.

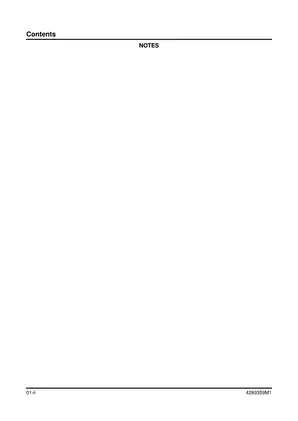

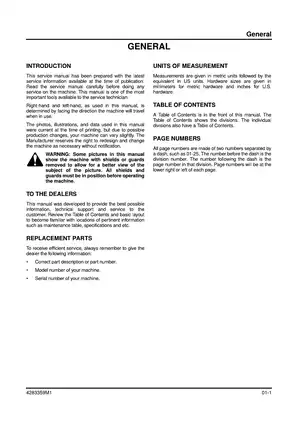

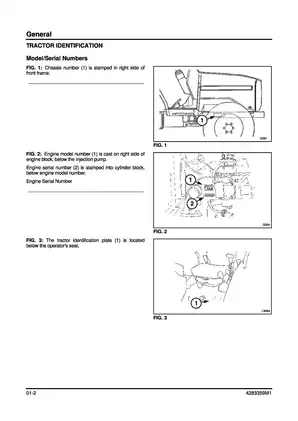

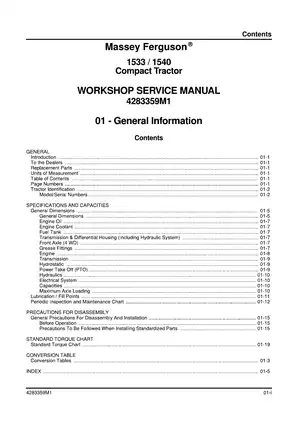

One printable, English-language PDF with 711 pages, including the opening contents sheet, 53 notes pages and 9 pages marked intentionally blank. The integrated Major Components section, marked 79028571 A, occupies 104 pages of that total.
