1997-2001 Audi A3, 8L Workshop Manual
Complete workshop manual for the 1997-2001 Audi A3 (8L chassis) covering interior trim, seat belts, and airbags. Includes part numbers.

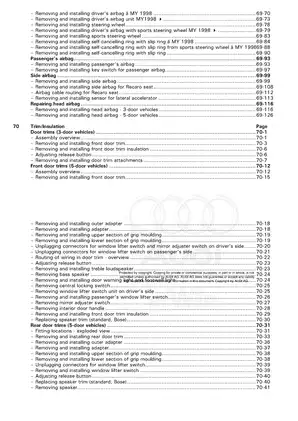

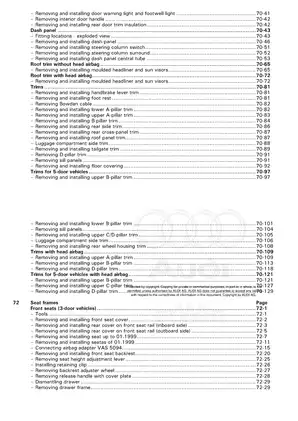

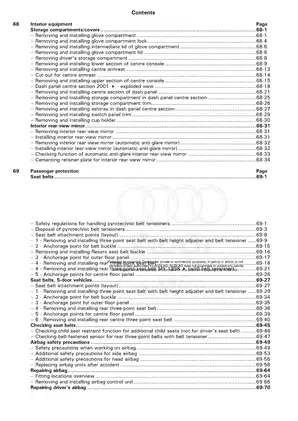

Manual Preview
Sample pages from the 1997-2001 Audi A3, 8L Workshop Manual manual
Purchase & Download
Audi Models Covered & Key Technical Specifications
Models: Audi A3 (8L)
Build Years: 1997–2001
Technical Data:
- Glove compartment bolt torque: 4 Nm
- Center console lower section bolt torque: 4 Nm (front 1.5 Nm, rear 4 Nm)
- Center console support bolt torque: 18 Nm
- Dash panel center trim bolt torque: 1.2 Nm
- Interior mirror ball joint dimension: 127 mm
- Front three-point seat belt shouldered nut torque: 55 Nm
- Front three-point seat belt anchor bolt torque: 23 Nm
- Recaro seat belt buckle bolt torque: 60 Nm
- Rear seat belt anchor bolt torque: 55 Nm
- Front door trim bolt torque: 2.5 Nm
- Side airbag bolt torque: 5.5 Nm
- Recaro side airbag module bolt torque: 10 Nm
- Head airbag bolt torque: 4 Nm
Audi Manual Features & Content Preview
Audi A3 8L Interior and Passenger Protection Manual
- Covers 1997–2001 Audi A3 (8L) models including 3-door and 5-door variants with standard, sports, and Recaro seating configurations

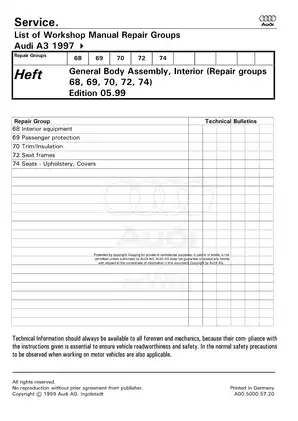

- Official Audi AG publication A00.5000.57.20, edition 05.99
- Contains 47 exploded-view diagrams and 35 individual torque-specification tables for interior assembly and restraint components
- File delivered as a direct download the moment payment clears
- Indexed PDF search covers every chapter and appendix
- Stored against your account so you can retrieve it after a hard-drive loss
- This 05.99 edition serves as the original factory reference for the 1997–2001 A3 interior component installation and SRS handling procedures
Interior Assembly and Trim
The 1997–2001 Audi A3 workshop manual documents the removal and installation of dashboard components, including the glove compartment, center console, and radio/navigation dash panels. The text outlines trim removal for door panels, door handle mechanisms, and interior mirror units, including automatic anti-glare mirrors. Technical data includes specific torque values for mounting bolts and dimension requirements for rear-view mirror bonding applications.
Passenger Protection and SRS Data
Technical Specification Preview
This manual details the handling of pyrotechnic belt tensioners and the airbag system. Torque for seat belt anchor points is specified at 55 Nm for shouldered nuts. The document includes safety precautions for working on driver, passenger, side, and head airbag units, specifically documenting requirements for lateral acceleration sensors and airbag control unit replacement. Side airbag module installation requires a 5.5 Nm tightening torque for fasteners. How factory workshop documentation is structured provides further insight into these system specifications. All service data shown here is for reference only — qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work. An official 132-page Audi AG OEM workshop manual covering the 1997–2001 Audi A3 (8L), documenting interior body assembly, seat belt systems, and airbag safety procedures for the specified build years.
