2011 Nissan Maxima Service Manual

2011 Nissan Maxima A35 Series Service Manual

• Covers 2011 Nissan Maxima SV and S models with A35 series architecture, documenting accelerator control, body control systems, and brake system maintenance
• Official Nissan publication, revision January 2012
• Contains 87 pages of technical specifications, component location diagrams, and system diagnosis flow charts
• Delivered as a direct download the moment payment clears
• Indexed PDF search covers every chapter and appendix

This 2011 Nissan Maxima service manual serves as the factory reference for identifying electrical and mechanical parameters. The document covers the A35 series configuration, detailing the BCM body control module and the integrated accelerator control system, including pedal assembly specifications.

Component and System Documentation

The manual documents the complex body control module (BCM) and combination switch reading systems, providing a logical workflow for diagnostics using the CONSULT-III tool. It outlines internal wiring for signal buffer and power consumption control systems, with detailed terminal layouts for the M16 through M21 BCM connectors. Technical sections also provide a structural breakdown of the brake system, covering pad inspection, rotor runout, and master cylinder maintenance for the A35 series platform.

Technical Specification Preview

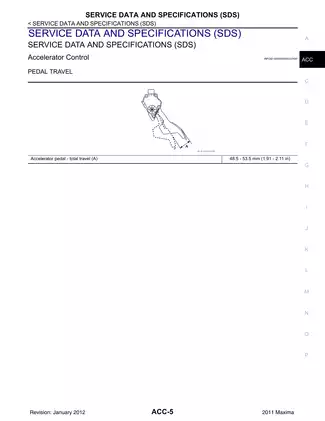

Accelerator pedal total travel is documented at 48.5–53.5 mm (1.91–2.11 in). Brake pedal adjustments for stop lamp switch and ASCD cancel switch gaps are specified in the periodic maintenance section. Fluid line integrity is verified through hydraulic circuit diagrams which list flare nut M10 torque at 16.2 Nm (12 ft-lbs) and flare nut M12 torque at 18.2 Nm (13 ft-lbs). Reference only — always consult a certified technician before performing service on this equipment.

An official 87-page Nissan OEM service manual covering the 2011 Nissan Maxima, documenting accelerator, body control, and braking system specifications for the A35 series build.
