2008 Suzuki VLR1800 / Boulevard C109R / Intruder C1800R Service Manual (P/N 99500-39360-01E)

• Suzuki factory service manual for the 2008 VLR1800 K8, issued in January 2008 as Part No. 99500-39360-01E and supplied as a 624-page PDF.
• Identifies E-02 U.K., E-19 E.U., E-03 U.S. except California, E-24 Australia, E-28 Canada, and E-33 California builds. Effective frame coverage begins at JS1CT111200100001 (E-02), JS1CT111100100001 (E-19), JS1CT111300100001 (E-24), and JS1VY54A 82100001 (E-03/E-28/E-33).
• Details engine removal and installation, throttle-body service and synchronization, valve-clearance adjustment, cylinder-head and valve repair, top- and bottom-end assembly, piston and connecting-rod inspection, and crankshaft bearing selection.
• Provides Suzuki Diagnosis System (SDS) and FI troubleshooting, DTC fault isolation, fail-safe tables, sensor and actuator tests, fuel-pressure and delivery checks, and E-33 evaporative-emissions diagnosis.
• Covers five-speed transmission and clutch removal, internal disassembly, inspection, and assembly, along with secondary and final bevel-drive teardown, backlash and shim adjustment, universal-joint service, and final operational checks.
• Includes front-fork overhaul, swingarm and cushion-lever bearing work, wheel and tire service, steering-stem bearing replacement and tension adjustment, plus front and rear brake master-cylinder and caliper repair, hose replacement, fluid replacement, and bleeding.
• Supplies regional wiring diagrams, harness-routing drawings, FI and ECM connector information, lubrication and cooling schematics, brake-hose routing, component locations, torque tables, capacities, wear limits, adjustment data, and electrical test specifications.

Exact Factory Scope

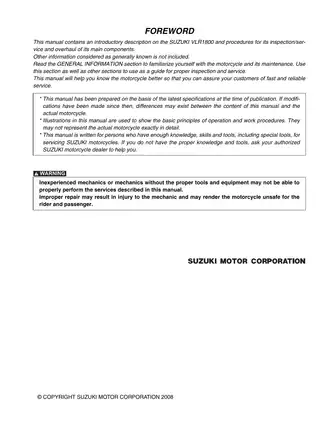

Suzuki describes this publication as a guide to inspection, service, and overhaul of the VLR1800's main components. It is written for people who already have the knowledge, skills, and equipment - including special tools - needed to service Suzuki motorcycles. That makes it suited to professional technicians and experienced owners with the necessary shop equipment, not beginners looking for basic mechanical instruction. Suzuki also notes that generally known workshop information is omitted and that some illustrations show operating principles rather than every production detail.

Regional Systems and Diagnostics

The regional codes affect more than labels. The manual separates the primary-reduction specifications used by E-02/E-19/E-24 from those used by E-03/E-28/E-33. It also distinguishes oxygen-sensor applications, PAIR control layouts, lighting circuits, and the California-only E-33 EVAP canister, purge valve, hose routing, inspection, and DTC coverage. Dedicated diagnostic material covers ECM-controlled fuel injection, crankshaft and pressure/temperature sensor circuits, throttle-position and secondary-throttle systems, the idle-speed control valve, fuel pump and injectors, ignition, exhaust-control actuator, cooling fan, charging, starting, and side-stand interlock.

The engine section goes well beyond scheduled maintenance. Full engine work is split into removal, top-end service, and bottom-end procedures. Coverage includes camshafts and automatic decompression, cam-chain components, valve guides and seats, pistons and rings, connecting rods, crankshaft journals, balancer components, oil-pump testing, water-pump overhaul, fuel-pump assembly, injector service, and exhaust-control adjustment. Chassis work extends through fork internals, suspension linkage bearings, wheel bearings and balancing, steering bearings, brake hydraulics, and shaft-drive gear setup.

Schematics, Test Data, and Special Tools

Named visual references include the FI System Wiring Diagram and ECM terminal alignment, Camshaft and Sprocket Assembly Diagram, Engine Lubrication System Chart, Cooling Circuit and Water Hose Routing Diagrams, E-33 EVAP System and Canister Hose Routing Diagrams, and the regional main wiring and harness-routing diagrams. Component-specific service data brings together torque specifications, clearances, wear limits, fluid and lubricant information, pressure checks, electrical test values, and adjustment data without forcing the technician to rely on generic specifications.

The tool listings identify the SDS set 09904-41010, mode-selection switch 09930-82720, fuel-pressure gauge and hose adapter 09940-40211/09940-40220, backlash measuring tool 09924-34510, final-drive bearing holder wrench 09924-62410, and clutch sleeve hub holder 09920-53740. These references show what equipment is expected before deeper diagnosis or overhaul work begins.

EXCVA and Throttle-Body Cautions

The manual warns that adjusting the exhaust-control cable with the valve at either end stop can damage the EXCVA, while allowing a disconnected throttle valve to snap shut can damage the valve and throttle body. Because the procedures also include fuel-system opening, brake-fluid service, engine-running tests, and removal of heavy chassis and powertrain parts, use the specified support equipment and follow Suzuki's cautions for fuel, brake fluid, battery isolation, exhaust ventilation, and post-repair safety checks.
