CASE IH JX60, JX70, JX80, JX90, JX95 – 2006 Tractor Service Manual (P/N 6-62720)

This CASE IH service manual covers the JX60, JX70, JX80, JX90, and JX95 tractors, with specifications and repair procedures for their naturally aspirated and turbocharged engines. The main manual reference is P/N 6-62720, dated September 2006.

PDF Search, Diagram Detail and Page Count

Search and diagram access: Body text is searchable, although some illustration labels are not included in the searchable text. There are no embedded PDF bookmarks. Small wire codes and connector labels in the wiring diagrams require zooming.

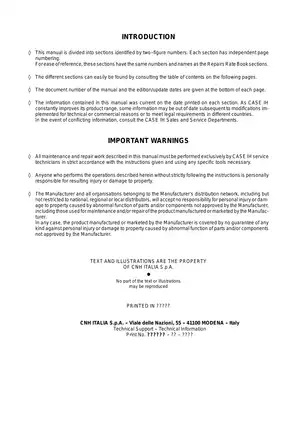

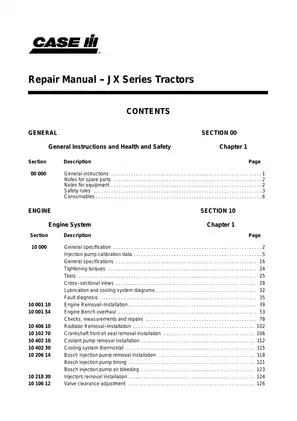

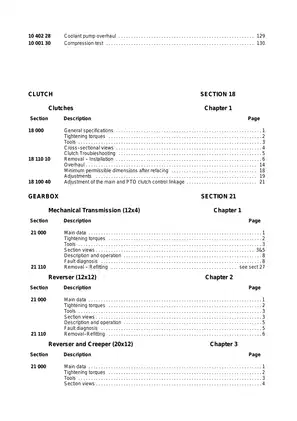

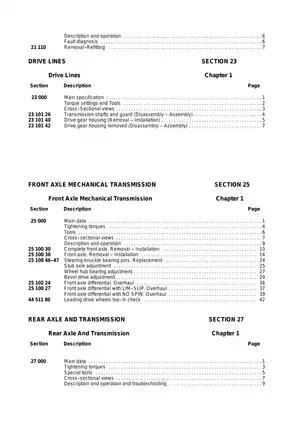

The English-language download is one printable, 632-page PDF, including 10 opening pages, 20 otherwise blank pages with running headers, and one notes page.

Engine, Drivetrain and Tractor-System Repairs

The following highlights are a selection of the manual’s contents. Other documented topics include battery testing and front-wheel alignment.

• Engine repair: Engine removal, bench overhaul, compression testing, cooling-system service, and Bosch injection-pump timing, bleeding, and calibration data.

• Clutch and gearbox: Tractor splitting, VALEO clutch overhaul, main and PTO clutch linkage adjustment, and mechanical gearbox, reverser, and creeper-unit service.

• Axles and final drives: Front-axle disassembly, LIM-SLIP and NO SPIN differential overhaul, bevel-drive adjustment, and rear final-drive service.

• Hydraulics and steering: Rear mechanical lift overhaul, LIFT-O-MATIC adjustment, auxiliary-valve spool testing, and hydrostatic steering control-valve bench tests.

• Brake systems: Wet-disc service brakes, parking-brake adjustment, optional front brakes, hydraulic bleeding, and trailer-brake auxiliary control-valve linkage adjustment.

• Electrical diagnosis: Starting- and charging-system tests, starter and alternator service, wiring diagrams, connector overviews, and ground-location drawings.

• Cab and air conditioning: Refrigerant recovery, leak testing, system charging, compressor replacement, and removal and replacement procedures for cab controls, doors, and glass.

The manual is written for CASE IH service technicians and calls for dedicated lifting equipment, measuring instruments, and specified service tools.

Engine Overhaul and Bosch Fuel-System Data

Step-by-step procedures cover engine removal and bench disassembly, followed by component inspection and reassembly. Cylinder-liner press-fitting, crankshaft journal alignment, piston inspection, valve work, and timing-gear synchronization are supported by wear limits and component-specific torque data.

Fuel-system reference: Separate Bosch VE calibration sheets identify the pump fitted to each model and provide test-bench conditions, delivery checks, governor data, and advance-regulator checks. Injection-pump installation and timing procedures specify the dial-gauge equipment, including gauge 380000228.

Engine cross-sections, lubrication diagrams, and the Engine Cooling System diagram support component identification. Dimensioned drawings are also included for crankshaft seal installation tools 50138 and 50139.

Clutch, Transmission and Axle Work

The teardown, inspection, and reassembly information provides an equipped workshop with a basis for planning major repairs in-house. The clutch section identifies universal outfit 293650 and includes refacing limits and release-lever adjustments.

The gearbox chapters distinguish the standard transmission, synchronized reverser, and reverser–creeper arrangements. Mechanical PTO coverage includes removal and bench overhaul, with a separate procedure for the interchangeable-shaft NASO version.

Axle setup: The front-axle differential cross-section identifies the bearing and pinion-position shims. Adjustment procedures distinguish the smaller and larger tractor models and include bevel-gear backlash and rolling-torque checks under the stated assembly conditions.

Working on heavy agricultural machinery carries inherent risks, so always verify that the equipment is properly blocked and hydraulic pressure is fully relieved before starting any major drivetrain service or repair.

Lift Hydraulics and Hydrostatic Steering

The Hydraulic Lift Circuit diagram explains raising, neutral, and lowering operation. Diagnostic charts address failure to lift, load-holding problems, and related control-valve faults; the overhaul sections add linkage settings and relief-valve tests.

The lift overhaul instructions flag the risk of damaging internal seal lips on the arm-shaft splines. Auxiliary-valve coverage extends to spool binding, leakage, and automatic detent-release adjustment.

The steering section combines a General Hydraulic Diagram with bench checks for rotary-valve wear, return to neutral, seal efficiency, and relief-valve operation.

Electrical Fault Tracing and Cab Air Conditioning

Starting-circuit voltage-drop tests and alternator output, regulator, winding, and diode checks support fault isolation before component replacement. Starting Circuit diagrams and Connector Overview drawings connect the test procedures with wiring and terminal identification.

Cab systems: Air-conditioning diagnosis relates pressure readings and sight-glass observations to possible faults. Procedures cover refrigerant handling equipment, electronic leak detection, receiver-drier and condenser replacement, and SANDEN SD 7H15 compressor service.

Examples of Engine Assembly and Inspection Data

The angle-tightening table specifies a preliminary cylinder-head bolt torque of 70 Nm with 90° + 90° angle tightening. Main bearing cap bolts have an 80 Nm preliminary torque and a further 90° angle.

For the four-cylinder engines, the specified cylinder-liner internal diameter after press-fitting and reaming is 104.000–104.024 mm. Fuel-supply pump data specifies a minimum flow of 100 liters/hour with the pump shaft turning at 1600 rpm.
