Isuzu A1-4JJ1 Diesel Engine Workshop Manual

This Isuzu Motors Limited workshop manual covers the A1-4JJ1 industrial diesel engine, identified as 4JJ1 in the technical chapters. Coverage follows the engine rather than a particular host machine.

PDF Search, Navigation and Download Contents

Text search and diagram detail: The technical chapters contain searchable text. Embedded bookmarks open the cover and six main sections. Small electrical-diagram labels are best read with magnification.

The ZIP download contains one printable English PDF with 234 pages, including the cover. Separate viewing instructions and two viewer screenshots are also supplied.

Engine Rebuilding and System Testing

These selected repair topics show the main areas covered; they are not a complete table of contents.

• Cylinder head and valves: Step-by-step head disassembly and reassembly, valve-guide and seat repair, gasket selection, torque-angle installation, and cold valve-clearance adjustment.

• Timing and valvetrain: Gear and chain service, camshaft scissors-gear and rocker-arm-shaft disassembly, clearance checks, supply-pump timing, and final alignment checks.

• Lower-end repair: Piston and connecting-rod removal, crankshaft and thrust-bearing inspection, bearing selection, cylinder boring and honing, flywheel service, and crankshaft oil-seal replacement.

• Common-rail fuel system: Air bleeding, water draining, fuel-vacuum testing, filter replacement, injector and rail removal and installation, and supply-pump replacement requirements.

• Cooling and lubrication: Water-pump inspection, thermostat testing, drive-belt adjustment, fan-clutch checks, oil-pressure testing, and oil-pump, cooler, filter, and relief-valve service.

• Starting, charging and preheating: Generator disassembly and electrical tests, starting-circuit fault tracing, starter checks, glow-plug replacement, and preheat troubleshooting.

• EGR and exhaust: EGR-cooler removal and installation, exhaust leak and restriction troubleshooting, and turbocharger shaft-play inspection.

The repair depth is suited to professional technicians and experienced engine rebuilders equipped for precision measurement, engine handling, and electrical testing, with access to ECM service equipment where required.

Mechanical Inspection and Rebuild Decisions

Inspection data covers head and manifold flatness, valve stems, guides, seats and springs, cam lobes and journals, rocker rollers and shafts, piston rings and pins, connecting-rod alignment, crank journals, and cylinder bores.

Head-gasket selection uses piston projection, while main-bearing selection uses cylinder-block and crankshaft grade markings. These tables connect measured dimensions to the replacement grade needed during a rebuild.

Cylinder-block work includes crack testing and oversize boring and honing. Flywheel instructions address ring-gear inspection and shrink-fit replacement.

Timing illustrations distinguish scissors-gear spring positioning, idle-gear backlash and end clearance, camshaft bearing-cap identification, and colored chain-link alignment. The reassembly instructions also cover tensioner release and alignment verification after rotating the crankshaft.

Supporting the engine directly on its oil pan can damage the pan and oil-pump strainer. The Tufftride-treated crankshaft must not be ground or polished.

Machine-specific engine removal instructions are outside this engine manual’s coverage.

Fuel Service and ECM Requirements

A tank-to-common-rail layout identifies the fuel supply and return paths. Injector instructions address cylinder identification, ID-code recording, installation in the original position, and pipe handling.

The fuel-vacuum check provides a way to investigate a restricted supply before treating the problem as a high-pressure component failure. Removed high-pressure pipes require replacement because reuse can damage their sealing surfaces and cause leakage.

Supply-pump replacement includes timing and ECM learning requirements. Injector-code programming prerequisites are documented, but the programming sequence itself is assigned to the separate EMPS or EMPS III Operating Instructions, which are not included.

Cooling and Oil-System Diagnosis

The cooling-water circuit and overheating/overcooling charts accompany coolant-concentration checks, thermostat orientation, and pump and fan-clutch inspections. The water pump is treated as a non-disassembled assembly.

The lubrication diagram traces oil distribution and relief-valve operation. Repair instructions extend to the crankcase, oil pan, strainer, filter, and cooler, with an oil-pressure test and leak checks to support diagnosis.

Electrical Tests and Circuit References

Electrical coverage addresses the specified 24-volt generator and Hitachi starter arrangements. Generator material includes diode, condenser, field-coil, stator, bearing, regulated-voltage, and output-current checks.

Visual references include generator internal connections, the IC-regulator performance-test wiring diagram, and the Hitachi starter circuit. Starting-system charts distinguish no-crank and slow-cranking faults. The starter is designated a non-disassembled unit; internal overhaul instructions are not supplied.

EGR, Turbocharger and Diagnostic Limits

EGR-cooler work includes gas-leak inspection and installation sequencing. Exhaust troubleshooting addresses vibration, blockage, leakage, and noise.

Turbocharger coverage is limited to inspection rather than internal overhaul. Detailed EGR-valve diagnosis, ECM memory clearing, and some preheat faults refer to an Engine Control System section that is not included in this PDF.

Special Tools and Workshop Preparation

Tool listings distinguish essential, recommended, and substitutable equipment. Identified tools include the 5-8840-2591-0 camshaft gear tool, 5-8840-2816-0 valve-guide remover/installer, 5-8840-2821-0 front oil-seal installer, EN-47667 fuel pressure/vacuum adapter, and J-44638 gauge assembly.

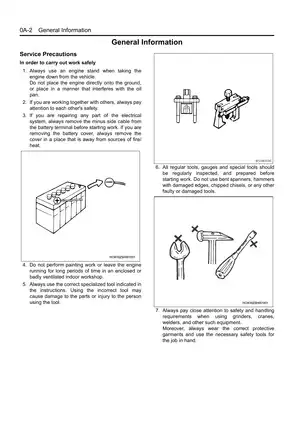

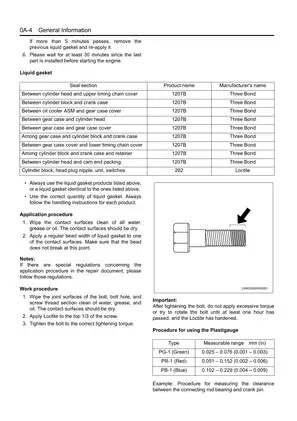

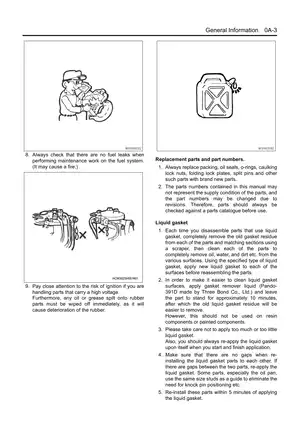

Use suitable engine supports and rated lifting equipment. Electrical isolation, common-rail cleanliness, and cooling-system pressure precautions remain necessary for the work described.

A Preview of Compression and Oil-Pressure Test Data

For the warmed-up 4JJ1, the compression section lists a standard pressure of 2.84–3.24 MPa at 200 rpm and a service limit of 1.96 MPa.

The lubrication check specifies oil pressure above 343 kPa at 2000 rpm after engine warm-up. Both sections pair their test data with the relevant inspection procedures.
