Yamaha Models Covered & Key Technical Specifications

Models & Model Codes: Grizzly 350 (YFM35GW; owner's manual), YFM400FAR (5TE1, 5TE5; base service manual), YFM350FAS (5UH1; supplementary service manual)

Model Years: 2007–2011 (2007, 2008, 2009, 2010, 2011)

Specification reference: YFM35GW owner's manual


  • Engine type: Air cooled 4-stroke, SOHC

  • Engine displacement: 348.0 cm³ (21.23 cu.in)

  • Ground clearance: 245 mm (9.6 in)

  • Basic weight (with oil and fuel): 245 kg (540 lb)

  • Maximum loading limit: 210.0 kg (463 lb)

  • Front tire size: AT25 x 8-12

  • Rear tire size: AT25 x 10-12

  • Fuel tank capacity: 13.5 L (3.57 US gal)

  • Recommended spark plug: NGK/DR8EA

  • Engine oil capacity (with filter replacement): 2.30 L (2.43 US qt)

  • Transmission: V-belt automatic

Yamaha Manual Features & Selected Content Preview

Publication Pages

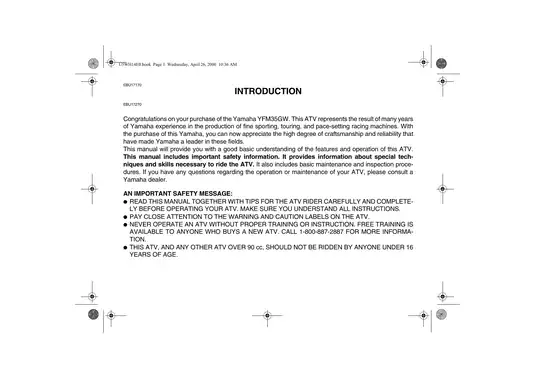

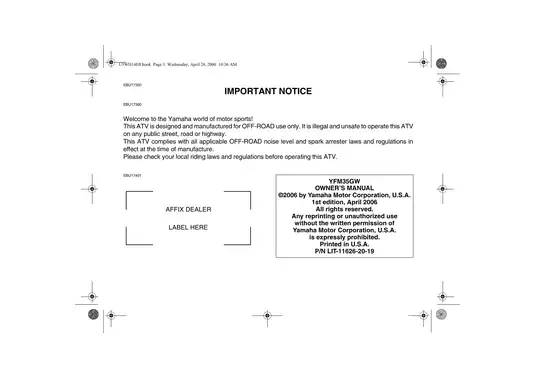

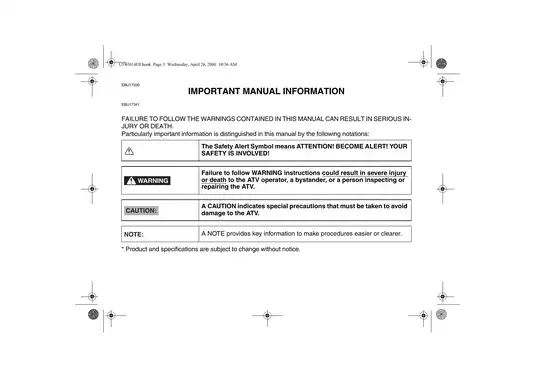

YFM35GW Owner's Manual — First edition, April 2006; P/N LIT-11626-20-19; manual no. 5WH-F8199-14 151
YFM400FAR Service Manual — First edition, April 2002; P/N LIT-11616-16-02; manual no. 5TE-F8197-10; model codes 5TE1, 5TE5 366
YFM350FAS Supplementary Service Manual — First edition, July 2003; P/N LIT-11616-17-32; manual no. 5UH-F8197-10; model code 5UH1 115

For YFM350FAS service, Yamaha directs the reader to use the supplement with the YFM400FAR base manual. The separate owner's manual covers operation and routine care.

Check the model label: The earlier workshop publications cover YFM400FAR and YFM350FAS. They are not a YFM35GW-specific service edition, so check the ATV's model label before applying their specifications or repair procedures.

PDF Files, Search and Navigation

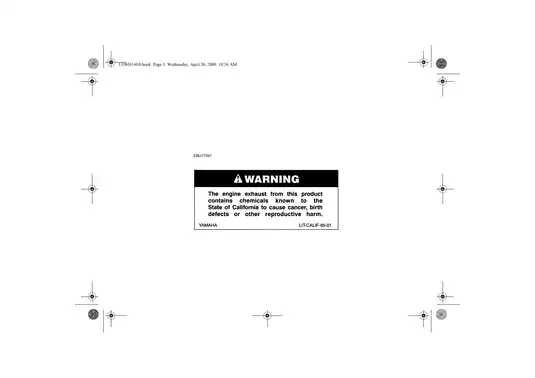

Search and diagram detail: Both PDFs have searchable main text and embedded bookmarks. Some illustrated warning labels and the final reply-card pages in the owner's file are outside text search. Small wiring-diagram labels in the service file require zooming.

The ZIP contains two printable PDFs: a 151-page owner's file and a 481-page service file. The 632-page total includes covers, the owner's three supplementary information pages and two-page safety reply card, and blank pages.


ATV Operation, Engine Repair and Driveline Service

These selected coverage highlights summarize the main work areas. Other topics include shock-absorber preload adjustment and long-term storage preparation.

  • Engine repair: Step-by-step removal and installation, cylinder-head and valve-train service, piston inspection, crankcase separation, crankshaft work, and transmission repair.

  • CVT and driveline: Primary and secondary sheave service, clutch disassembly and inspection, middle-gear shim selection, front CV joints, differential gear-lash adjustment, and rear axle/final-drive setup.

  • Brakes, steering and chassis: Hydraulic brake bleeding, master-cylinder and caliper repair, rear drum-brake service, steering-stem and knuckle work, ball-joint replacement, front-arm inspection, and swingarm service.

  • Carburetion and cooling: Carburetor disassembly, inspection and fuel-level adjustment; YFM400FAR liquid-cooling service and YFM350FAS oil-cooler procedures.

  • Electrical diagnosis: Switch-continuity tests, ignition and starting diagnosis, charging checks, lighting and signal circuits, cooling controls, 2WD/4WD selection, and model-specific wiring diagrams.

  • Owner-level coverage: Controls, pre-operation checks, cold and warm starting, reverse operation, loading, terrain-specific riding techniques, scheduled maintenance, minor repair, and starting-problem troubleshooting.

Yamaha produced the service material primarily for dealers and qualified mechanics and assumes a basic understanding of mechanical repair. The separate owner's manual is the appropriate starting point for operators handling routine inspection, maintenance, and riding questions.

Engine Procedures and Workshop Tools

Exploded assembly drawings and ordered job charts support work on the camshaft, rocker arms, valves, balancer gears, oil pump, recoil starter and A.C. magneto. The supplement supplies the air-cooled engine revisions and changed crankcase, transmission and middle-gear material, with component-specific torque data, lubrication references, wear limits and clearances.

The special-tool lists give US/Canadian numbers and 90890-series equivalents. Examples include the crankcase separating tool YU-01135-A / 90890-01135, sheave spring compressor YM-04134 / 90890-04134, and gear-lash measurement tools YM-01467 / 90890-01467 and YM-01475 / 90890-01475. Matching these tools to the job supports preparation for crankcase separation, secondary-sheave service and differential setup.

Driveline Setup and Repair Cautions

The supplement revises the CVT sheaves and clutch, front differential, rear brake and steering material. Differential coverage includes inspection, assembly replacement and lash adjustment; Yamaha cautions against disassembling the factory-assembled internal differential unit.

The middle-driven-shaft section identifies left-hand-threaded bearing retainers and warns that pressing directly on the shaft end damages its threads. During differential gear-lash measurement, overtightening the temporary holding bolt can damage the ring gear.

Brake, steering, engine, and driveline repairs can leave the ATV unsafe if assembly or adjustment is wrong, so work beyond the reader's training should be handled by a qualified technician.

Fuel, Cooling and Electrical Fault Finding

Carburetor inspection covers diaphragms, jets, passages and the needle-valve/seat pair. The YFM400FAR cooling chapter includes radiator-cap testing, thermostat checks and water-pump seal service; the YFM350FAS supplement covers oil-cooler removal and revised oil-temperature, fan-control, starter and signal-system material.

Circuit-specific test charts connect symptoms with continuity, resistance and voltage checks, helping trace faults before components are replaced. Drawings include YFM400FAR coolant-flow and 2WD/4WD selecting-system circuits, YFM350FAS oil-flow and cable-routing views, and ignition and electric-starting diagrams. Each service publication has its own full wiring diagram.

Operating Care and Maintenance Planning

The owner's manual addresses turning, uphill climbs, steep descents, crossing slopes, shallow water, rough terrain, and recovery from a slide or skid. Protective apparel, the passenger prohibition, cargo limits, parking on slopes and unauthorized modifications are also covered.

Separate emission-control and chassis maintenance charts organize scheduled work. Routine sections cover oil and filter-cartridge changes, final-gear oil, air-filter and spark-arrester cleaning, V-belt duct and case drains, spark-plug checks, throttle and idle adjustment, brake wear and fluid checks, cable and pivot lubrication, battery and fuse service, bulbs and wheels.

Examples of Valve-Clearance and Differential Data

For YFM350FAS (5UH1), the supplement specifies cold valve clearances of 0.06–0.10 mm for the intake and 0.16–0.20 mm for the exhaust. These are adjustment specifications, separate from its valve-guide and rocker-arm wear limits.

Its front differential section specifies gear lash of 0.05–0.25 mm, alongside the measurement and shim-selection procedures.
