Suzuki Katana 600 / GSX600F Service Manual, 1988–1997 (P/N 99500-35028-03E)

379 Pages • ZIP Download: Printable PDF • 56.64 MB

4.5starstarstarstarstar_half(4)
$18.60 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Suzuki Models Covered & Key Technical Specifications

Model: GSX600F

Sub-models / Variants: Base model (GSX600FJ), GSX600FK, GSX600FL, GSX600FM, GSX600FN, GSX600FP, GSX600FR, GSX600FS, GSX600FT, GSX600FV

Trade Names: Katana 600

Model Years: 1988–1997 (1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997)


  • Engine displacement: 599 cm3

  • Engine configuration: 4-cylinder, four-stroke, air-cooled, DOHC, TSCC

  • Transmission: 6-speed constant mesh

  • Cylinder bore: 62.6 mm

  • Piston stroke: 48.7 mm

  • Compression ratio: 11.3:1

  • Fuel tank capacity: 20.0 L (including reserve), 18.0 L (California / E-33, including reserve)

  • Engine oil capacity: 3.8 L (with filter change)

  • Ignition system: Transistorized

  • Ignition timing: Below 1500 rpm: 13° B.T.D.C. (GSX600FJ–GSX600FS, except California), 7° B.T.D.C. (California GSX600FJ–GSX600FP), 4° B.T.D.C. (California GSX600FR–GSX600FS)

  • Drive chain: DAIDO D.I.D. 50VA2, 112 links

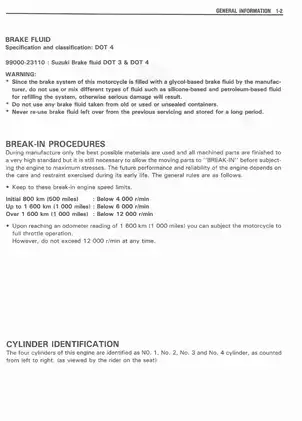

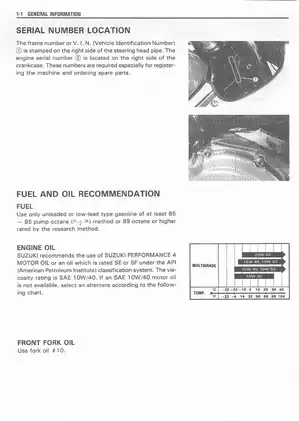

Suzuki Manual Features & Selected Content Preview

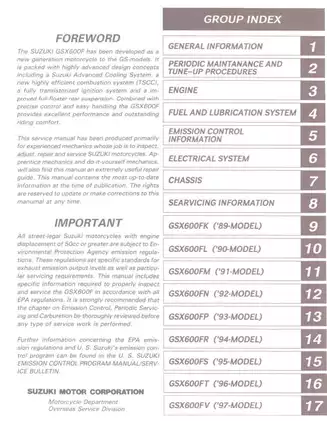

Suzuki’s factory service manual (P/N 99500-35028-03E) covers the 1988–1997 Katana 600 (GSX600F). It combines the GSX600FJ base chapters with GSX600FK through GSX600FV supplements that document changes to parts, procedures, and service specifications.

Printable PDF and On-Screen Navigation

Text search and diagram labels: The PDF has searchable text and embedded chapter and model-year bookmarks. The main supplement bookmark opens the chassis chapter, while the individual supplement bookmarks lead to their respective sections. Small wire codes require zooming, and some labels in the base-model and GSX600FK diagrams remain hard to distinguish when enlarged.

The ZIP contains one printable PDF with 379 pages, including the original cover and four repeated pages. Printed pages 3-43, 5-1, 6-15, 9-3, and 10-12 are absent from the PDF.


Engine, Carburetor, and Chassis Service

This selection of workshop topics highlights the main repair and diagnostic sections. The manual also covers fuel-level sender testing and tubeless tire service.

  • Engine testing and teardown: Compression and oil-pressure checks, with step-by-step procedures for engine removal, crankcase separation, and internal inspection.

  • Clutch and transmission: Wet-clutch service, gearshift shaft assembly, and countershaft and driveshaft inspection, supported by exploded and sectional views.

  • Carburetors: Disassembly, float-height adjustment, needle-valve inspection, and vacuum balancing, with model- and market-specific carburetor specifications.

  • Electrical diagnosis: Generator output, transistorized ignition, starter motor, and starter relay tests, with wiring diagrams that include a California-model schematic.

  • Brakes and suspension: Caliper and master-cylinder repair, hydraulic bleeding, front fork overhaul, steering-bearing adjustment, and full-floating rear suspension service.

Suzuki wrote this manual primarily for experienced mechanics and also identifies apprentice mechanics and DIY owners as readers.

Engine Internals and Model-Year Changes

The engine chapters cover cylinder-head inspection, valve timing, piston-ring clearances, valve-guide replacement, and valve-seat cutting. Bearing-selection tables match crankshaft journal and connecting-rod markings to the correct bearing shells during an overhaul. Uneven tightening of the camshaft journal holders can damage the cylinder head or the holders’ thrust surfaces.

The 1992 GSX600FN supplement introduces shim-type tappets, revised clutch components, and spur primary-drive gears in place of helical gears. The 1996 GSX600FT supplement covers the switch from a roller to a silent cam chain, revised sprockets, and updated cam-timing illustrations. Spark plug tables distinguish earlier NGK DR8ES applications from the NGK CR9EK and ND U27ETR listings for 1996–1997.

Engine work involves high-voltage ignition components and heavy assemblies. Follow shop safety procedures and use protective equipment during teardown.

Carburetor Variants, Oil Cooling, and California Emissions

The fuel-system chapter explains the vacuum-operated fuel cock and the carburetors’ slow, main, starter, and float circuits. The base procedures are illustrated on the Mikuni BST31SS. Later supplements show the BST33SS construction and identify carburetor and jetting differences by model and market. The 1995 GSX600FS supplement adds pilot-screw removal and installation.

The Suzuki Advanced Cooling System (SACS) is shown in the Engine Lubrication System Chart and Cylinder Head Cooling System Chart. These trace the separate oil paths and put the oil cooler, pressure regulator, and cooler bypass valve in context.

The California evaporative-emissions diagram identifies the canister, fuel-vapor separator, roll-over valve, and vacuum control valve for the purge circuit. Air-suction and hose-routing drawings show the reed valves and air switching valve.

Charging and Ignition Faults

Charging tests separate a low-output reading from faults in the generator’s rotor, stator, brushes, rectifier, or integral IC regulator. Clamping the generator damper housing in a vise can break the housing.

Ignition checks distinguish signal-generator, ignition-coil, and ignitor faults. The 1996 supplement identifies digital ignitor checker 09931-94490 and extension lead 09931-61740. Symptom, cause, and remedy charts also cover no-start conditions, clutch drag, gears jumping out, steering problems, and brake faults.

Fork Setup and Chassis Wear Limits

Fork service shows how the oil level is checked with Suzuki gauge 09943-74111. The 1997 GSX600FV supplement gives revised rebound settings for solo and two-up riding. Rear suspension procedures cover the swingarm, cushion lever and linkage bearings, shock inspection, and spring preload.

Workshop tables give component-specific torque values, fluid capacities and viscosities, front and rear brake disc wear limits, and separate tire pressures for solo and two-up riding.

Tappet Clearance and Oil Pressure Examples

For the GSX600FN, the cold tappet clearance is 0.10–0.20 mm on the intake side and 0.15–0.25 mm on the exhaust side. Separate intake and exhaust shim tables use the measured clearance and the existing shim thickness to guide replacement shim selection.

The GSX600FJ base engine chapter specifies oil pressure above 300 kPa and below 600 kPa at 3,000 rpm with the oil at 60°C (140°F). The pressure-check section ties out-of-range readings to possible faults in the filter, oil passages, or pump.
