Suzuki GSX1100 / GS1150 Service Manual, 1980–1987 (P/N 99500-39032-01E)

Suzuki’s GSX1100/GS1150 service manual, P/N 99500-39032-01E, covers the GSX1100E, GSX1100ES and GSX1100EF, with GS1150E and GS1150EF identified as Canadian designations. This fourth edition dates from October 1995; the first edition was published in January 1984.

PDF Search, Wiring Detail and Included Pages

Search and diagram access: PDF text search is unavailable, and there are no embedded bookmarks. Small wire-color codes and component labels on the checked wiring diagrams are readable when enlarged; the sideways diagrams also benefit from page rotation.

The ZIP download contains one printable, 306-page PDF in English and a short model-application TXT file. The total includes four opening pages, 44 pages of model-specific sections, a two-page ignition-coil appendix, the publication page and the back cover. Some market wiring diagrams have German or Italian labels.

Engine Overhaul, Carburetor Service and Electrical Diagnosis

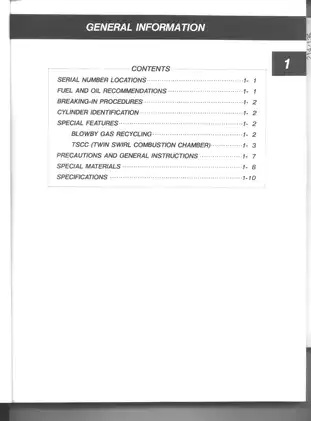

These selected coverage highlights outline the main repair areas. Other topics include battery servicing and drive-chain inspection; this is not the complete contents list.

• Engine repair: Step-by-step procedures cover engine removal, teardown and reassembly, cylinder-head servicing, cam-chain work, piston inspection, clutch repair and internal transmission service.

• Fuel and lubrication: Vacuum fuel-cock operation, carburetor disassembly, float and needle-valve inspection, synchronization, lubrication flow and oil-pressure testing.

• Electrical diagnosis: Ignition, charging and starter tests, instrument and sensor checks, monitor-system inspection, switch continuity and self-canceling turn-signal diagnosis.

• Brakes and chassis: Caliper and master-cylinder repair, hydraulic bleeding, wheel-bearing replacement, tubeless tire service, Posi-Damp forks, steering bearings and Full-Floating rear suspension.

• Workshop references: Market wiring diagrams, cable and hose routing, maintenance charts, component torque tables, special-tool identification, fluid specifications and inspection limits.

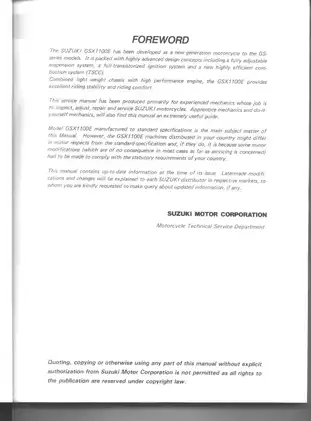

Suzuki wrote this manual primarily for experienced mechanics, while also addressing apprentice and do-it-yourself mechanics; the overhaul work calls for practical shop knowledge and precision measuring equipment.

Model Sections and Regional Differences

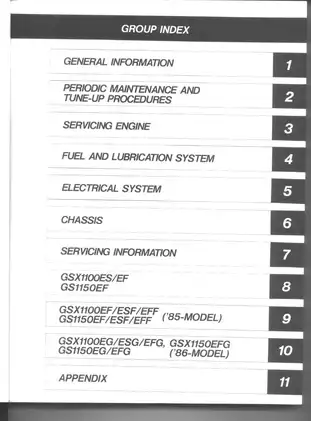

Section 8 documents the GSX1100ES/EF and GS1150EF differences from the main model, including cowling removal and installation, revised routing and suspension settings. It directs readers back to Sections 1–7 for procedures that remain the same.

The sections marked ’85-MODEL and ’86-MODEL provide variant-specific service-data tables rather than separate, repeated overhaul instructions. The latter also lists GSX1150EFG. Matching the variant and market columns helps distinguish the applicable carburetor, electrical and chassis specifications before selecting settings or parts.

Cylinder-Head and Driveline Repair

The TSCC (Twin Swirl Combustion Chamber) engine chapters extend beyond routine maintenance. Cylinder-head material covers valve-guide replacement and reaming, valve-seat cutting and contact assessment, spring testing and camshaft-journal measurement.

Cylinder and piston inspection includes bore evaluation, oversize selection, ring-groove and end-gap checks, connecting-rod measurements and crankshaft runout. Reassembly illustrations address bearing locating pins and C-rings, piston and ring orientation, cam timing and automatic tensioner operation.

The driveline material explains primary driven-gear shim selection, clutch-stack arrangement, shift-fork positioning and transmission bearing and circlip orientation. These references support decisions about component reuse and correct assembly during an overhaul.

Fuel Circuits and Electrical Fault Tracing

Carburetor illustrations explain the diaphragm, slow, main, starter and float circuits alongside internal service and final adjustment. The vacuum fuel-cock description links fuel delivery to the carburetor vacuum supply.

Diagnostic references include the transistorized ignition circuit, regulator/rectifier charging schematics, lubrication-flow diagram, monitor-system circuit and self-canceling turn-signal diagnostic chart, alongside the market-specific wiring diagrams.

Tests distinguish the ignition coils, signal generator and ignitor, alternator and regulator/rectifier, starter motor and relay, gauges, sensors and switches. The appendix adds an alternative ignition-coil inspection method using an electro tester.

Workshop Tools and Repair Limits

Listed Suzuki tools include carburetor balancer 09913-13121, valve-seat cutter set 09916-21110, rotor remover 09930-34930 and fork oil-level gauge 09943-74111.

The camshaft-holder precautions explain how uneven tightening can damage the head or holder thrust surfaces. Valve-guide servicing also warns that installation into an unoiled bore can damage the guide or cylinder head.

The oil pump, Posi-Damp unit and rear shock absorber are handled as replacement assemblies rather than internal rebuild projects. Use secure lifting support during engine removal, keep ignition sources away from gasoline and battery work, and follow the factory precautions for brake-fluid handling and tire inflation.

Selected Cylinder-Head and Primary-Drive Measurements

Cylinder-head inspection specifies a standard intake and exhaust valve-seat contact width of 0.9–1.1 mm. The assembled camshaft-journal clearance has a service limit of 0.150 mm, assessed with Plastigauge.

The primary-drive section specifies 0.03–0.08 mm as the standard primary driven-gear thrust clearance. Its shim-size chart accompanies the clearance check required when the associated components are replaced.
