Mazda CX-5 2012–2013 Workshop & Bodyshop Manual Set (P/N 9999-95-033B-13)

8,933 Pages • ZIP Download: 15 Printable PDFs + 1 Unreadable PDF • 205.68 MB

4.5starstarstarstarstar_half(4)
$19.90 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Mazda Models Covered & Key Technical Specifications

Model & Model Code: CX-5 (KE)

Model Years: 2012–2013

Sub-models / Variants: 2WD (FW6A-EL six-speed automatic), 4WD/AWD (FW6AX-EL six-speed automatic); C66M-R six-speed manual configuration. Engine: SKYACTIV-G 2.0.

VIN Variant Identification: Position 6: 2 = 2WD, 4 = 4WD. Position 8: 7 = SKYACTIV-G 2.0 for Mexico, E = SKYACTIV-G 2.0 for USA/Canada.

Serial Numbers: JM3 KE2A7*D# 100001—, JM3 KE2AE*D# 100001—, JM3 KE2B7*D# 100001—, JM3 KE2BE*D# 100001—, JM3 KE2C7*D# 100001—, JM3 KE2CE*D# 100001—, JM3 KE2D7*D# 100001—, JM3 KE2DE*D# 100001—, JM3 KE2E7*D# 100001—, JM3 KE2EE*D# 100001—, JM3 KE2W7*D# 100001—, JM3 KE2WE*D# 100001—, JM3 KE4A7*D# 100001—, JM3 KE4AE*D# 100001—, JM3 KE4B7*D# 100001—, JM3 KE4BE*D# 100001—, JM3 KE4C7*D# 100001—, JM3 KE4CE*D# 100001—, JM3 KE4D7*D# 100001—, JM3 KE4DE*D# 100001—, JM3 KE4E7*D# 100001—, JM3 KE4EE*D# 100001—, JM3 KE4W7*D# 100001—, JM3 KE4WE*D# 100001—

Diagnostic / Shift-Point Serial Breaks: JM3 KE2*E*D# 100001—148106 and JM3 KE2*E*D# 148107—, identified in the manual as “Applied VIN (assumed)” for specific engine diagnostic criteria and automatic-transaxle shift-point data.


  • Welding electrode tip shape formula: D = (2xt) + 3

  • Panel thickness for arc welding holes: 0.60–4.50 mm

  • High-tensile steel structural strength: 590 MPa to 980 MPa

Mazda Manual Features & Selected Content Preview

Publication Pages
2013 Mazda CX-5 Workshop Manual sections — English, KE, SKYACTIV-G 2.0, 2WD/AWD; P/N 9999-95-033B-13 6,250

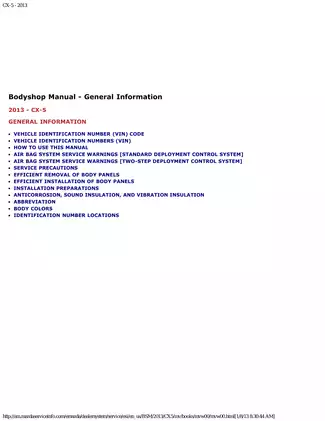

2013 Mazda CX-5 Bodyshop Manual — structural panel replacement and body-dimension references 260
2013 Mazda CX-5 Service Highlights — system construction and operation; P/N 9999-95-105F-13 1,869
2013 Mazda CX-5 Wiring Diagram — Body/Accessories selection with legacy embedded graphics; P/N 9999-95-076G-13 554

The workshop sections provide service procedures and diagnostic tests, while Service Highlights explains the systems behind those tests. The Bodyshop Manual adds structural repair information for collision work.

Engine repair scope: The engine’s “Disassembly/Assembly” section covers external components and brackets; it should not be mistaken for a complete crankshaft-and-piston overhaul procedure.

PDF Search, Bookmarks, and Diagram Limitations

Text and diagram access: The openable files contain searchable text and embedded PDF bookmarks. Labels inside diagram images are not necessarily searchable; small labels in the static workshop wiring diagrams are readable when enlarged. In the standalone Wiring Diagram file, Flash-based schematic and connector graphics appear blank or gray in standard PDF rendering. The additional “Wiring Diagram General Info.pdf” file is damaged and cannot be opened.

The ZIP contains 16 PDF files: 15 openable PDFs totaling 8,933 pages, plus the damaged file. The workshop material is divided into 12 subject PDFs; the other three listed publications each occupy one PDF. Opening contents, index, and navigation pages are already included in the page totals.


Powertrain, Chassis, and Collision Repair

The following selected coverage highlights are not a complete contents list. Further topics include scheduled maintenance and polypropylene bumper repair.

  • Engine diagnosis and service: SKYACTIV-G 2.0 fault isolation, compression inspection, timing-chain replacement, variable valve timing, cylinder-head gasket replacement, and fuel, lubrication, and cooling-system work.

  • Transmission and AWD: Manual-clutch service, automatic-transaxle testing and removal, valve-body replacement, initial learning, differential repair, transfer service, and coupling calibration.

  • Brakes and chassis: Disc-brake and caliper service, hydraulic bleeding, DSC diagnosis, wheel alignment, suspension replacement, wheel-hub work, and electric power steering tests.

  • Heating and air conditioning: Manual and fully automatic HVAC diagnosis, refrigerant pressure and performance tests, compressor service, and actuator and sensor inspection.

  • Structural panel replacement: Full and partial front side-frame repair, wheel-apron and cowl reinforcements, torque box, pillars, side sill, rear quarter structure, floors, rear side frame, and roof.

  • Body and accessory repair: Removal, installation, inspection, adjustment, and initialization procedures for closures, glass, window regulators, mirrors, seats, sunroof, trim, lighting, and wiper/washer systems.

  • Electronic diagnosis and setup: System wiring diagrams, DTC tables, M-MDS self-tests, PID/data monitoring, active commands, CAN fault tracing, module configuration, and restraint-system diagnosis.

Suited to experienced automotive and collision-repair technicians with access to the diagnostic equipment, measuring tools, and specialist shop equipment required for the work.

Engine and Transaxle Diagnostic Depth

Step-by-step procedures address timing-chain removal and installation, cylinder-head gasket replacement, engine removal, and high-pressure fuel-system component service. Electrical checks extend to PCM configuration, starting and charging systems, ignition components, and sensor circuits.

The automatic-transaxle material includes line-pressure and stall tests, road-test charts, ATF inspection and adjustment, TCM configuration, and initial learning. The manual-transaxle sections cover clutch hydraulics, clutch-unit inspection, transaxle removal, seals, and shift controls.

VIN-specific diagnostic criteria and shift-point charts distinguish the serial ranges shown in the model box. These distinctions help select the applicable test data before evaluating a fault.

Brakes, Suspension, HVAC, and Restraints

Chassis procedures distinguish 2WD and AWD rear suspension and hub arrangements. AWD coverage extends to rear-differential disassembly and assembly, propeller shafts, transfer components, control-module configuration, and coupling calibration-data writing.

Brake information includes ABS wheel-speed sensor tests and DSC sensor initialization. HVAC sections separate manual and fully automatic systems, with refrigerant recovery, charging, pressure checks, and performance testing.

Restraint diagnosis covers standard and two-step deployment control systems, SAS configuration, seat-weight sensor calibration, and seat-belt components.

Structural Panels and Body Measurements

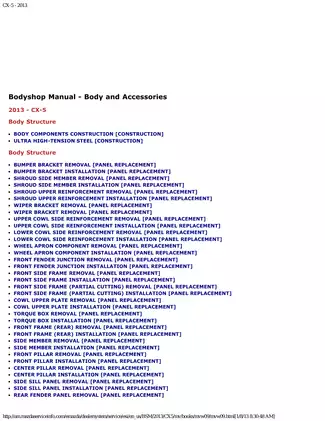

The Bodyshop Manual covers 29 structural panel groups. Front-end work includes bumper brackets, shroud members, wiper brackets, cowl-side reinforcements, wheel-apron components, front fender junctions, and the torque box.

Panel chapters identify joint locations and welding methods through Mazda’s symbol system. Spot, arc/plug, continuous cut-and-join, and brazed joints are documented with weld counts or joint lengths.

Installation preparation covers dimensional checks, trial welds, weld-strength verification, weld-through primer, body sealer, undercoating, corrosion protection, and restoration of sound- and vibration-insulating material.

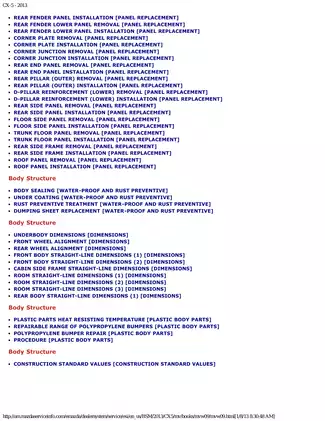

Body-construction charts identify steel type and panel gauge; the ultra high-tension steel section maps 34 structural parts, including the upper center-pillar reinforcement. That mapping matters when selecting a pulling, drilling, or welding approach.

Repair cautions: Pulling a damaged ultra high-tension member can distort adjacent structure. The panel-removal notes also address hidden pipes, hoses, and wiring vulnerable to damage during cutting work.

Glass, Interior, Lighting, and Accessories

Glass coverage includes windshield, rear-window, door-glass, and quarter-glass work, plus rear-defroster filament inspection and repair. Seat information extends to frames, adjusters, motors, and warmers; sunroof procedures address the glass, unit, drains, motor, adjustment, and initialization.

Interior and exterior trim work includes the dashboard, headliner, pillar trim, carpet, moldings, spoilers, undercovers, and roof-carrier brackets.

Lighting chapters distinguish halogen and discharge headlamps, Adaptive Front Lighting System components, aiming, and auto-leveling initialization. Wiper/washer sections cover motors, linkages, arms, nozzles, pumps, hoses, rain-sensor service, and personalization.

Audio, navigation, Bluetooth hands-free, Sirius, GPS antenna, speakers, amplifier, USB/AUX inputs, and the rear-mount camera have dedicated service or inspection information.

Module Setup, Calibration, and Reference Drawings

Advanced keyless entry, the Start Stop Unit, immobilizer, AFS, audio, Bluetooth, instrument cluster, Blind Spot Monitoring, and the front and rear body control modules have dedicated diagnostic material. Replacement support includes read/write or As-Built configuration, remote-transmitter ID registration, immobilizer-related programming, and personalization.

Named references include Underbody Dimensions, Front Body Straight-Line Dimensions, Cabin Side Frame Straight-Line Dimensions, the Power Window System Wiring Diagram, and the Blind Spot Monitoring On-Board Diagnostic Wiring Diagram. Construction-standard views provide panel-gap and flushness references for final fit checks.

The BSM radar-test information specifies reflector 49 L067 001, tripod 49 L067 002, and plumb-bob tools 49 L067 003 and 49 L067 006. Radar testing is required after replacement of a BSM module, bracket, or rear bumper; incorrect aiming can compromise approaching-vehicle detection.

Structural welding, airbag-area work, and driver-assistance calibration affect crash protection and system performance. Mazda’s warnings and the specified frame, welding, scan, and aiming equipment must be followed.

A Preview of Compression and OCV Test Data

For the SKYACTIV-G 2.0 at normal operating temperature, the compression inspection specifies a standard pressure of 885 kPa at 300 rpm, a minimum of 708 kPa at the same speed, and a maximum cylinder-to-cylinder difference of 150 kPa.

The oil control valve inspection specifies a coil resistance of 6.9–7.5 ohms at 20°C. These examples show the component-specific test conditions and limits included alongside the diagnostic procedures.
