2002–2003 Suzuki DF15A/DF20A Outboard Service Manual PDF (PN 99500-89L00-01E)

This Suzuki service manual covers DF15A and DF20A outboards, including the DF15AE and DF20AE electric-start models. Publication 99500-89L00-01E covers maintenance, fault diagnosis, and repair of the powerhead, mid unit, and right-hand-rotation lower unit.

• Engine repair: Power unit removal and installation, cylinder-head service, piston and crankshaft inspection, valve-clearance adjustment, and timing belt replacement.

• EFI and engine control: Self-diagnostic code troubleshooting, sensor and injector testing, fuel-pressure checks, and idle air control diagnosis.

• Cooling and lubrication: Water pump and impeller service, thermostat testing, oil pump disassembly, and oil-pressure diagnosis.

• Starting and charging: Electric starter overhaul, recoil starter repair, neutral-start interlock adjustment, and charging-system tests.

• Lower unit and brackets: Gearcase teardown, shaft seal replacement, gear shimming, and clamp, swivel, and steering bracket service.

• Electrical references: Separate wiring diagrams for manual- and electric-start models, ECM connector layouts, circuit-voltage tables, and component resistance specifications.

This manual is suited to technicians familiar with outboard service and equipped for electrical testing, precision measurement, and the specified Suzuki diagnostic procedures.

Powerhead Repair and Routine Service

The mechanical sections explain the drive from the crankshaft and timing pulley to the camshaft. Cylinder-head work includes valve-guide replacement and valve-seat servicing; crankshaft inspection includes main-bearing oil-clearance checks with Plastigauge.

Cylinder compression and oil-pressure tests provide references for assessing engine condition. The manual identifies these pressure figures as guidelines rather than absolute service limits.

The Periodic Maintenance Schedule Chart organizes routine service. The Engine Oil Lubrication Chart and Cooling Water Circulation Chart map the passages covered by oil-pump, thermostat, water-pump, and water-tube service.

The timing-belt section warns that independently rotating the cam pulley or crankshaft with the belt removed can cause piston-to-valve contact and damage. Maintenance cautions also identify water-pump impeller damage as a risk of turning the engine counterclockwise.

EFI, Intake Components, and Fault Diagnosis

Diagnostic charts address CKP, CMP, MAP, IAT, TPS, cylinder-temperature sensor, and injector faults. Troubleshooting also covers unstable idling or trolling when no self-diagnostic code is displayed.

Separate versions of the ECM Input/Output Circuit Diagram and circuit-voltage tables distinguish manual- and electric-start power supplies. This distinction helps technicians select the correct circuit reference before testing an engine with a different starting configuration.

Circuit-check procedures identify the 26-pin test cord 09930-88940 and ECM power source cable 09933-08910. Suzuki Diagnostic System references include SDS Ver.7, while the Fuel Injection Timing Chart relates sensor signals to sequential injector operation.

Air intake silencer, intake manifold, and throttle body removal are documented. The throttle body is a factory-adjusted assembly: its TPS, throttle valve, and throttle stop screw are not treated as routine service adjustments.

The fuel vapor separator and both the low- and high-pressure fuel pumps are non-repairable assemblies. Their sections cover inspection and replacement rather than internal rebuilding.

Starting and Charging Systems

Electric starter service includes armature and commutator inspection, brush wear limits, magnetic-switch tests, and starter motor relay specifications. Recoil starter coverage extends to the rope, spring, ratchet, and neutral-start interlock cable.

Charging data distinguishes coil output and resistance by starting configuration, alongside rectifier/regulator and battery-relay checks. Digital CDI diagnosis includes ignition-coil resistance and primary peak-voltage testing.

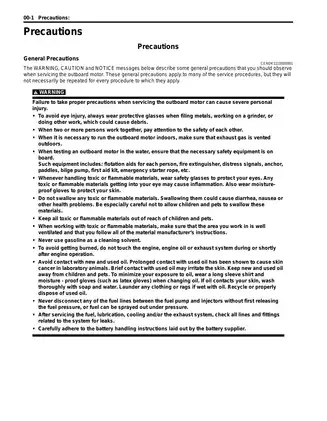

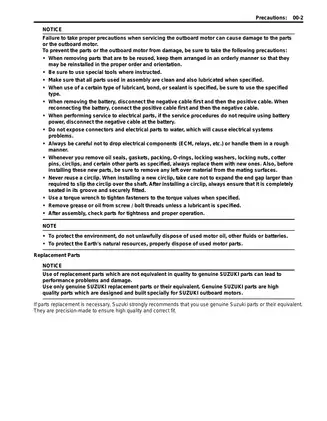

For marine electrical work, follow the manual’s isolation precautions and each test’s power-supply requirements.

Gearcase, Mounts, and Steering Hardware

Lower unit procedures cover the propeller shaft, driveshaft seals, clutch dog components, and gearcase leakage checks. Forward and reverse gear shimming is supported by tooth-contact illustrations and propeller-shaft thrust-play measurements.

Mid unit work extends to the engine holder, driveshaft housing, mounts, tiller handle, and steering friction adjuster. The Wiring Harness Routing Diagram and fuel/water hose routing views show the installation paths used during reassembly.

A Closer Look at Valve, IAC, and Gearcase Specifications

For the covered models, intake and exhaust valve clearance is specified at 0.18–0.22 mm with the engine cold. The valve-adjustment section pairs this specification with the relevant inspection and adjustment procedures.

Electrical service data lists IAC valve resistance at 31–42 Ω at 20°C. In the lower unit section, propeller-shaft thrust play is approximately 0.2–0.4 mm after gear-position adjustment, with the measurement supported by a gear-adjusting gauge illustration.

Searchable Text, Chapter Bookmarks, and PDF Contents

Navigation and wiring detail: Technical text is searchable, and embedded bookmarks link to the main sections and technical chapters. Small wire-color codes and connector labels in the full wiring diagrams require zooming for comfortable reading.

Supplied as one printable English PDF with 306 pages, including one publication-information page, one back cover, and three pages containing only section headers.
