1985–1986 Yamaha Maxim XJ700 Service Manual (P/N LIT-11616-XJ-72)
268 Pages • 48.62 MB • Printable PDFs (ZIP Download)
Yamaha Models Covered & Key Technical Specifications
Models: XJ700, XJ700N, XJ700NC, XJ700S, XJ700SC
Sub-models / Variants: XJ700N, XJ700NC (Canada/Non-California models), XJ700S, XJ700SC (California models)
Model Years: 1984–1985 (1st Edition June/December 1985)
Serial Numbers: 1NH-000101, 1NK-000101, 1FJ-000101, 1JJ-000101
Technical Data:
-
Engine: Air-cooled 4-stroke, DOHC 4-cylinder parallel, 696 cm3 displacement
-
Compression Ratio: 9.5:1
-
Idle Speed: 1,050 ± 50 r/min
-
Transmission: Constant-mesh 5-speed, shaft drive
-
Front Suspension: Telescopic fork, 150 mm travel
-
Rear Suspension: Swingarm, 70 mm shock absorber travel
-
Ignition: T.C.I. (Transistor Controlled Ignition)
-
Tire Pressure (High Speed): 206 kPa front, 226 kPa rear
Yamaha Manual Features & Content Preview
- Covers the 1985–1986 Yamaha XJ700N, XJ700NC, XJ700S, and XJ700SC, separating California NC/SC emissions equipment from non-California N/S models and identifying the 1NH/1NK S/SC builds.
- Includes a 268-page combined service-manual PDF with the N/NC base publication and the S/SC supplement, plus a separate 51-page XJ700N/XJ700NC owner’s-manual PDF.
- Covers engine removal, complete top- and bottom-end disassembly, cylinder-head and valve repair, camshaft and timing-chain setup, piston and crankshaft inspection, clutch and transmission service, and middle-drive overhaul.
- Details carburetor removal and overhaul, float-height and fuel-level adjustment, Y.I.C.S. synchronization, ignition-timing and compression checks, plus California canister and emissions-control maintenance.
- Includes front and rear wheel service, brake-caliper and master-cylinder repair, hydraulic bleeding, fork and steering-head work, swingarm and rear-shock service, and shaft/final-drive gear-lash setup.
- Provides wiring and component-location diagrams, starting/charging/ignition/lighting/signal troubleshooting charts, carburetor section views, exploded assemblies, lubrication diagrams, cable routing, torque tables, wear limits, and electrical test data.
- Lists Yamaha special tools and part numbers for valve adjustment, carburetor synchronization, clutch and generator work, shaft-drive measurement, front-fork service, steering, and electrical diagnosis.
Publication Structure and Model Coverage

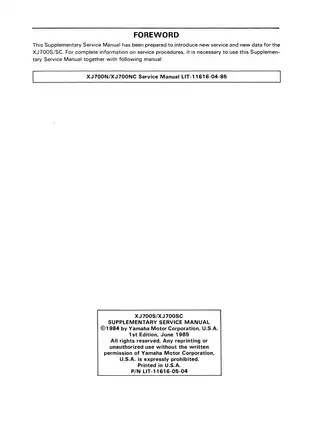

The service PDF is a combined Yamaha publication set under cover number LIT-11616-XJ-72. It contains the XJ700N/XJ700NC Supplementary Service Manual, P/N LIT-11616-04-85, first edition December 1984, and the XJ700S/XJ700SC Supplementary Service Manual, P/N LIT-11616-05-04, first edition June 1985. Yamaha states that the S/SC supplement must be used together with the N/NC manual. The N/NC book supplies the full engine, carburetion, chassis, and electrical repair procedures; the S/SC section adds revised identification, periodic and emissions maintenance, ignition-timing information, signal-system and fuel-warning diagnosis, specifications, and model-specific torque data.

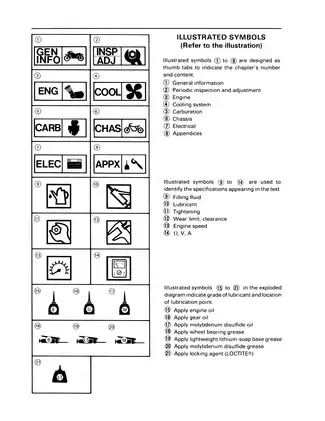

The N and S versions are identified as non-California models, while the NC and SC versions carry the California emissions equipment. The S/SC identification pages specify the 1NH and 1NK engine series, and the N/NC publication contains its own VIN and engine-number identification tables. Because the XJ700 uses an air-cooled DOHC four-cylinder engine, there is no separate cooling-system repair chapter. The main divisions are General Information, Periodic Inspections and Adjustments, Engine Overhaul, Carburetion, Chassis, Electrical, and Appendices. The separately included XJ700N/XJ700NC Owner’s Manual, P/N LIT-11626-04-85, covers operating controls, pre-operation checks, routine maintenance, specifications, and a wiring diagram; its model scope is N/NC only.
Manual Content and Chapter Walkthrough
Periodic service coverage goes well beyond an interval chart. It includes valve-clearance inspection and pad selection, spark plugs, the California canister, crankcase ventilation, intake and exhaust checks, idle adjustment, Y.I.C.S. carburetor synchronization, oil and filter service, clutch adjustment, ignition timing, compression testing, final-gear oil, brake inspection and adjustment, wheel bearings, fork oil, steering-head adjustment, battery service, headlight aiming, and fuse diagnosis.
The Engine Overhaul chapter starts with complete engine removal and follows the assemblies through cylinder-head and valve work, valve guides and seats, camshafts and cam chain, cylinders, pistons and rings, clutch, oil pump, crankshaft and connecting rods, transmission shafts, gears, shift forks, and final reassembly and adjustment. A separate middle-gear section covers damper disassembly, bearing work, gear-lash measurement, shim selection, and assembly. Carburetion includes an exploded view, a section view of the main metering system, removal, disassembly, inspection, assembly, float-height adjustment, fuel-level adjustment, and installation.
Chassis repair covers front and rear wheels, bearing replacement, rear drum components, front brake pads, calipers, master cylinder, bleeding, front-fork teardown and assembly, steering-head bearings, swingarm and shock absorbers, drive shaft, and final drive. The shaft-drive section adds symptom-based troubleshooting, oil-leak checks, gear-lash measurement, ring-gear positioning, thrust-clearance and shim selection, and final-drive disassembly.
Electrical diagnosis is organized by system rather than left to one schematic. Key references include the XJ700N/NC wiring diagram, electric-starting circuit-operation drawing and troubleshooting chart, charging-system circuit and voltage-check chart, ignition-system circuit and fault-isolation chart, lighting-system test charts, and signal-system diagrams for the self-canceling turn signals, oil-level light, fuel-warning light, horn, and switches. Lubrication and cable-routing drawings complete the appendix.
Technical Data and Specifications
The special-tool section identifies the Y.I.C.S. shutoff tool YM-08025 and vacuum gauge YU-08030 for synchronization, tappet adjusting tool YM-01245, universal clutch holder YM-91042, middle-drive pinion holder YM-33222, dial gauge YU-03097, and fork-damper holder set YM-01326/YM-33298. Specification sections provide component-specific torque tables, lubrication and capacity data, inspection limits, bearing and shim information, carburetor adjustment data, crankcase tightening sequences, and electrical test values.
Several manual-specific cautions matter during repair. The oil-pump drive sprocket tabs must engage the clutch-housing grooves before the clutch-boss nut is tightened, or the tabs can be damaged. Crankcase sealant must be kept away from the oil-gallery O-ring and crankshaft bearings, and the oil-ring expander ends must not overlap. The final-drive diagnosis also warns that too little gear lash after reassembly can produce a speed-related whine and damage the gear teeth.
Engine removal, fuel-system work, brake service, and battery maintenance involve heavy components and hazardous fluids. Support the motorcycle securely, isolate electrical power, keep ignition sources away from fuel, and use eye and hand protection suited to brake fluid, battery electrolyte, oil, and cleaning solvents.
