Kawasaki MULE 4010 TRANS4x4 Diesel UTV (2009–2012) Assembly & Preparation Manual (P/N 99931-1497-03)
64 Pages • 1 Printable PDF (English) • Download
Kawasaki Models Covered & Key Technical Specifications
Models & Model Codes: MULE 4010 TRANS4x4 Diesel (KAF950G9, KAF950GA, KAF950HA, KAF950GB, KAF950HB, KAF950GC)
Sub-models / Variants: Canadian label references (KAF950G9F, KAF950GAF)
Model Years: 2009–2012 (2009, 2010, 2011, 2012)
-
Steering wheel nut torque: 52 Nm (38 ft-lbs)
-
Engine oil drain plug torque: 34 Nm (25 ft-lbs)
-
Transmission oil capacity: 2.5 L (2.6 US qt)
-
Transmission oil drain plug torque: 15 Nm (11 ft-lbs)
-
Front final gear case oil drain plug torque: 20 Nm (14 ft-lbs)
-
Battery capacity: 12 V 52 Ah
-
Battery electrolyte capacity (722 FMF battery on applicable Canadian and European models): 4.25 L
-
Battery specific gravity (722 FMF battery on applicable Canadian and European models): 1.265 at 20°C (68°F)
-
Throttle pedal free play: 5–10 mm (0.2–0.4 in.)
-
Idle speed (engine warmed up): 900 ± 50 rpm
-
Tire air pressure (front, cold): 97 kPa (14 psi)
-
Tire air pressure (rear, cold): 167 kPa (24 psi)
Kawasaki Manual Features & Selected Content Preview

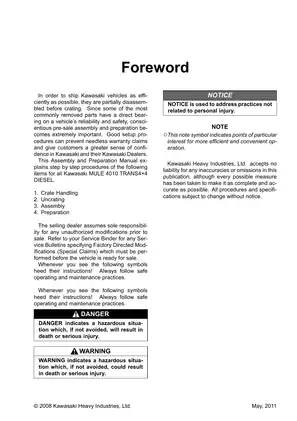

Kawasaki's Assembly & Preparation Manual covers dealer setup of the 2009–2012 MULE 4010 TRANS4x4 Diesel before retail delivery. This is the May 2011 edition, P/N 99931-1497-03.
Searchable Text and PDF Page Count
Text search and navigation — The main text and tables support PDF search. Some callouts are part of the illustrations, and the file has no embedded bookmarks.
The download contains one printable English-language PDF with 64 pages. That total includes 60 numbered pages, three of them intentionally blank, plus the front and back covers and two unnumbered blank pages.

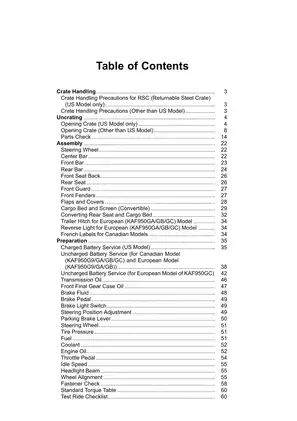

Uncrating, Assembly, and Pre-Delivery Checks
These selected topics show the dealer setup covered in the manual. Other examples include belt converter filter duct installation and diesel fuel requirements.

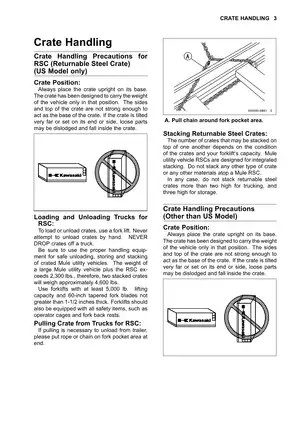

- Crate handling and parts checks — US and non-US uncrating procedures, tie-down illustrations, and illustrated parts inventories with fastener dimensions and part numbers.
- Chassis assembly — Installation of the steering wheel, center bar, front bar, rear bar, front seat back, rear seat, and front guard.
- Cargo bed and bodywork — Convertible cargo bed and screen installation, rear-seat conversion, latch adjustment, and fitting of the front fenders, flaps, and covers.
- Battery preparation — Charge checks for the sealed US battery and activation of the conventional Canadian and European battery, with charging tables and cable routing illustrations.
- Fluids and engine controls — Engine, transmission, and front final gear case oil checks, coolant inspection, throttle pedal free-play and stop adjustment, and idle-speed inspection.
- Brakes, steering, and lighting — Brake fluid, brake pedal, and brake light switch checks, plus parking brake lever, steering position, headlight beam, and toe-in adjustments.
- Delivery checks — Illustrated fastener inspection charts, component-specific and general torque tables, and a test ride checklist for chassis, drivetrain, and electrical operation.
This manual is suited to dealership setup technicians equipped to handle crated vehicles, check fastener torque, and test batteries.
Assembly Hardware and Convertible Cargo Bed
The Parts Check tables distinguish the KAF950GC center bar, rear-seat pivot hardware, and several body-panel fasteners from those listed for the other covered models. The part numbers let technicians match the hardware to the vehicle before assembly.
Step-by-step instructions show how the rear seat and cargo bed convert between two- and four-passenger configurations. The screen stopper-pin views and latch illustrations show where parts engage, and the tailgate inspection covers side-panel alignment. The manual also shows the taillight lead connection and routing at the cargo bed.
European KAF950GA, KAF950GB, and KAF950GC models have separate trailer hitch and reverse light installation instructions. The Canadian section shows where to apply the French labels.
Follow the manual's precautions when handling heavy components, working around the raised cargo bed, or handling battery electrolyte.
Battery Variants and Fluid Preparation
US models use the pre-filled, sealed East Penn 526 RMF battery. Canadian KAF950G9, KAF950GA, KAF950GB, and KAF950GC models and European KAF950G9, KAF950GA, and KAF950GB models have a conventional 722 FMF battery with electrolyte packed in the crate. The separate European KAF950GC procedure uses electrolyte supplied by the dealership.
The US battery charging table relates terminal voltage to charging current and time, and the conventional battery sections cover activation and load testing. The manual warns that an excessive charge rate can warp the battery plates and cause an internal short.
The oil and coolant sections show where to check the engine, transmission, front final gear case, and coolant reservoir levels. The engine oil section explains how filling too quickly or overfilling can send oil into the intake and cause hydraulic lock.
Brake Checks, Wheel Alignment, and Test Ride
The manual gives inspection procedures for brake pedal free play, brake light switch operation, and engine idle speed. It directs those adjustments to an authorized Kawasaki dealer and refers steering gear preload adjustment to the separate service manual. The wheel alignment section illustrates axle-height toe-in measurements and tie-rod adjustment.
Numbered fastener photos identify the hardware covered by the component-specific torque chart. The general torque table applies to otherwise unlisted bolts and nuts with dry, solvent-cleaned threads.
The test ride checklist covers the belt-drive torque converter, differential, forward-reverse and high-low shifting, and 2WD–4WD engagement. It also checks steering, suspension, brakes, seat belts, speedometer, and lighting, followed by an inspection for leaks. For repair and further adjustments after the test ride, Kawasaki refers technicians to the separate MULE 3010 Diesel Service Manual.
Sample Brake Travel and Toe-In Specifications
The brake pedal inspection specifies 2–10 mm (0.08–0.40 in.) of free play. The parking brake check specifies 8–12 clicks of lever travel and checks that the vehicle holds while parked.
The front-wheel alignment procedure specifies 0–20 mm (0–0.79 in.) of toe-in at 1G, with measurements taken at axle height.
