Yamaha Grizzly 550 ATV Owner's Manual 2013 (P/N LIT-11626-27-22)
176 Pages • Printable PDF • 20.67 MB • Download
Yamaha Models Covered & Key Technical Specifications
Models & Model Codes: Grizzly 550 — non-EPS (YFM550DE, YFM550DHE), EPS (YFM550PE, YFM550PHE)
Model Year: 2013
-
Engine displacement: 558 cc
-
Battery specification: 12 V, 18.0 Ah
-
Final drive gear oil capacity: 0.20 L
-
Front tire size: AT25 x 8-12
-
Front carrier maximum load: 45.0 kg (99 lb)
-
Rear carrier maximum load: 85.0 kg (187 lb)
-
Overall vehicle length: 2065 mm (81.3 in)
-
Auxiliary DC jack capacity: 12 V, 10 A (120 W)
-
Front carrier bolt (upper/lower) torque: 34 Nm (25 ft-lb)
-
Carrier bolt (under fenders) torque: 7 Nm (5.1 ft-lb)
Yamaha Manual Features & Selected Content Preview

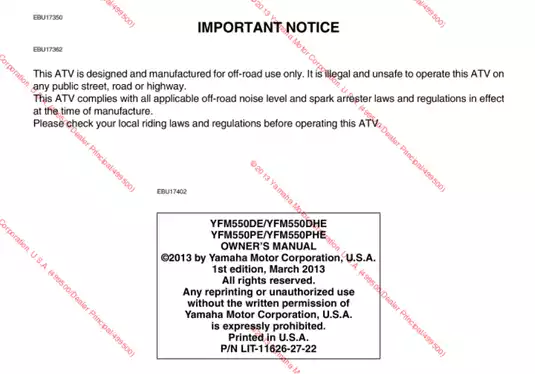

Official Yamaha Owner’s Manual for the 2013 Grizzly 550 YFM550DE, YFM550DHE, YFM550PE, and YFM550PHE, covering non-EPS and EPS configurations. This is the first edition, March 2013, P/N LIT-11626-27-22, with Yamaha cover code 2LB-F8199-10.
Printable PDF with Chapter Bookmarks
Search and navigation: Embedded bookmarks link to chapters and individual maintenance topics. PDF text search is not available. Diagonal watermarks overlap portions of the text and illustrations.
One printable PDF contains 176 pages, including the original covers, three supplementary information pages, one blank page, and a two-page safety/reply card.
ATV Operation, Routine Service and Fault Checks
The following selected topics outline the manual’s coverage. Other material includes identification-number records and a maintenance-record chart.
-
Controls and riding: Drive selection, On-Command four-wheel drive and differential lock, throttle-limiter adjustment, pre-operation checks, terrain techniques, loading, and towing guidance.
-
Engine and driveline maintenance: Spark-plug inspection, engine oil and filter replacement, final-gear and differential-oil service, spark-arrester cleaning, and V-belt-case draining.
-
Cooling and filtration: Step-by-step coolant replacement and air-bleeding procedures, radiator-grille access, foam air-filter cleaning, and air-filter-case checks.
-
Brakes and chassis: Brake-pad wear and fluid checks, brake-pedal free-play adjustment, chassis lubrication, suspension-preload adjustment, and wheel removal and installation.
-
Battery and lighting: Battery removal and installation, fuse and bulb replacement, headlight-beam adjustment, and EPS warning-light information.
-
Troubleshooting charts: Starting and poor-running checks covering fuel, battery, ignition, and compression, plus a separate engine-overheating chart.
Written for ATV owners, the manual’s preventive-maintenance and minor-repair procedures require the tools and experience appropriate to each job.
Owner Maintenance and Dealer-Service Limits
The maintenance charts and illustrated procedures help owners plan routine service and distinguish owner checks from work assigned to a Yamaha dealer. Charts use time, mileage, or operating hours—whichever comes first—and mark tasks requiring special tools, data, and technical skills.
Scheduled items include the fuel line, valve clearance, V-belt, wheel bearings, axle boots, steering and suspension points, cooling system, control cables, lights, and chassis fasteners. Air-filter service is more frequent in wet or dusty conditions.
This is an owner’s manual, not the factory service manual. It covers adjustments, troubleshooting, and minor repair work rather than internal engine, clutch/V-belt transmission, final-gear, differential, fuel-injection, EPS, or brake-hydraulic overhaul. Wiring diagrams are not included.
Yamaha assigns valve-clearance adjustment, brake-component repair, drive-select safety-cable adjustment, and wheel-hub-bearing repair to dealer service. The nitrogen-charged rear shock absorbers must not be opened or heated.
Drive Controls and Riding Guidance
The operating sections explain L/H/N/R/P selection, On-Command 2WD/4WD and differential-lock operation, and the override function. Illustrations show switch positions and indicator states; the riding chapter addresses hills, slopes, rough terrain, skidding, and shallow-water crossings.
The multi-function display section explains the hour meter, tripmeters, fuel display, and self-diagnosis error-code screen. Error-code display information supports reporting a fault to a dealer; it does not provide a workshop-level electrical diagnosis procedure.
Illustrated Access and Fluid Service
A panel A–H location map supports the access procedures for carriers, footboards, and body panels. Coolant-service illustrations identify the water-pump and cylinder-head air-bleed points rather than showing only the drain and filler locations.
Lubricant references include a temperature-based engine-oil viscosity chart, API SG-or-higher and JASO MA requirements, and SAE 80 API GL-4 hypoid gear oil for the final gear and differential. Separate capacity entries distinguish those housings and the radiator from the coolant reservoir. Brake-fluid specifications require DOT 4.
Oil selection matters because the engine oil also lubricates the wet clutch: the manual warns against CD-rated diesel oils and oils labeled “ENERGY CONSERVING II” or higher because of clutch slippage. Its air-filter instructions warn that twisting the foam can damage it, while incorrect seating can admit unfiltered air and cause rapid engine wear.
Brake Checks, Electrical Service and Storage
Brake illustrations show pad wear-indicator grooves and fluid-level marks. The fluid guidance explains how unsuitable brake fluid can damage rubber seals and why mixing fluid types is hazardous.
The electrical section includes a fuse-box layout and EPS-specific warning-light and fuse information for YFM550PE and YFM550PHE. Battery guidance identifies the VRLA type and its need for a constant-voltage charger.
Tool references include the supplied low-pressure tire gauge and spark-plug wrench, an oil-filter wrench, and the special wrench for shock-preload adjustment. Cleaning and short- or long-term storage sections address corrosion prevention, fuel preparation, lubrication, and battery care.
Selected Oil-Fill and Cold-Tire Specifications
Engine-oil refill quantity is 2.00 L (2.11 US qt) without oil-filter replacement or 2.10 L (2.22 US qt) with a new filter. These are service-fill quantities, not a single capacity for every oil-change operation.
The tire section specifies recommended cold pressures of 35.0 kPa (5.0 psi) at the front and 30.0 kPa (4.4 psi) at the rear. Its tables distinguish these operating pressures from minimum pressures and tire-seating limits.
