2007-2008 Case IH JX60, JX70, JX80, JX90, JX95 utility tractor service manual
Models covered in this manual:
File specifications
File type: PDF
Language: English (some of our manuals are multi-language)
Printable: Yes
Estimated download time: 0.73 Minutes
$19.99
Pay with Bitcoin
Product Information

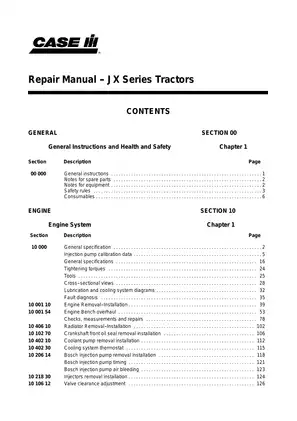

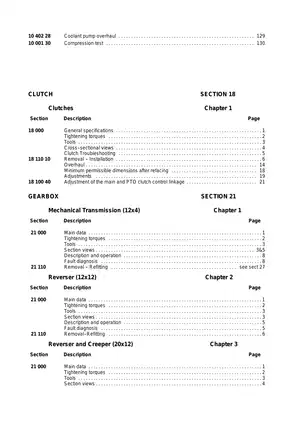

Table of Contents
GENERAL
- General Instructions and Health and Safety 00-1
- Rules for Spare Parts 00-2
- Tightening Torques 00-3
- Fuel and Lubricant 00-4
ENGINE
- General Specification 10-1
- Injection Pump Calibration Data 10-2
- Engine Diagnosis 10-3
- Fuel Tank 10-4
- Engine Removal 10-5
- Valve Timing 10-6
- Tightening Torques 10-7
- Radiator Removal 10-8
- Thermostat 10-9
- Turbocharger Removal 10-10
- Cylinder Head Removal 10-11
- Crankshaft Rear Seal Replacement 10-12
- Fuel Injection Nozzles Replacement 10-13
- Piston and Connecting Rod Removal 10-14
- Rocker Arm Replacement 10-15
- Valve and Valve Seat Grinding 10-16
- Engine Overhaul 10-17
- Oil Pump Overhaul 10-18
- Water Pump Overhaul 10-19
- Compression Test 10-20
CLUTCH
- General Specifications 18-1
- Clutch Removal and Installation 18-2
- Clutch Adjustment 18-3
- Troubleshooting 18-4
GEARBOX
- Mechanical Transmission (12x4) 21-1
- Reverse (12x12) 21-2
- Reverse and Creeper (20x12) 21-3
DRIVE LINES
- Drive Lines Description and Operation 23-1
- Propeller Shaft Disassembly/Assembly 23-2
- Final Drives 23-3
- Gear Housing Removal/Disassembly/Assembly 23-4
FRONT AXLE MECHANICAL TRANSMISSION
- Main Data 25-1
- Front Wheel Alignment 25-2
- Steering Cylinder Removal/Installation 25-3
- Differential Removal/Installation 25-4
- Front Drive Shaft Removal/Installation 25-5
- Steering Cylinder Overhaul 25-6
- Differential Overhaul 25-7
- Wheel Hub Overhaul 25-8
REAR AXLE AND TRANSMISSION
- Main Data 27-1
- Rear Axle Removal/Installation 27-2
- Differential Overhaul 27-3
POWER TAKE-OFF
- PTO Clutch Adjustment 31-1
- PTO Shaft Removal/Installation 31-2
- PTO Gear Overhaul 31-3
BRAKES
- Hydraulic Brakes 33-1
- Mechanical Brakes 33-2
HYDRAULIC SYSTEMS
- Hydraulic Pump Removal/Installation 37-1
- Hydraulic Valve Overhaul 37-2
- Hydraulic Cylinder Overhaul 37-3
STEERING
- Steering Cylinder Removal/Installation 44-1
- Steering Valve Overhaul 44-2
- Power Steering Pump Removal/Installation 44-3
AXLE AND WHEELS
- Front Axle Overhaul 51-1
- Rear Axle Overhaul 51-2
AUXILIARY EQUIPMENT
- Front Loader Installation/Removal 55-1
- Rear Hitch Installation/Removal 55-2
- Hydraulic Control Valve Installation/Removal 55-3
ELECTRICAL SYSTEM
- Battery Maintenance 70-1
- Starter Motor Removal/Installation 70-2
- Alternator Removal/Installation 70-3
- Wiring Diagrams 70-4
CAB
- Cab Removal/Installation 90-1
- Cab Heating and Air Conditioning System 90-2
- Cab Interior Maintenance 90-3
- The pricing of this manual, handbooks, and repair guides is determined by the seller and may vary across different pages. Please compare prices before making a purchase.
- Many of our manuals feature comments and ratings from other users, helping you make an informed decision. We encourage you to leave a review after your purchase to assist other users.
- Don't hesitate to download the repair manual you need now. Your download comes with a lifetime guarantee, as described in our FAQs.
- To contact the seller of the manual, please use our contact form, and we will forward your request or handle it directly.
How to Download Your Manual - Delivery Policy
Within a minute after completing the payment process, you will receive two emails from us. One for the completed payment and another with the download link. The download link is valid for 3 days.
Lifetime Guarantee
