2004–2009 Aprilia RSV 1000 R / RSV 1000 R Factory Cycle Parts Workshop Manual (P/N 8140742)

This Aprilia factory workshop publication (P/N 8140742, first edition October 2003) covers the 2004–2009 RSV 1000 R and RSV 1000 R Factory. It is the US-edition Cycle Parts Technical Manual, with RSV R and RFACT variant references.

• Fuel injection: Throttle body disassembly and inspection, Axone 2000 diagnostics, cylinder synchronization, CO balancing, throttle position self-teaching, and ECU initialization.

• Electrical diagnosis: Wiring diagram, ECU pinout tables, sensor and charging-system checks, CAN communication faults, dashboard error codes, and immobilizer key coding.

• Forks and steering: Separate Showa and Öhlins fork service procedures, oil and dust seal replacement, internal component inspection, and steering bearing adjustment.

• Rear suspension and final drive: Shock absorber and swingarm removal, linkage inspection, wheel and sprocket-carrier bearing replacement, and drive-chain adjustment.

• Brakes and clutch: Model-specific front brake pad replacement, rear pad service, disc inspection, front brake circuit bleeding, and hydraulic clutch bleeding.

• Engine and cooling: V990 NG engine removal and reinstallation, mounting torque tables, cooling-system filling and bleeding, and radiator circuit layout.

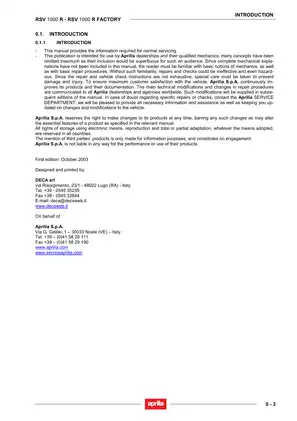

Written for Aprilia dealerships and their qualified mechanics, this manual assumes familiarity with basic mechanical principles and repair procedures.

Fuel Injection and Axone Diagnostics

The multipoint injection section extends to fuel pump and delivery-filter replacement, fuel level sensor removal, injector checks, and throttle body reassembly. Inspection criteria cover the throttle linkage and control-shaft end play.

Axone tables explain live parameters, actuator activation, and frozen fault parameters. They distinguish standard and racing mapping, throttle position self-teaching, adaptive-parameter initialization, and activation of a replacement ECU.

The Injection System Diagram identifies control-system components. The California Evaporative Emission System diagram maps the carbon canister, ventilation valve, and vacuum plumbing for that configuration.

Electrical Fault Tracing and Immobilizer Service

The Electrical Equipment Check Table provides component test specifications, while ECU connector A/B tables identify pin functions and signal types. The Wiring Diagram is accompanied by a component legend and wire-color key.

The documented ERR display and accompanying instrument symptoms help identify loss of ECU–dashboard CAN communication when planning an electrical repair. Immobilizer operation is described separately from the CAN network.

Key coding coverage distinguishes initial registration from adding keys to an existing system. Additional-key registration requires the dealer Master Key and cancels previously stored codes.

Suspension, Wheels, and Brake Repair

Separate front-fork diagrams distinguish the Showa RSV R assembly from the Öhlins RFACT fork, also listed as an RSV R option. Fork and rear-shock setup tables distinguish standard settings from racing settings designated for closed-course use.

Linkage service covers needle bearings, seals, and pivot hardware. Wheel service includes axle and rim runout checks, bearing installation, sprocket-carrier service, and rubber cush-drive inspection.

Fork seal replacement notes flag the risk of denting the slider edge during seal removal. Wheel-bearing installation notes explain how pressing a bearing too far can overload the retaining ring.

Brake sections distinguish the RSV R and RFACT front-pad procedures and provide disc wear and runout limits. Mechanics must use appropriate protective equipment when handling brake fluid, coolant, and battery electrolyte.

Engine Scope and Service Reference Data

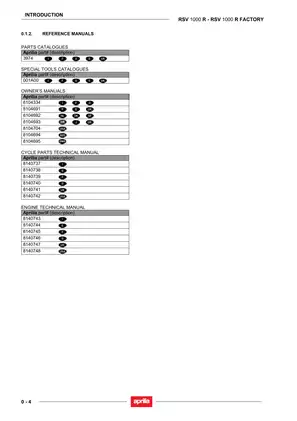

Engine removal and reinstallation cover the oil tank, oil cooler, exhaust connections, and engine-to-frame adjusters. Internal engine overhaul is outside this manual’s scope; the separate US Engine Technical Manual, P/N 8140748, is listed as a reference and is not included.

Vehicle identification and VIN decoding accompany periodic maintenance charts, transmission ratios, tire-pressure tables, lubrication recommendations, fluid capacities, and component-specific tightening torques. The Cooling System Diagram identifies the radiator, fans, expansion reservoir, and three-way thermostatic valve.

Special-tool references include Öhlins fork wrench 8140424 and swingarm spindle/engine support tool 8140191.

PDF Search, Navigation, and Diagram Legibility

This printable 308-page PDF includes the front and back covers. Main text and reference tables are searchable, but labels embedded in illustrations are not; there are no PDF bookmarks. Small pin numbers and wire-color codes in the main wiring diagram are partly illegible even when enlarged.
