Subaru Legacy & Outback 2013 Service Manual Set (P/N G2490BE2)
6,287 Pages • Printable PDF • 198.07 MB • Download
Subaru Models Covered & Key Technical Specifications
Models & Model Codes: Legacy (BM*****; model-code example BMMDY4A), Outback (BR*****)
Sub-models / Variants: 2.5 L DOHC non-turbo (H4DO; engine identification example: FB25BAYBDB with 6MT), 3.6 L DOHC non-turbo (H6DO; engine identification example: EZ36DBCDLB with 5AT), Sedan, Wagon, 6MT (TY751VHDCA, 2.5 L), 5AT (TG5D8CJAAA, 3.6 L), CVT (TR580KHDAA, 2.5 L), AWD
Model Year: 2013
VIN transmission identifier: Position 11: 1 = full-time AWD 6MT; 2 = full-time AWD 5AT; 3 = full-time AWD CVT.
-
Engine displacement: 2,498 cc (2.5 L) or 3,630 cc (3.6 L)
-
Engine configuration: Horizontally opposed 4-cylinder or 6-cylinder
-
Transmission types: 6-speed manual (6MT), 5-speed automatic (5AT), or Continuously Variable Transmission (CVT)
-
Fuel tank capacity: 70 L (18.5 US gal)
-
Engine coolant capacity: 6.5–7.6 L depending on model and transmission
-
Crankshaft position sensor resistance: 2.04±0.204 kΩ (2.5 L H4DO); 1.86±0.186 kΩ (3.6 L H6DO)
-
Tumble generator valve assembly torque: 25 N·m (18.4 ft-lb) (2.5 L H4DO)
Subaru Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
General Information — 2013 Subaru Legacy (BM*****) and Outback (BR*****); specifications, identification and periodic maintenance |
109 |
| Engine 1 — 2.5L H4DO non-turbo, P/N G2490BE2 | 1,364 |
| Engine 2 — 3.6L H6DO non-turbo, P/N G2490BE3 | 1,042 |
| Transmission — P/N G2490BE4 | 864 |
| Chassis — P/N G2490BE5 | 662 |
| Body — P/N G2490BE6 | 1,910 |
| Wiring System — P/N G2490BE7 | 336 |
The engine volumes cross-reference the shared drivetrain, chassis and wiring sections for related removal and diagnostic work.
Body-structure descriptions, reference points and dimensions require the separate Subaru Body Repair Manual; that publication is not included.

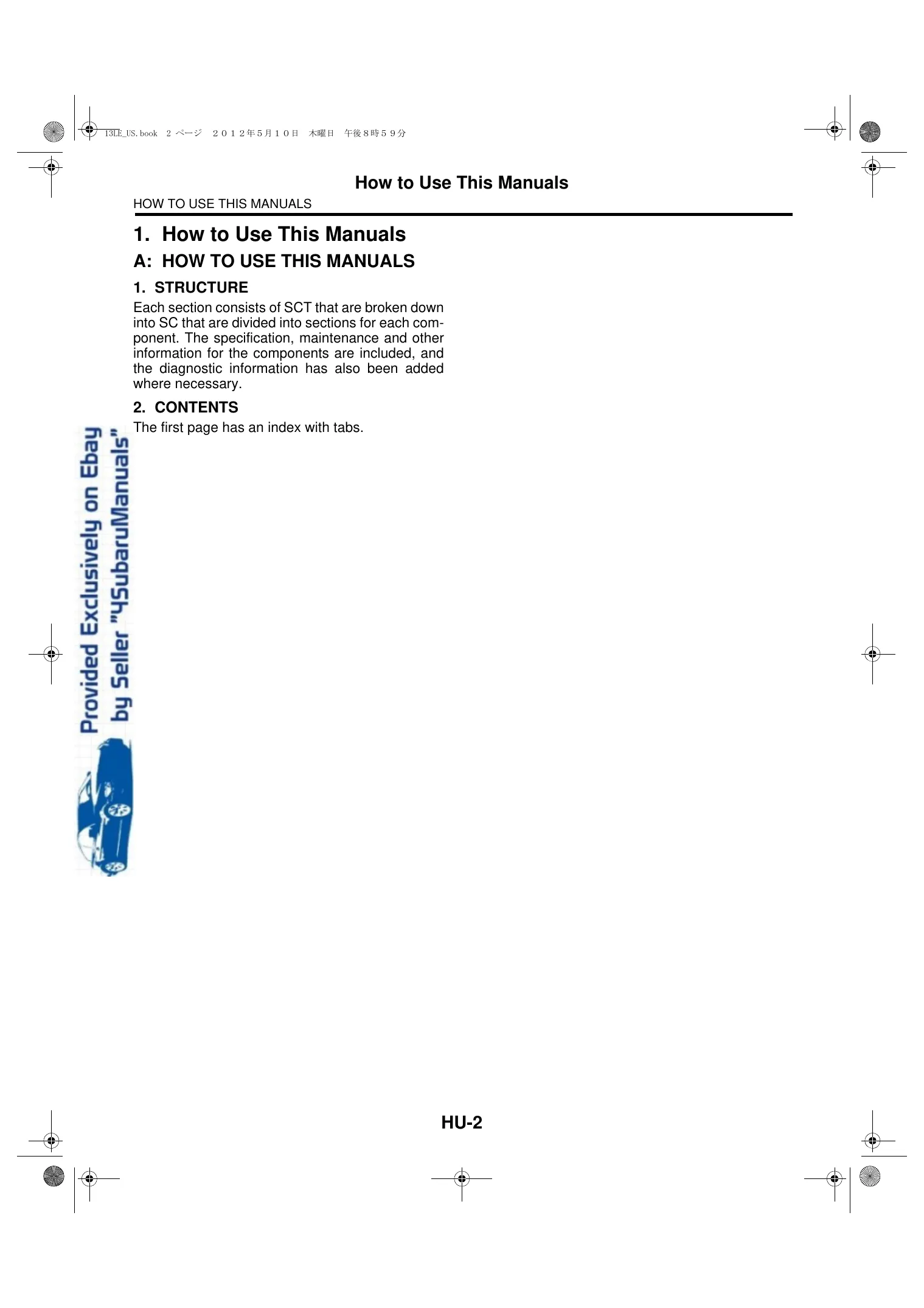

PDF Search, Bookmarks and Wiring Detail
Navigation and fine detail: Text search works across the volumes, with embedded bookmarks for major sections and individual components. Small connector-pin numbers and wire-color codes in dense wiring diagrams are best read with zoom.
Supplied as one printable, 6,287-page PDF, including seven volume title/index pages and seven blank pages.
Engine, Drivetrain and Vehicle-System Repair
These selected workshop topics sit alongside further sections on immobilizer diagnostics and cruise-control troubleshooting.
-
Engine repair: Step-by-step engine removal, overhaul preparation, timing-chain service, camshaft and cam-carrier work, plus cylinder-head and cylinder-block disassembly, inspection, reassembly and final checks.
-
Fuel and engine systems: Fuel-injection and emissions diagnosis, compression and pressure testing, plus exhaust, cooling, lubrication, ignition, and starting/charging repair.
-
Transmission service: CVT and 6MT procedures for H4DO models, and 5AT procedures for H6DO models, including internal disassembly and inspection, valve-body work, differential service and control diagnosis.
-
Chassis and brakes: Wheel alignment, struts, links, hub bearings, drive shafts, VDC/ABS, hydraulic brakes, electronic parking-brake diagnosis and emergency release, and power-steering repair.
-
Electronic setup: TPMS transmitter registration, occupant-detection rezeroing, EyeSight camera adjustment, CAN communication checks, and keyless/push-button-start diagnosis.
-
Wiring and service data: System wiring diagrams, connector views, harness locations, exploded assemblies, torque tables, capacities, pressure-test data, inspection limits, clearances and electrical test values.
Prepared for Subaru service personnel and experienced mechanics, this set assumes access to appropriate lifting equipment, meters, scan functions and the specified special tools.
Timing, Internal Repair and Special Tools

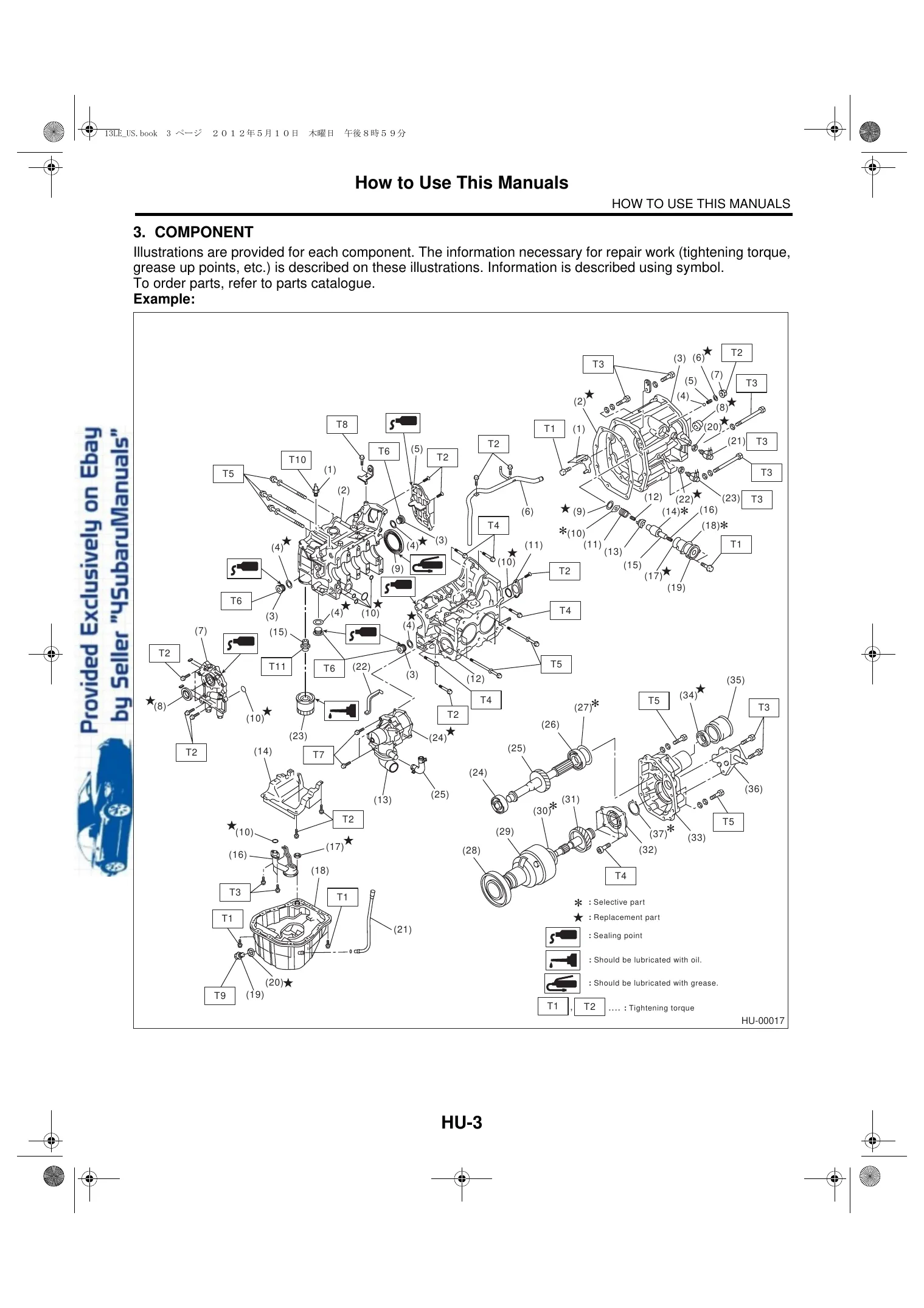

Exploded component drawings mark sealing and lubrication points, replacement parts and fastener torques. This keeps assembly instructions and the corresponding service data together during internal engine repair.
Tool references specify the 18252AA000 crankshaft socket and the 18355AA000 pulley wrench with 18334AA030 pin set for the corresponding engine work.
The timing-chain chapter flags the risk of bent valve stems if the H4DO intake and exhaust camshafts are moved independently after chain removal. Cam-carrier assembly notes also address engine seizure from excess sealant reaching a camshaft journal.
Transmission Internals and Learning Control
CVT procedures extend to the primary and secondary pulleys, variator chain, forward clutch and reverse brake. The 6MT chapters cover shaft and gear inspection and clutch-fluid bleeding; 5AT coverage includes main-case internals and transfer components.
Road, stall, time-lag, line-pressure and transfer-clutch pressure tests accompany dedicated CVT and 5AT learning-control procedures.
Subaru Diagnostics and System Wiring
Symptom tables, branching fault charts and ECM/TCM I/O tables connect DTCs and current data with circuit checks, helping technicians trace a fault before selecting a repair.
System-specific sections include inspection modes, warning-light patterns, cancel codes, actuator or sequence-control checks and module registration. Electronic tests and setup procedures reference the Subaru Select Monitor III.
The wiring volume includes diagrams for the Engine Electrical, CVT Control, EyeSight, Vehicle Dynamics Control, Airbag and Occupant Detection systems, together with power and ground circuits and connector-pin views.
HVAC, Restraints and Body Components
The Body volume adds refrigerant recovery, charging and leak testing, post-collision airbag inspection, and seat-belt and pretensioner service. Separate procedures cover windows, mirrors, seats, locks, sunroof, trim and exterior-panel removal.

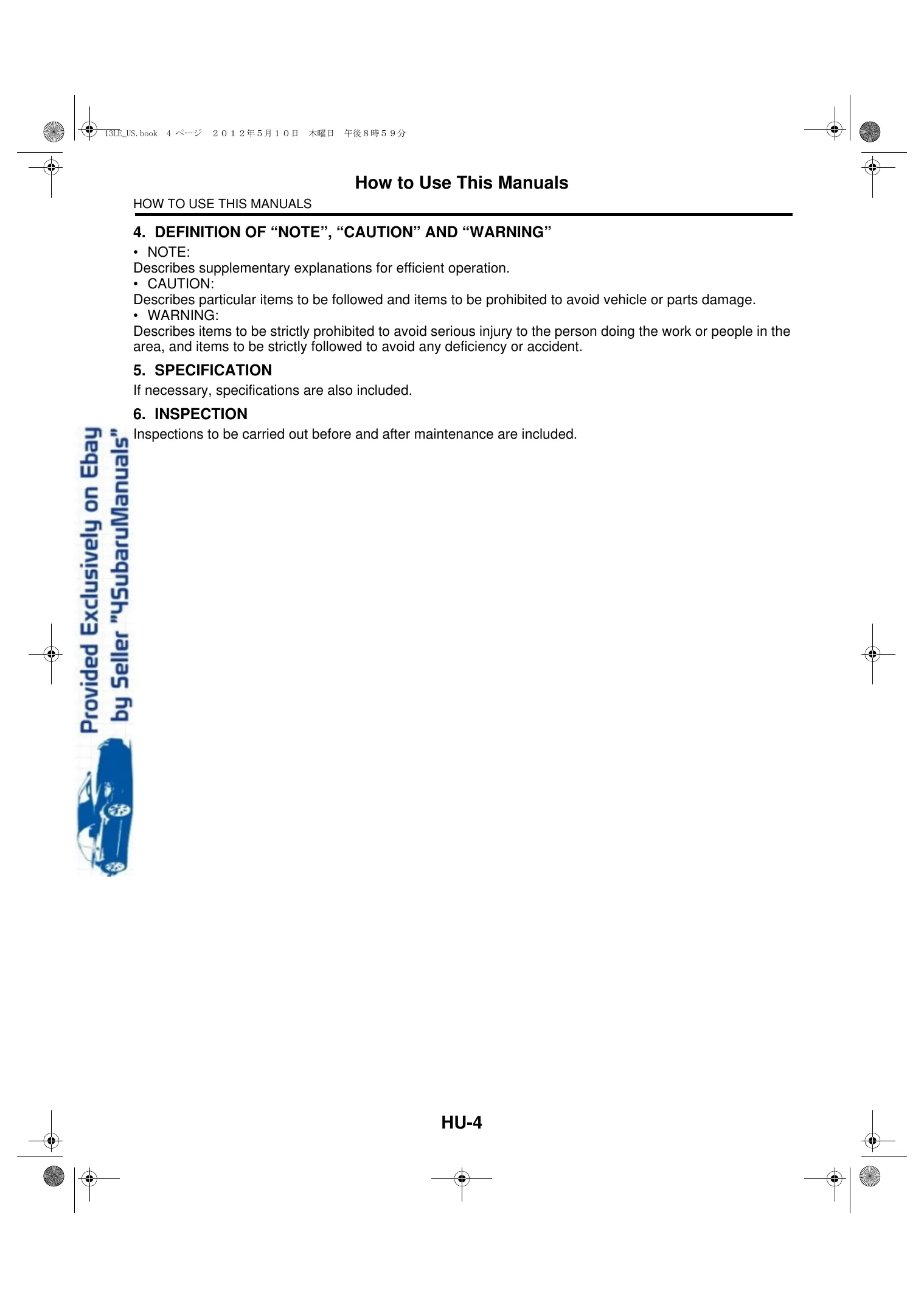

Use the manual's precautions for fuel pressure, refrigerant handling, brake work and SRS components, including the relevant battery-isolation and lifting requirements.
Valve-Clearance and Temperature-Sensor Examples
For the H4DO engine, cold cam clearance is specified at 0.13±0.03 mm on the intake side and 0.24±0.03 mm on the exhaust side. Inspection guidance distinguishes between installed and removed timing chains.
H4DO coolant-temperature-sensor checks list approximately 2.45±0.2 kΩ at 20°C (68°F) and 0.318±0.013 kΩ at 80°C (176°F), measured between sensor terminals 1 and 2.
