2005–2009 Suzuki VL 1500 Intruder, Boulevard, C90, C90T Service Manual (P/N 99011-10F61-03A)

• Model and file coverage: 1998-2009 VL1500 family coverage for the Intruder and Boulevard C90/C90T, organized under the factory VL1500W, X/Y, and K1-K9 model codes. The set contains 812 PDF pages in two files: a 701-page service manual and a 111-page K9 VL1500/T owner's manual, Part No. 99011-10F61-03A.
• Engine and transmission repair: Covers engine removal and installation, complete disassembly and reassembly, camshaft and cylinder-head service, valve-seat work, cylinders and pistons, cam-chain components, clutch, gearshift linkage, transmission, crankshaft, connecting rods, oil pump, oil cooler, and oil jets.
• Shaft-drive repair: Details secondary and final bevel-gear removal, inspection, shim selection, backlash and tooth-contact checks, bearing and seal replacement, propeller-shaft service, final-drive case assembly, and leak-related inspection points.
• Carburetor and fuel-injection systems: Separates the twin-carburetor procedures used through K4 from the K5 fuel-injection system, with carburetor disassembly and synchronization, fuel-pressure and pump testing, throttle-body service, TPS/STP adjustment, fast-idle inspection, throttle-valve synchronization, and injector and sensor diagnosis.
• Chassis, hydraulics, and electrical work: Includes front-fork and steering-stem service, front and rear wheel removal, swingarm and rear suspension work, brake caliper and master-cylinder rebuilding, brake and clutch bleeding, charging and ignition tests, starter service, automatic decompression, and side-stand interlock diagnosis.

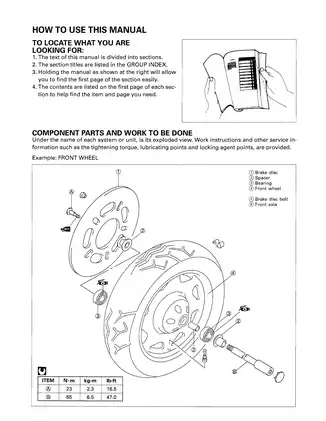

• Diagrams and reference data: Provides engine-lubrication and cylinder-head cooling diagrams, shaft-drive construction and tooth-contact views, K5 FI wiring and ECM terminal identification, the automatic-decompression/starter/interlock circuit, region-specific wiring diagrams, exploded assembly views, torque tables, wear limits, pressure-test data, capacities, and electrical specifications.

Suzuki states that the service manual is written for people who already have sufficient service knowledge, skills, and tools, including the specified special tools. It is therefore suited to professional technicians and experienced mechanics rather than beginners who need basic mechanical instruction.

Model-Year Structure and System Changes

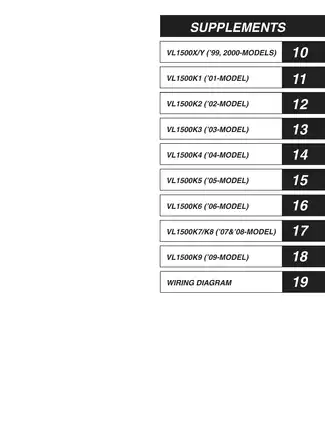

The core repair chapters are based on the 1998 VL1500W. Supplement sections then identify changes for 1999/2000 X/Y, 2001 K1, 2002 K2, 2003 K3, 2004 K4, 2005 K5, 2006 K6, 2007/2008 K7/K8, and 2009 K9. These are change-only supplements: where a later section does not repeat a procedure, it directs the technician back to the earlier chapters included in the same service PDF. K2 adds revised front- and rear-brake procedures, while K3, K4, K6, K7/K8, and K9 primarily update specifications, wiring, routing, maintenance, or emissions information.

K5 is the major technical break. The earlier motorcycles use two BDSR36 carburetors; K5 introduces electronic fuel injection, a secondary-throttle control system, dual intake-air-pressure sensing, ECM-controlled PAIR operation, and revised fuel-delivery and electrical sections. The K5 region table separates E-03 U.S. models outside California, E-28 Canadian models, and E-33 California models; the E-28 entry begins at effective frame No. JS1VY52A 52100001-. California-specific EVAP inspection and hose routing are identified separately. Cooling coverage concerns the air/oil-cooled SACS lubrication, oil-cooler, oil-jet, and cylinder-head cooling circuits, not a liquid-cooling system.

Diagnostic Depth and Special Tools

The base chapters use symptom/cause/remedy charts for engine, shaft drive, carburetor, chassis, charging, starting, and ignition faults. K5 adds ECM user and dealer modes, stored malfunction codes, fail-safe behavior, SDS data display and reset functions, and circuit-level fault isolation for CKP, IAP, TP, EOT, IAT, tip-over, and secondary-throttle sensors, as well as injectors, the fuel-pump relay, region-specific heated-oxygen-sensor circuits, and PAIR control.

Named factory equipment includes the compression gauge 09915-64510 with adaptor 09918-03810, carburetor/vacuum balancer 09913-13121, multi-circuit tester 09900-25008 with needle-point probe set 09900-25009, SDS set 09904-41010 with CD-ROM 09904-41030-004, and fuel-pressure gauge adapter and hose tools 09940-40211 and 09940-40220.

The engine chapter flags the primary-drive and driveshaft bolts as left-hand threads; treating them as conventional fasteners can damage components. On K5 fuel-injected models, reversing battery polarity, disconnecting ECM couplers with the ignition on, or connecting test equipment incorrectly can damage the ECM and sensors.

Included 2009 Owner's Manual

The separate K9 owner's manual covers controls and instruments, break-in, pre-ride inspection, riding and loading, the maintenance schedule, battery and air-cleaner care, spark plugs, engine and final-gear oil, clutch and brakes, tires, wheel removal, fuses, basic troubleshooting, storage, corrosion protection, labels, and specifications. It distinguishes VL1500 and VL1500T tire fitments. This is the operator and routine-maintenance companion to the service manual, not a substitute for its internal engine, fuel-system, electrical, or shaft-drive repair coverage.

Because the set includes pressurized fuel testing, brake and clutch hydraulic service, compressed-air caliper work, and major engine and shaft-drive disassembly, follow the factory warnings and use the specified supports, ventilation, measuring equipment, and special tools.
