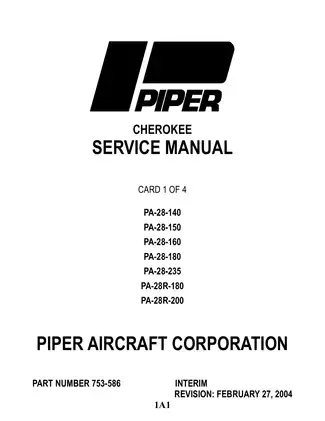

The cover on the 1961-1971 Piper PA-28 Cherokee Series aircraft service manual PDF does more than name the airplane family. It spells out a multi-model Cherokee service manual, shows “Card 1 of 4,” and carries part number 753-586 with an interim revision dated February 27, 2004. For shoppers moving through the broader aircraft manual inventory, those details are the difference between a broad family reference and a narrowly targeted single-model file.
The cover language tells you this is a grouped Cherokee document
This is labeled “Cherokee Service Manual,” but the stronger buying cue is the list underneath: PA-28-140, PA-28-150, PA-28-160, PA-28-180, PA-28-235, PA-28R-180, and PA-28R-200. That puts the file in a family-document category rather than a one-aircraft-only listing.
For a buyer, that matters because “PA-28” alone can feel broader than it really is. The visible model lineup on the uploaded manual cover makes this file easier to judge than a short marketplace title that leaves the exact Cherokee variants unclear.
“Card 1 of 4” changes expectations
One of the most useful clues in the uploaded manual is the aerofiche structure. The early pages show this manual as a four-card set, with card-based contents and revision handling rather than a single short booklet format. That gives the package a more archival feel and suggests a document set organized across multiple fiche sections that were later assembled into digital form.
That format makes it different from a parts-only purchase or a later single-family title that focuses on another Piper branch. A shopper comparing this file with the Piper PA-28 and PA-28R illustrated parts catalog PDF is really comparing two different document purposes, even though the airplane names overlap.
Where the Cherokee name can split into different buying paths
The Piper catalog has plenty of near-neighbors. Inside the wider Piper aircraft manual archive, a Cherokee-family service file like this one sits in a different lane from the 1960-1981 Piper PA-23 Apache and Aztec service manual PDF, the 1975-1981 Piper Seneca II PA-34-200T service manual PDF, or the 1980-1985 Piper PA-32-301 Saratoga and Turbo Saratoga parts catalog PDF.
Even within Piper singles, title overlap can hide major document differences. A family-style Cherokee service set is not the same buying choice as a more narrowly framed manual such as the Piper Archer II PA-28-181 service manual PDF, the Piper Archer III PA-28-181 parts catalog PDF, or the Piper Arrow PA-28R-201 and Turbo Arrow service manual PDF. The naming may feel adjacent, but the document family is not.
The page layout adds trust signals
Beyond the cover, the opening pages show a structured table of contents with dedicated areas for handling and servicing, inspection, structures, controls, hydraulic system, landing gear and brake system, power plant, fuel system, instruments, electrical system, electronics, heating and ventilating, and accessories and utilities. That breadth makes the listing feel like a substantial reference package rather than a partial supplement.
The same early pages also show revision history and aerofiche replacement notes, which is useful for buyers who want something that reads like a maintained document family. Compared with a simpler aircraft listing that gives only a title and no publication cues, this one offers much more to compare before purchase.
Typical pages in this package
- cover page with model-family list
- aerofiche explanation and revision status
- four-card table of contents
- illustration index by aircraft variant
- table index with dimensions and torque references
- introduction pages for airframe and systems
- fuel, electrical, and instrument references
- heating, ventilating, and accessories sections
| Document marker | Visible detail |
|---|---|
| Manual family | Cherokee Service Manual |
| Covered aircraft names | PA-28-140 / 150 / 160 / 180 / 235 / PA-28R-180 / PA-28R-200 |
| Publication identifier | Part number 753-586 |
| Bundle structure | Card 1 of 4 / four-card aerofiche set |
| Revision note | Interim revision dated February 27, 2004 |
| Format signal | Digitized aircraft service manual package |
This listing is a better fit for buyers who want a broad early Cherokee-series service reference with multiple PA-28 and PA-28R variants named directly on the file. When the goal is to avoid a look-alike Piper listing that belongs to a different aircraft family or a different document type, the cover language and fiche structure on this manual do a lot of the sorting for you.
