2006–2014 Suzuki DF2.5 Outboard Motor Service Manual Set (P/N 99500-97J00-01E)

The base manual supplies the main repair procedures, while the supplements document production changes. Their serial-number assignments help distinguish which specifications and component arrangements apply before parts are inspected or replaced.

Edition and page limits: The two later supplements specify revised base manual P/N 99500-97J01-01E, which is not included. The supplied base manual is the earlier edition. Its printed page 6-33 is missing, and page 6-34 appears twice, leaving a gap in the engine reassembly sequence.

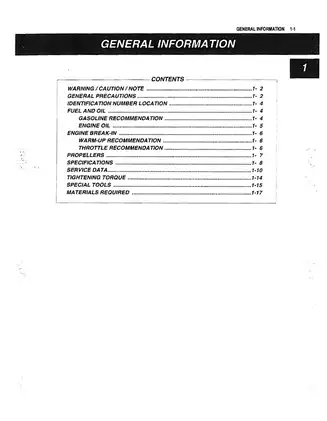

PDF Search, Bookmarks and Page Details

Text access and diagram detail: Text search works across much of the file, but the existing OCR is incomplete on some engine and lower-unit pages. Embedded bookmarks open the main chapters and each supplement. Small labels in the checked ignition and wire-routing illustrations are readable when enlarged.

One printable, English-language PDF contains 204 pages total. The publication counts above already include seven front/back covers, four publication-information pages, and the duplicated engine page.

Powerhead, Ignition and Gearcase Service

The following highlights are a selection of the contents. Additional topics include propeller selection and engine break-in recommendations.

• Power unit: Step-by-step removal and installation, cylinder-head disassembly, valve and rocker-arm inspection, crankcase work, and camshaft timing-gear alignment.

• Fuel system: Carburetor disassembly, jet and needle-valve inspection, float-height checks, throttle-cable adjustment, and fuel tank and fuel cock service.

• Ignition diagnosis: No-spark troubleshooting, igniter and plug-cap resistance tests, emergency-stop switch continuity checks, and flywheel removal and installation.

• Cooling and lubrication: Water-pump and impeller inspection, thermostat testing, oil-pump component inspection, and cooling and lubrication system illustrations.

• Lower unit: Gearcase disassembly, shaft and seal replacement, leakage testing, gear-backlash adjustment, and tooth-contact assessment.

• Starting and mounting: Recoil-starter disassembly and reassembly, tiller-handle service, throttle controls, and swivel-bracket and tilt-lock changes.

This material is suited to mechanics familiar with outboard repair and equipped for electrical testing, precision measurement, and gearcase pressure checks.

Maintenance and Internal Engine Inspection

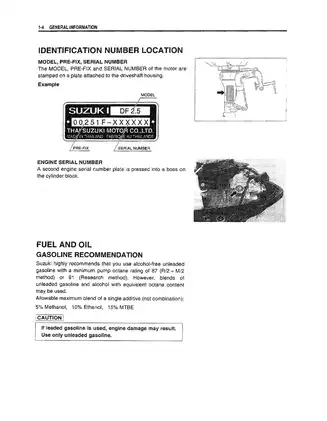

The maintenance charts distinguish the original schedule from later revisions, including internal powerhead anodes and the added thermostat inspection. Fuel octane and oil-viscosity recommendations accompany the fuel-filter, breather-hose, ignition-timing, and gearcase-lubrication information.

Internal inspection covers cylinder-bore wear, piston-ring-to-groove clearance, connecting-rod oil clearance, and crankshaft condition. Compression testing links low readings to possible mechanical faults and identifies the listed pressures as guidelines rather than absolute service limits.

The Cooling System Schematic traces water through the powerhead and exhaust, while the Engine Oil Lubrication Chart shows the paths supplied by the camshaft-driven trochoid pump.

Production Changes and Fuel-System Limits

The K8 supplement documents the revised swivel-bracket construction, tilt-lock hardware, and added propeller-shaft oil-seal protector. Later material covers the change from a shear-pin propeller to a spline-drive rubber-hub arrangement.

US-market fuel-system coverage includes removal, inspection, and installation of the diaphragm fuel pump. The pump is a nonrepairable assembly and is replaced if defective. Later non-US sections address revised carburetor settings and fuel-tank mounting parts.

Carburetor-cleaning cautions identify solvent damage to rubber, plastic, and other nonmetallic parts.

Electrical Fault Finding and Lower-Unit Repair

The Ignition Troubleshooting flowchart separates ignition faults from other starting problems. The Wiring Diagram and market-specific Wire Routing views support checks of the igniter, emergency-stop circuit, and lead placement. Later supplements distinguish digital CDI components and ignition advance from the original transistorized system.

Lower-unit coverage pairs seal replacement with leakage testing and gear shimming with tooth-contact illustrations. The manual warns that incorrect tooth contact can chip the forward or pinion gear. Named equipment includes oil leakage tester 09950-69512 and attachment 09950-69710.

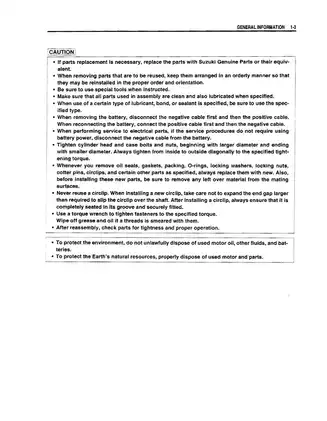

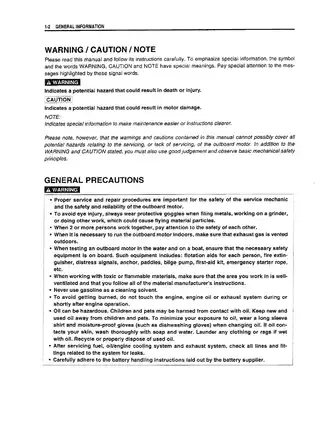

Secure the outboard before teardown or test running, and observe the manual’s precautions for fuel, rotating components, and the tensioned recoil spring.

Examples of Valve, Crankshaft and Gear Inspection Data

For the DF2.5 valve gear, intake and exhaust clearance is specified at 0.13–0.17 mm with the engine cold. The crankshaft inspection section gives a runout service limit of 0.05 mm.

The base manual’s lower-unit adjustment section specifies 0.10–0.20 mm backlash between the pinion and forward gear. This accompanies the shim-selection and tooth-contact assessment material.
