Polaris Sportsman 400/500 ATV Service Manual, 2005 (P/N 9919425)
311 Pages • Printable PDF • 132.14 MB • Download
Polaris Models Covered & Key Technical Specifications
Models & Model Codes: Sportsman 400 (A05MH42AB, A05MH42AG, A05MH42AH), Sportsman 500 (A05MH50AB, A05MH50AC, A05MH50AG, A05MH50AH)
Sub-models / Variants: Sportsman 400 (EH42PLE05 engine, non-EBS PVT), Sportsman 500 (EH50PLE13 engine, EBS-equipped PVT)
Model Year: 2005
-
Engine Displacement: 425 cc (400 model), 499 cc (500 model)
-
Engine Configuration: 4-stroke, liquid-cooled, SOHC single-cylinder
-
Transmission: Drum shift H/L/N/R/P (PVT system)
-
Engine Oil Capacity: 2.25 qts (2.1 L)
-
Ignition Timing: 30° ± 2° BTDC @ 5000 RPM
-
Front Suspension: A-arm / MacPherson Strut
-
Rear Suspension: Progressive Rate Independent w/ dual coil-over shocks
-
Braking System: Dual hydraulic disc front, single hydraulic disc rear
Polaris Manual Features & Selected Content Preview
Polaris's factory 2005 Sportsman 400/500 Service Manual, P/N 9919425 covers the Sportsman 400 A05MH42 family with AB, AG, and AH suffixes, and the Sportsman 500 A05MH50 family with AB, AC, AG, and AH suffixes.
PDF Search, Bookmarks, and Wiring Detail
Search and diagram access: Main-chapter text is searchable, and embedded bookmarks cover chapters and procedures, with some missing or misplaced links. Labels in the main wiring and winch diagrams are not searchable and need zooming to read; the winch schematic has faint lines.

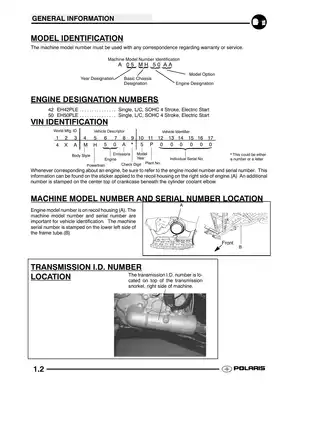

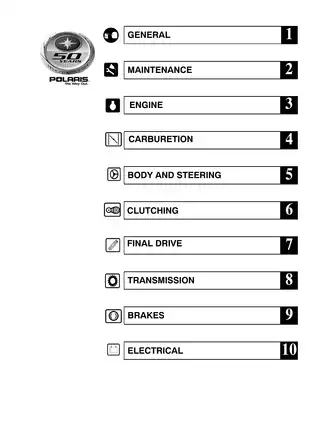

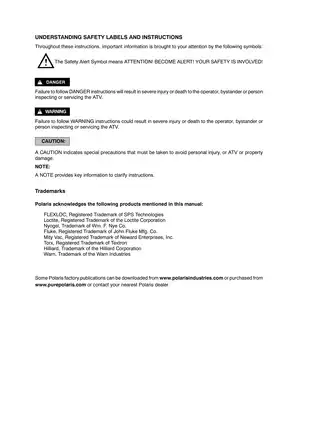

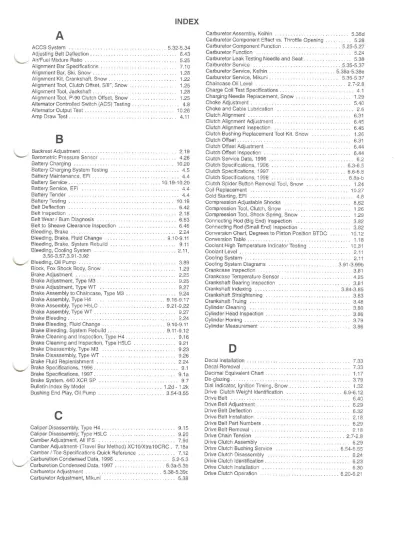

One printable, English-language PDF with 311 pages, including two cover pages, the safety and contents pages, six index pages, two notes pages, a maintenance log, and a publication-feedback page.
Engine, PVT, and AWD Repair Coverage
These selected service topics are part of the manual's wider contents, which also include accessory-power connections and winch controls.
-
Maintenance and setup: Periodic service schedules, lubrication, fluid changes, compression testing, throttle/choke and ETC adjustment, valve clearance, transmission linkage, steering and toe alignment, suspension checks, and storage preparation.
-
Engine repair: Engine removal, cooling-system pressure testing, oil-pressure testing and pump priming, valve-seat service, cam timing, recoil-starter repair, and EH50PL internal overhaul procedures.
-
Fuel system: Mikuni BST 34/BST 40 carburetor disassembly, cleaning, inspection, float adjustment, fuel-level and needle/seat leakage tests, fuel-pump service, and troubleshooting.
-
PVT clutches: Non-EBS and EBS drive/driven clutch inspection, disassembly, assembly, bushing replacement, belt service, alignment, and overheating diagnosis.
-
Transmission and final drive: Transmission removal, gear-cluster and shift-system service, bearing and gear inspection, backlash adjustment, reassembly, installation, and troubleshooting; centralized Hilliard gearcase overhaul, hubs, axles, CV-boot repairs, U-joints, and rear driveshaft service.
-
Body, suspension, and brakes: Panel, storage-box, rack, and cab removal; steering-post and A-arm work, strut cartridges, ball joints, rear-suspension layout, brake inspection and bleeding, caliper overhaul, pads, and discs.
-
Electrical diagnosis: Gear-position and speedometer troubleshooting, Sure Power ECM, instrument-cluster diagnostic mode, ETC, DC/CDI ignition, charging, coolant-sensor and fan tests, batteries, lighting, fuel sender, and starter-motor/drive testing.
Factory repair procedures and special-tool requirements make this manual suited to experienced ATV owners and technicians; Polaris reserves PVT maintenance and repairs for properly trained, certified Master Service Dealer technicians.
Engine Variants and Overhaul Scope
The Sportsman 400 pairs the EH42PLE05 engine with a Mikuni BST 34 and non-EBS PVT; the 500 uses EH50PLE13, a BST 40, and EBS-equipped PVT. These distinctions help match carburetor and clutch procedures to the ATV.
The engine chapter provides EH42PLE/EH50PLE service data and cylinder/cylinder-head inspection. Its detailed exploded view and step-by-step top- and bottom-end overhaul procedures are labeled EH50PL.
The flywheel section warns that over-inserting puller bolts can damage the stator coils.
AWD Diagnosis and Brake Service Limits
Front-gearcase diagnosis combines coil resistance, supply voltage, and armature-plate wear checks to help distinguish an electrical AWD fault from mechanical engagement problems.
Brake coverage separates the rear caliper's hand- and foot-brake hydraulic circuits and includes fluid replacement, burnishing, and brake-noise troubleshooting. The hand-brake master cylinder is non-serviceable and replaced as a unit.
Prying against transmission-case sealing faces can damage them. Securely support the ATV for suspension, brake, transmission, and final-drive work, and account for stored spring force in clutch and shift-rail assemblies.
Factory Diagrams, Test Data, and Polaris Tools
The EH50PL Oil Flow Diagram traces the lubrication circuit, while the BST 34/BST 40 Carburetor Exploded Views identify internal fuel-system parts.
The Front Gearcase – Centralized Hilliard Exploded View and Transmission Exploded View support driveline assembly work. Electrical references include the Ignition System Testing Flow Chart and the two-page 2005 Sportsman wiring diagram, with its wire-termination table and 400/500 ignition details (PDF pp. 302–303).
Reference tables supply component-specific torques, fluid and lubricant data, wear limits, running clearances, clutch and jetting charts, and electrical test specifications.
Engine-tool callouts include the Water Pump Mechanical Seal Puller (P/N 2872105) and Valve Seat Reconditioning Kit (P/N 2200634).
Fuel and drivetrain sections specify the Carburetor Float Adjustment Tool (P/N 2872314), EBS Clutch Alignment Tool (P/N 2872292), and Shaft Drive Transmission & Front Gearcase Tool Kit (P/N 2871702).
Parts ordering and operating guidance refer to separate parts publications and the Owner's Safety and Maintenance Manual.
Float-Height and AWD Coil Specification Preview
The Sportsman 400's BST 34 float-height specification is 13.0 ± 1 mm; the Sportsman 500's BST 40 uses 14.7 ± 1 mm. These measurements run from the float-bowl mating surface to the float step, with the inlet-needle spring uncompressed; the BST 40 float assembly must be fully seated.
For the centralized Hilliard front gearcase, the AWD diagnostic section specifies a coil resistance of 22.8–25.2 ohms, measured at the coil harness.
