2005 Polaris Sportsman 400, 500, 600, 700 ATV Owner's Manual (P/N 9919412)

This Polaris owner's manual covers operation, safety, and routine maintenance for the 2005 Sportsman 400, 500, 600, and 700 ATVs. The factory publication is P/N 9919412, Rev 03, printed in the USA. Major repair procedures are covered in the separate Polaris Service Manual and assigned to Factory Certified Master Service Dealer technicians.

Searchable Text, Navigation, and PDF Contents

Text search and navigation: The main manual text is searchable, including maintenance instructions, troubleshooting tables, and specifications. The cover pages and one additional front-matter page are not searchable. No embedded PDF bookmarks are included; the contents page and alphabetical index provide section references.

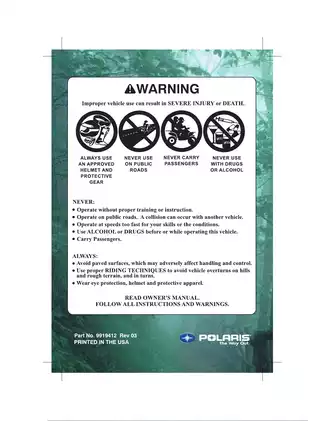

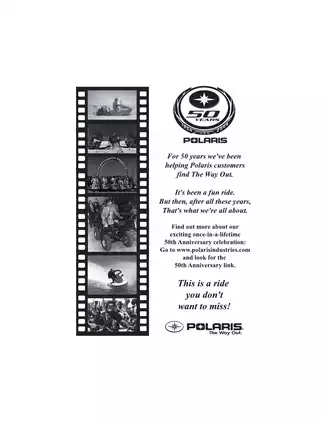

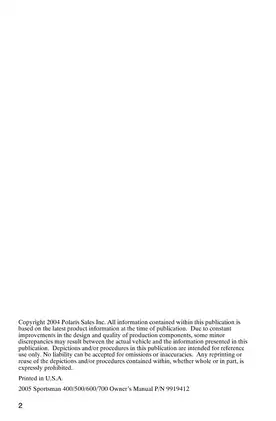

One printable English PDF contains 135 pages total, including two cover pages, an unnumbered warning page, one additional front-matter page, two numbered blank pages, and one notes page. These pages are already included in the total.

Riding Controls, PVT Care, and Routine Maintenance

The following selected topics show the manual's scope rather than its complete contents. Other subjects include seasonal storage preparation and ATV transport precautions.

• Operation and safety: Starting procedures, break-in guidance, protective riding gear, operator training, cargo handling, hill riding, and water-crossing precautions.

• AWD and instruments: All Wheel Drive engagement, reverse override, Electronic Throttle Control, rider information displays, diagnostic screens, and service-reminder programming.

• Lubrication and cooling: Model-specific engine oil and filter changes, oil-pump priming, transmission and gearcase fluid changes, and coolant checks.

• Routine service: Air-filter and breather-filter servicing, spark-plug inspection, wheel removal and installation, lamp replacement, and spark-arrestor purging.

• PVT and troubleshooting: PVT drying instructions and symptom-based charts for drive-belt problems, starting faults, misfires, power loss, and overheating.

• Adjustment references: Carburetor idle adjustment, throttle-cable freeplay, rear spring preload, handlebar positioning, and model-specific jetting and clutching charts.

The manual is written for owners and operators handling operation and minor maintenance; service tasks marked for dealer attention require an authorized Polaris dealer.

Operation and Instrument Information

The operating sections explain climbing, descending, sidehilling, turning, and carrying loads, alongside a daily Pre-Ride Checklist. Fuel requirements and cold-weather operating notes accompany the starting instructions.

The instrument-cluster diagnostic mode displays battery voltage, engine speed, AWD-coil current status, and gear-switch resistance information. These displays support basic checks, but the manual identifies diagnostic mode as informational and refers major repairs to the dealer.

Model-Specific Fluid Service

Step-by-step instructions distinguish the 400/500 oil-tank arrangement from the 600/700 engine-sump arrangement. Separate transmission-oil procedures and a dedicated 600/700 rear-gearcase section help owners select the correct service instructions rather than apply one model's procedure across the range.

The 400/500 oil-change section also includes oil-pump priming after the oil-supply hose has been disconnected. Cooling-system coverage explains the recovery bottle, radiator pressure cap, coolant-level checks, and replacement requirements.

PVT Care and Fault-Finding Charts

The PVT section explains how low-range selection affects belt grip and heat during slow operation or heavy pulling. Belt slip can generate enough heat to damage both the belt and outer clutch cover.

The AWD section warns that engaging drive while the rear wheels are spinning can severely damage the drive shaft and gearcase. Its operating guidance makes the engagement conditions clear.

The Drive Belt and Cover Problems chart links operating conditions to likely causes and corrective guidance. Separate engine charts distinguish no-crank, crank-but-no-start, backfiring, irregular running, and overheating symptoms.

Adjustment, Battery, and Setup References

Individual Jetting Charts and Clutching Charts identify model-specific settings and components for different elevations. Emission-control coverage limits the operator's recommended carburetor adjustment to idle speed; other adjustments are assigned to an authorized dealer.

Battery coverage distinguishes conventional and sealed types, with removal, installation, storage, and a sealed-battery state-of-charge table. Spark-arrestor service includes specific hot-exhaust and fire precautions; the PVT section addresses the hazards of rotating clutch components and operating without the housing secured.

A Preview of Wear and Adjustment Data

Brake inspection: The brake section specifies pad replacement at a friction-material thickness of 3/64 in. (0.1 cm), alongside checks for leaks, excessive lever travel, and disc condition.

Throttle adjustment: The throttle-cable section gives a thumb-lever freeplay range of 1/16–1/8 in., supported by an illustration identifying the adjuster sleeve, locknut, and protective boots.
