2003–2012 Polaris Trail Boss 330 ATV Service Manual Set (P/N 9918061)

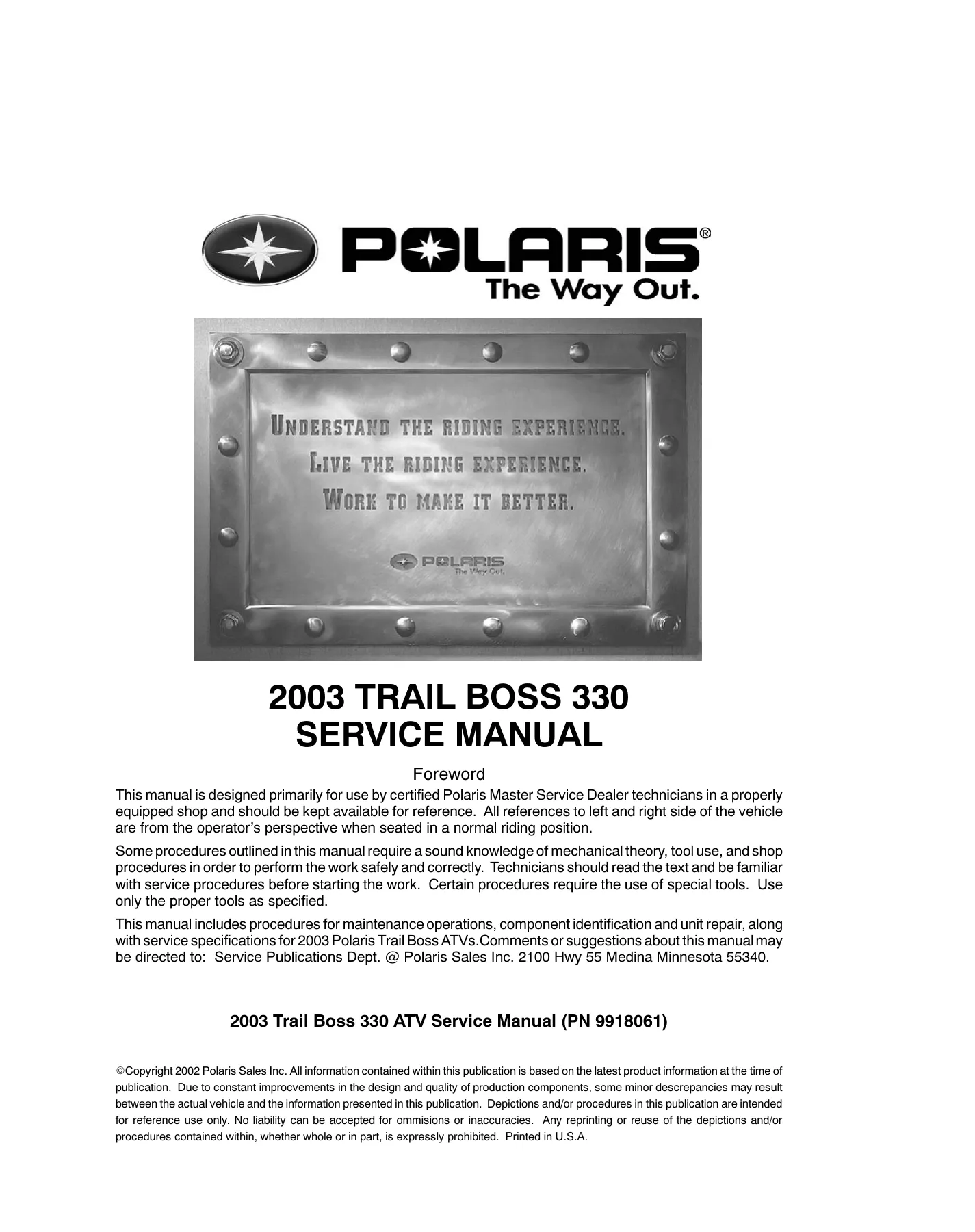

This 2003–2012 Polaris Trail Boss 330 service manual set covers the Gen IV, two-wheel-drive ATV with its 329 cc SOHC four-stroke engine. It includes the 2003 Trail Boss 330 Service Manual, Polaris P/N 9918061 (copyright 2002), and the 2009 Trail Boss 330/Trail Blazer 330 service volume.

The ZIP contains two English PDF files totaling 443 pages, with overlapping service content. The combined volume also includes Trail Blazer 330 specifications and wiring.

• Engine and maintenance: Periodic service charts, top-end and bottom-end overhaul, valve-seat reconditioning, cylinder inspection, and crankshaft bearing and endplay checks.

• Mikuni BST34 fuel system: Constant-velocity carburetor service, float and needle-seat checks, impulse fuel pump testing, and temperature/altitude jetting tables.

• PVT (Polaris Variable Transmission): Drive and driven clutch overhaul, bushing inspection, belt wear diagnosis, alignment checks, and spring and weight calibration.

• Transmission and final drive: Gearbox removal, internal chain and shaft service, shifting diagnosis, and concentric rear axle and hub bearing repair.

• Body, suspension and brakes: Panel removal, MacPherson strut service, steering alignment, swingarm inspection, caliper repair, and hand/auxiliary brake circuit diagnosis.

• Electrical diagnostics: Ignition and charging system tests, starter checks, fan control, gear-position switches, and Power Distribution Module troubleshooting.

Written primarily for certified Polaris Master Service Dealer technicians working in a properly equipped shop, these procedures assume mechanical knowledge and access to the specified special tools.

Engine Overhaul and Periodic Maintenance

General Information and Maintenance chapters provide model identification, service intervals, lubrication references and inspection procedures. The A03CA32 vehicle uses the ES32PFE10 engine; engine coverage extends from cylinder-head service to crankcase disassembly and crankshaft inspection.

The Oil Flow Diagram – ES32PF supports lubrication-system diagnosis. Other procedures cover camshaft timing, the automatic decompressor, valve guides and seats, cylinder honing, piston rings and the recoil starter. Compression and cylinder leakage testing are explained alongside the decompressor's effect on readings, helping technicians assess engine condition before committing to an overhaul.

Cylinder-head bolt and crankshaft nut torque specifications accompany the repair procedures. Oil-pump cautions address sealant-related changes to internal clearance and blocked oil passages.

BST34 Carburetor and Impulse Fuel Pump

The BST34 Carburetor Exploded View identifies the float, needle, diaphragm and metering components used throughout the fuel chapter. Coverage includes float-height inspection, needle-and-seat pressure testing and impulse fuel pump vacuum testing.

Jetting charts relate carburetor calibration to temperature and altitude. The combined volume also addresses the sealed pilot circuit and its service restrictions. Component-specific cautions explain the risk of breaking the float-pin support towers during carburetor disassembly.

PVT Clutches, Gearbox and Chain Final Drive

PVT repair coverage includes drive and driven clutch disassembly, bushings, springs, weights, belt condition and clutch alignment. Tool references include the Polaris clutch offset tool, P/N 2870654.

The transmission troubleshooting material links hard shifting to idle speed, belt drag and linkage adjustment as well as internal faults, helping narrow the diagnosis before gearbox removal. Internal service covers shafts, shift forks, engagement dogs and the transmission chain.

The Concentric Swingarm Rear Axle Exploded View supports axle and bearing service, with separate assembly details for the included configurations.

MacPherson Suspension and Hydraulic Brakes

Body and Suspension coverage includes steering components, tie-rod alignment, ball joints, strut cartridges and the swingarm. Brake chapters address front and rear caliper repair, disc inspection, bleeding and the relationship between the hand-operated and auxiliary hydraulic circuits.

Working on ATVs carries inherent risks. Always verify component limits and follow standard shop safety practices before tearing down an engine or adjusting the suspension.

Ignition, Charging and PDM Diagnostics

Electrical sections include ignition troubleshooting charts, starter voltage-drop tests, charging-system checks, Electronic Throttle Control and oil-cooler fan diagnosis.

The combined volume adds Power Distribution Module connector information, operating logic and block diagrams for charging regulation, fan control and starter interlocks. Separate wiring drawings cover the 2003 Trail Boss, 2009 Trail Boss and 2009 Trail Blazer.

File Format and Readability

The 213-page Trail Boss PDF includes five front-matter pages, one of them blank; a five-page alphabetical index; three notes-only pages within the chapters; and one full wiring-diagram page.

The 230-page combined PDF includes four notes-only pages and a four-page wiring appendix containing two full vehicle diagrams, wire-termination tables and PDM block diagrams. These pages are already included in the 443-page total.

Both files have chapter and wiring-section bookmarks. Text chapters are searchable, but the full wiring drawings and termination tables are image-based. Small wiring labels are readable when enlarged; the combined volume's wiring pages also benefit from rotation.
