Polaris Models Covered & Key Technical Specifications

Models: Sportsman 700 EFI, Sportsman 800 EFI

Model Year: 2006


  • Engine displacement: Sportsman 700 EFI: 683 cc (engine EH68ALOE22); Sportsman 800 EFI: 760 cc (engine EH0760LE011)

  • Transmission: Sportsman 700 EFI: automatic, side lever (H/L/N/R/P); Sportsman 800 EFI: Automatic EBS w/E-Z Shift (H/L/N/R/P)

  • Fuel capacity: 4.13 gallons (15.6 liters)

  • Overall length: 83 inches (211 cm)

  • Front rack capacity: 100 lbs (45 kg)

  • Rear rack capacity: 200 lbs (91 kg)

  • Recommended tire pressure: 5 psi (34.5 kPa)

  • Front suspension: MacPherson strut

  • Maximum trailer weight (level ground): 1500 lbs (682 kg)

  • Engine oil capacity: 2 quarts (1.9 liters)

  • Transmission oil capacity: 15 oz (450 ml)

  • Front gearcase oil capacity: 5 oz (150 ml)

  • Rear gearcase oil capacity: 5 oz (150 ml)

  • Spark plug type: RC7YC

Polaris Manual Features & Selected Content Preview

The 2006 Polaris Sportsman 700 EFI and 800 EFI Owner’s Manual for Maintenance and Safety (P/N 9920028, Rev 02) covers ATV operation, routine maintenance, and basic troubleshooting for both models.

Printable PDF and Included Pages

Text search and navigation: The main text is searchable, including the maintenance charts and troubleshooting tables. The two cover pages are image-only. There are no embedded PDF bookmarks.

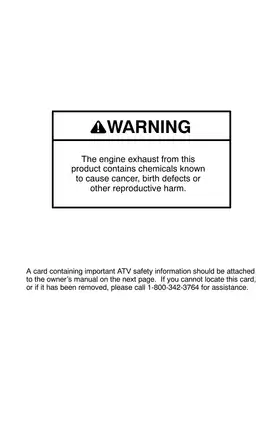

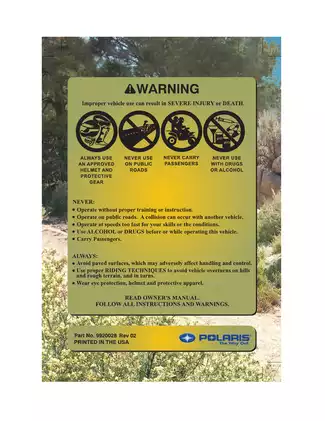

The download is one printable English PDF with 124 pages total. That count includes two cover pages, one unnumbered safety page, and 121 numbered pages. The numbered pages include a blank page, the warranty section, the maintenance log, and the index.


ATV Operation, Maintenance, and EFI Checks

Selected topics are outlined below. The manual also covers hill riding and securing the ATV for transport.

  • Engine maintenance: Step-by-step engine oil and filter changes, dipstick checks, air-filter and pre-filter service, and spark plug inspection and replacement.
  • Driveline service: Transmission and front and rear gearcase oil changes, All Wheel Drive (AWD) engagement, Polaris Variable Transmission (PVT) drying, belt break-in, and high/low range selection.
  • EFI and instruments: Special EFI Diagnostic Mode, blink-code descriptions, Rider Information Center diagnostics, and programmable service interval adjustment.
  • Brakes and chassis: Brake inspections and pad wear limits, toe-alignment checks, wheel removal and installation, rear spring adjustment, and throttle cable freeplay.
  • Cooling and electrical upkeep: Radiator and recovery-bottle checks, headlight aim and lamp replacement, battery removal and installation, and sealed-battery charging.
  • Operation and recovery: Pre-ride inspections, cargo and towing limits, water immersion recovery, exhaust spark arrestor cleaning, and storage preparation.

This manual is for owners who operate and perform basic maintenance on these adult ATVs. The Periodic Maintenance Chart identifies emission-related items and tasks assigned to an authorized Polaris dealer.

Maintenance Intervals and Repair Scope

The lubrication and inspection schedules identify severe-use conditions that call for closer attention, including frequent mud or water immersion, prolonged low-speed operation under load, and short cold-weather trips.

The owner’s manual covers routine upkeep and symptom-based troubleshooting. Major repairs, including internal engine overhaul and transmission teardown, require the separate Polaris Service Manual.

Engine, Gearcase, and Cooling Service

The Lubrication Guide identifies AGL transmission lubricant, front Demand Drive Hub Fluid, and rear ATV Angle Drive Fluid. The oil-check and change procedures illustrate the fill points and give component-specific plug torques.

The air-filter instructions explain how overtightening the clamp can damage the filter. The crankcase emission control section describes how blow-by gases are routed back through the intake. The cooling section explains how the radiator pressure cap and recovery bottle work together and why the correct cap matters.

PVT, AWD, and Model Differences

The gear selector and AWD sections explain gear positions, automatic front gearcase engagement, and reverse override operation. The Drive Belt and Cover Problems chart links low-speed operation in high range to belt slip and heat buildup, helping owners identify an operating cause of repeat belt trouble.

The model-specific clutching charts list altitude-dependent shift weights, springs, and EBS helix part numbers. The spark arrestor section illustrates the 700 EFI muffler and identifies the two arrestors on the 800 EFI.

EFI Diagnostics and Battery Checks

The Rider Information Center displays battery voltage, AWD coil status, and gear-switch resistance. The EFI blink-code table covers faults involving the engine temperature sensor, injectors, throttle position sensor, and fuel pump relay. The no-start chart helps owners sort through common fuel, ignition, and battery causes.

The diagnostic screens and code table provide fault information. The manual contains no wiring diagrams or detailed circuit repair procedures. Sealed-battery guidance includes voltage-based state-of-charge references, charging limits, and charging times.

Steering Checks and Water Recovery

The toe-alignment procedure shows how to check the setting. Tie-rod adjustment is assigned to an authorized Polaris dealer. The water immersion section gives a contingency procedure for cases where the ATV cannot be taken to a dealer before restarting and calls for dealer follow-up.

Spark Plug and Steering Spec Preview

For both models, the spark plug section lists a factory electrode gap of .035 in. (0.90 mm) and an installation torque of 18 ft-lb (24 Nm).

The steering check specifies 1/8 to 1/4 in. of toe-out for both models. This is the reference range for the owner’s alignment check.
