Polaris Models Covered & Key Technical Specifications

Models: Sportsman 400, Sportsman 500 H.O.

Models & Model Codes:

Sportsman 400 — A02CH42AA, A02CH42AB, A02CH42AC, A02CH42AD, A02CH42AE, A02CH42AF (engine EH42PLE05)

Sportsman 500 H.O. — A02CH50AA, A02CH50AB, A02CH50AC, A02CH50AD, A02CH50AE, A02CH50AF, A02CH50AG, A02CH50AH (engine EH50PLE13). A02CH50AJ is listed for overall length and dry weight.

Sub-models / Variants: DUSE H.O., RSE H.O.

Model Year: 2002


  • Engine Displacement: 425 cc (Sportsman 400), 499 cc (Sportsman 500 H.O.)

  • Engine Configuration: 4-Cycle, Single Cylinder, Liquid Cooled

  • Transmission Type: PVT (Polaris Variable Transmission), standard non-EBS (400), Engine Braking System (EBS) (500 H.O.)

  • Fuel System: Mikuni BST 34 (400), Mikuni BST 40 (500 H.O.)

  • Fuel Tank Capacity: 5.25 gallons (19.9 liters)

  • Drive System: Shaft Drive with 2/1 Front Drive Ratio

  • Electrical Output: 200 Watts (400), 250 Watts (500 H.O.)

  • Front Suspension: MacPherson Strut with 6.7 inches of travel

  • Rear Suspension: Progressive Rate Independent with 9.5 inches of travel

  • Braking: Single Lever Hydraulic Disc (Hand), Hydraulic (Auxiliary Foot)

Polaris Manual Features & Selected Content Preview

This factory service manual (P/N 9917202) covers the 2002 Polaris Sportsman 400 and Sportsman 500 H.O. ATVs, including the DUSE H.O. and RSE H.O. variants.

PDF Search, Bookmarks, and Wiring Detail

Search and diagram navigation: Search the chapter text or use the embedded bookmarks to jump to a chapter, the index, or either wiring diagram. Zoom in to read the small pin and wire labels, which are outside the searchable text.

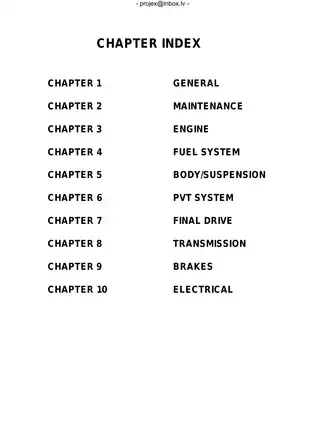

The download contains one printable English PDF. Its 354 pages include the unnumbered chapter index and the six-page alphabetical index.


Engine Overhaul, PVT Service, and ATV Diagnostics

These selected workshop topics give a sample of the manual’s coverage, which also includes sealed recoil starter overhaul and headlight aiming.

  • Engine overhaul: Step-by-step engine removal and installation, top- and bottom-end teardown, cylinder head and valve seat service, and cam timing.

  • Fuel system: Mikuni carburetor overhaul and adjustment, altitude and temperature jetting charts, fuel pump service, and fuel-flow diagrams.

  • PVT clutches: Standard and EBS drive and driven clutch service, including bushing replacement, belt inspection, clutch offset and alignment, and overheating diagnosis.

  • Transmission and AWD: Transmission removal and internal repair, front output housing end play and backlash, Hilliard clutch and magnetic coil service, and front and rear driveshaft work.

  • Steering, suspension, and brakes: A-arm, front strut cartridge, and ball joint replacement, plus hydraulic bleeding, auxiliary brake testing, and caliper repair.

  • Electrical troubleshooting: Electronic speedometer and AWD fault isolation, ignition, charging, battery, and starter tests, plus separate Sportsman 400 and 500 wiring diagrams.

The manual is suited to technicians and experienced ATV owners who are comfortable using precision measuring tools during teardown and reassembly.

Identification and Periodic Maintenance

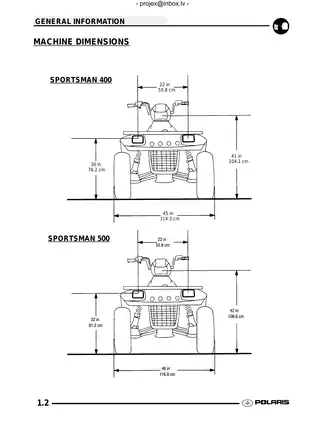

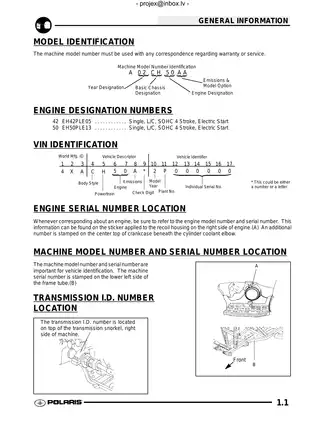

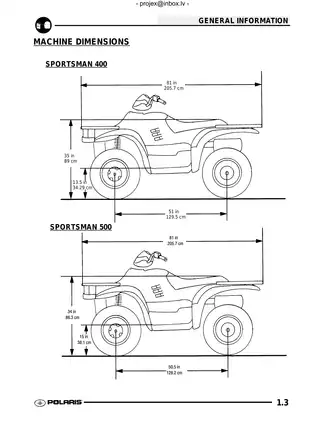

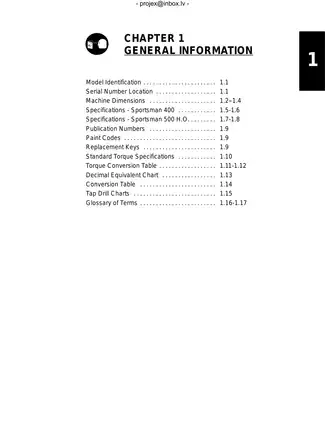

The opening chapter identifies the VIN, machine and engine serial number locations, transmission ID location, and paint codes. The maintenance chapter pairs service intervals and lubricant specifications with procedures for shift linkage adjustment, compression and cooling system pressure tests, oil pump priming, toe alignment, front hub maintenance, and wheel and tire inspection. Owner’s and parts manuals are separate Polaris publications.

Engine Inspection and Water Pump Service

The EH42PL/EH50PL oil-flow diagram accompanies oil pump and lubrication procedures. Engine service data cover piston and cylinder inspection, crankcase and bearing work, and torque sequences for reassembly. The cam timing procedure distinguishes the single top dead center mark from the flywheel advance marks to help prevent incorrect cam timing.

The EH50PL mechanical water pump seal can be replaced with the engine installed using puller 2872105. The manual cautions that side loading or striking the puller can bend the pump shaft, making engine removal and crankcase separation necessary for shaft replacement. It also identifies crankshaft and water pump seal installation kit 2871283.

Clutch, AWD, and Transmission References

The model-specific jetting and clutch charts match carburetor settings, springs, and shift weights to operating conditions. The clutch chapter distinguishes the standard belt tension adjustment from the EBS one-way clutch inspection and dedicated bushing procedures. It includes an EBS exploded view and identifies alignment tool 2872292.

Exploded views show the AWD front gearcase and transmission assemblies. The corresponding procedures identify Hilliard clutch garter spring tool 2870888 and transmission backlash setting tool 2871695. Follow the manual’s precautions for pressurized coolant, fuel, hydraulic brakes, batteries, and rotating PVT parts during inspection and service.

Speedometer and Electrical Fault Isolation

The speedometer flowcharts help narrow down loss of AWD engagement, reverse limiter faults, display and odometer problems, AWD hub speed limiting, and wheel-speed sensor faults. The electrical chapter also covers gear-position and Electronic Throttle Control (ETC) switches, cooling fan circuits, flywheel identification, and voltage, resistance, and current tests.

Sample Valve, Cylinder Head, and Float Specifications

Both engines specify 0.006 in. (0.15 mm) of intake and exhaust valve clearance with the engine cold and the piston at top dead center on the compression stroke. The cylinder head surface warpage limit is 0.002 in. (0.05 mm) for both engines.

The carburetor section specifies a float height of 13.0 mm ± 1 mm for the Sportsman 400’s BST 34 and 14.7 mm ± 1 mm for the 500 H.O.’s BST 40. Both measurements are taken with the inlet needle spring uncompressed and the BST 40 float assembly fully seated for its measurement.
