Polaris Sportsman 800 EFI Service Manual

Off-road performance demands absolute precision, and these factory-certified protocols ensure your twin-cylinder powerhouse maintains peak volumetric efficiency and drivetrain integrity. Navigating the complexities of the Bosch MSE 1.1B electronic fuel injection system becomes streamlined with these high-fidelity diagnostics, eliminating guesswork during critical sensor calibrations. Professional-grade maintenance strategies detailed within these pages prioritize long-term chassis stability and internal engine health for extreme utility or trail environments.

Operational Investment & Equipment Longevity

• Eliminating part-swapping through precise EFI resistance testing and fuel pressure verification.
• Preserving resale value by adhering to factory-specified torque sequences for all internal rotating assemblies.
• Protecting the PVT drivetrain from premature wear via exact clutch offset and belt deflection adjustments.
• Mitigating catastrophic engine failure through rigorous adherence to EH076OLE liquid-cooling system benchmarks.

Comprehensive Model & Series Treatment

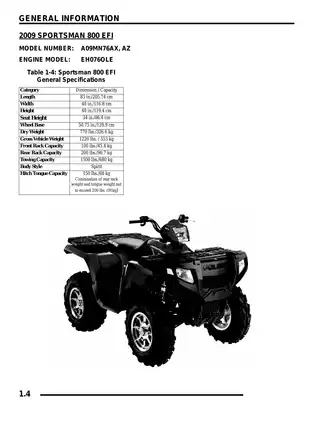

Active technical coverage is provided for the 2009 800-class chassis family, including detailed specifications for the Sportsman 800 EFI (A09MN76AX, AZ), the extended-wheelbase Sportsman X2 800 EFI (A09TN76AL, AX, AZ), and the passenger-oriented Sportsman Touring 800 EFI (A09DN76AB, AL, FC). Technical data also extends to the 800 EFI International and Touring International variants, covering specific European lighting and steering lock configurations.

Documentation Logistics

• Total Volume: 380 High-Density Pages
• Official Publication Number: PN 9922036
• Release Date: August 2008 (2009 Model Year)
• Digital Format: Searchable PDF

System Logic & Advanced Diagnostics

Troubleshooting the Polaris 760cc twin focuses on the blink-code interface and digital sensor outputs. Critical diagnostic pathways include MAP sensor voltage sweeps, TPS base-setting synchronization (0.60 Volts DC), and fuel pump prime-pulse verification. Specialized logic trees cover the Active Descent Control (ADC) and the Centralized Command Center (CCC) for AWD engagement failures, ensuring rapid isolation of electrical versus mechanical faults.

Component Targets & Maintenance Benchmarks

Master Technical Blueprint Index

• General Information: VIN locations, fluid capacities, and standard torque multipliers.
• Electronic Fuel Injection: ECU pin-out charts, sensor testing, and fuel rail service.
• Engine Overhaul: EH076OLE top-end and bottom-end rebuild procedures.
• Drive Systems: Front Gearcase (AWD) and Rear Transmission (Gearbox) internals.
• Chassis & Suspension: Strut replacement, A-Arm bushing service, and steering alignment.
• Electrical Matrix: High-resolution wiring diagrams for Standard, X2, and Touring models.

Schematic Fidelity & Visual Guides

High-resolution technical illustrations provide transparent views of the PVT clutch system, including weights and spring rates for high-altitude tuning. Electrical schematics feature full-color-coded paths for the 2009-specific harnesses, allowing for 400% zoom without loss of detail when tracing the ECM/Speedometer interface or the ADC hydraulic control circuit.

FAQ

Can the 2009 Sportsman 800 EFI series be identified by specific VIN and Model codes?

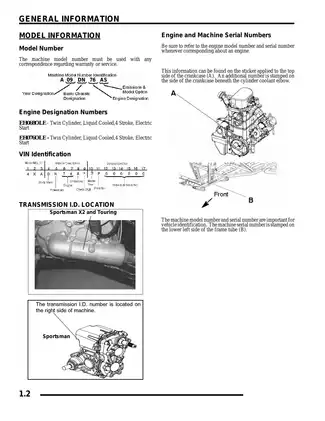

Proper fleet identification is critical for accurate parts sourcing, and this technical guide covers the A09MN76AX and A09MN76AZ standard models, as well as the A09TN76 (X2) and A09DN76 (Touring) variants. By verifying the 17-digit VIN located on the left front frame spar, technicians can ensure they are applying the specific EH076OLE engine protocols required for these 760cc twin-cylinder displacements.

What are the critical valve train and ignition benchmarks for the EH076OLE engine?

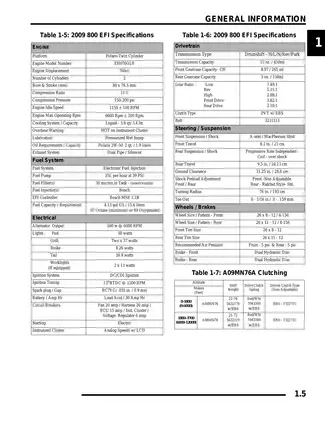

Achieving optimal volumetric efficiency requires precise mechanical calibration, specifically maintaining a cold valve clearance of 0.006 inches (0.15 mm) for both intake and exhaust. Furthermore, ignition system integrity depends on a spark plug gap of 0.035 inches (0.9 mm), which prevents mid-range hesitation and ensures the Bosch MSE 1.1B controller can maintain the target idle speed of 1150 ± 100 RPM.

How does the service data assist in troubleshooting the PVT and AWD drive systems?

Field uptime is maximized by adhering to the exact drive belt deflection specification of 1.125 inches (28.5 mm), which prevents premature glazing and ensures efficient power transfer. The manual provides the logic for the centralized AWD engagement and the Active Descent Control (ADC) systems, detailing the coil resistance and fluid requirements—such as the 5.07 oz capacity for the ADC reservoir—to resolve engagement failures.

What are the fuel system pressure targets for resolving EFI performance issues?

Rapid diagnosis of lean-running conditions or hard starts is performed by a fuel rail pressure test, where the system must maintain a steady 39 PSI (± 3 PSI). Accurate pressure verification ensures the electronic fuel injection system properly atomizes fuel across the entire power band, protecting the engine from high-temperature combustion damage during heavy-duty utility cycles.

How do the high-resolution wiring schematics facilitate complex electrical repairs?

The document includes specialized wire diagrams (WD-1 through WD-8) that allow for detailed tracing of the 2009-specific harnesses, including the turn signal and hazard circuits found on International models. These schematics enable technicians to perform continuity tests at the 18-pin ECU connector, ensuring that signal voltages for the T-MAP and TPS sensors remain within factory tolerances to prevent "Check Engine" MIL triggers.
