Kubota 70 mm Stroke Series Diesel Engine Workshop Manual (P/N WSM 60201)

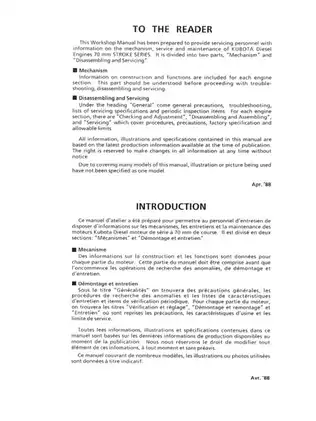

Kubota's 70 mm Stroke Series workshop manual covers Z500-B, Z600-B, ZH600-B, D650-B, D750-B, D850-B, DH850-B, D950-B, V1100-B, VH1100-B and V1200-B diesel engines. The introduction is dated April 1988; document headers identify WSM 60201-0, with selected revised pages marked WSM 60201-3.

Text search, navigation and circuit detail: Neither PDF supports text search or has embedded bookmarks. Small component labels in the regulator schematics are partly difficult to distinguish, even when enlarged.

• Engine repair: Compression testing, cylinder-head removal, valve and seat reconditioning, piston and connecting-rod inspection, crankshaft service, and dry cylinder-liner replacement.

• Timing and governor: Gear-case disassembly, camshaft checks, timing-gear backlash measurements, governor linkage service, and serial-specific idle-gear specifications.

• Fuel injection: Bosch K-type pump timing and leak testing, injection-nozzle pressure adjustment, spray-pattern checks, and nozzle disassembly.

• Lubrication: Oil-pressure diagnosis, trochoid pump removal and inspection, rotor-clearance measurements, and oil-strainer service.

• Cooling system: Fan-belt checks, thermostat testing, radiator and cap leak tests, and water-pump disassembly and reassembly.

• Electrical diagnosis: Engine wiring and regulator circuits, alternator testing, glow-plug resistance checks, and starter-motor testing and repair.

Written for servicing personnel, this manual is suited to mechanics equipped for precision engine measurements and diesel fuel-system testing.

Engine Repair and Serial-Number Changes

The publication is divided into "Mechanism" and "Disassembling and Servicing." Construction drawings explain the vertical 4-cycle engine's cylinder block, piston movement and valve train; the repair sections cover disassembly, inspection and reassembly.

The idle-gear tables distinguish three shaft-and-bushing sizes by engine serial number. These distinctions help match the correct hardware and inspection limits before parts are selected.

Cylinder-head work includes flatness and crack checks, valve-stem and guide measurements, guide replacement and valve-seat correction. Torque tables cover cylinder-head fasteners and bearing-case screws.

Separate specifications cover VH1100-B intake-valve geometry and model-specific piston-ring end gaps. The V1200-B uses different piston profiles in its inner and outer cylinders.

Crankshaft service covers bearing clearances, journal inspection, sleeve replacement and undersize-bearing options. Dry-liner repair includes replacement, boring and honing. Piston-installation cautions identify the risk of scratching chrome-plated ring surfaces and causing liner trouble.

Bosch Injection Pump, Nozzles and Governor

Pump-element and delivery-valve tightness tests are documented separately. Nozzle testing uses tester 07909-31361 and includes needle-valve-seat leakage checks as well as opening-pressure adjustment.

The all-speed centrifugal ball governor is explained through starting, idling, load changes and stopping. Component removal and installation cover the governor springs, fork-lever assembly and fuel camshaft.

The manual discourages routine injection-pump disassembly and requires fuel-delivery adjustment on a specified test bench after pump-element replacement. Observe its injection-spray precautions during nozzle testing; pressurized fuel presents an injection-injury hazard.

Oil Pressure, Cooling and Scheduled Maintenance

Lubrication data includes model-specific oil capacities and pressure limits at idle and rated speed. V1100-B and V1200-B engines have separate rated-speed pressure specifications, and the oil-pressure test identifies tester 07916-32031.

Cooling system values include exact thermostat opening temperatures, along with radiator-cap leakage criteria. Water-pump repair covers the impeller, shaft and mechanical seal, with seal replacement specified during reassembly.

Maintenance intervals cover oil and filters, fuel lines, air-cleaner service and cooling-system checks. The oil-filter instructions warn that overtightening can deform the rubber gasket.

Wiring Diagrams and Fault Diagnosis

Illustrations include the engine wiring diagram, regulator operating schematics, engine oil-flow diagram, injection-pump exploded view and governor operating diagrams. The regulator schematics distinguish key-switch-on, engine-starting, charging and overcharge-control conditions.

The regulator continuity chart identifies terminal colors and test combinations. Starter repair extends to the solenoid, armature, brushes, commutator and mica, supported by electrical inspection specifications.

The troubleshooting section cross-references common symptoms directly with their mechanical causes and service pages. Tables address hard starting, uneven running, exhaust smoke, oil-pressure problems and overheating.

Two-Part PDF Package

Supplied as two printable PDFs in a ZIP archive. The 92-page total comprises Part 1: 33 pages and Part 2: 59 pages, including one cover page, one reader-information page, one contents page and two section-divider pages. Revised pages are already included in these totals.
