1991-1994 Yamaha PW80(T) Service Manual (187 Pages)
Complete service procedures and technical specifications for Yamaha PW80 minibike. Covers engine maintenance, transmission adjustment, chassis repair, and component diagnostics. OEM documentation with torque specifications and wiring diagrams.

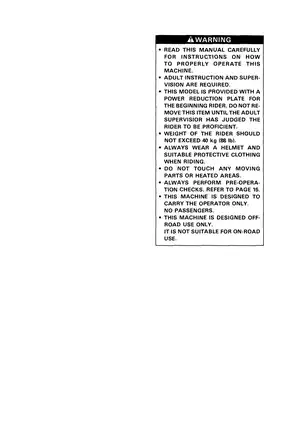

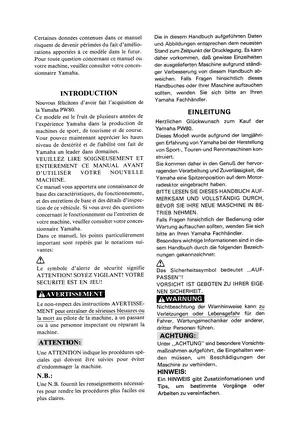

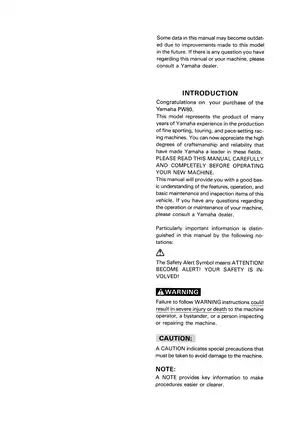

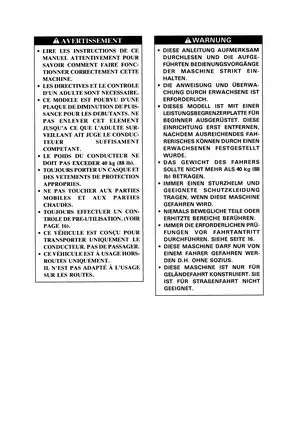

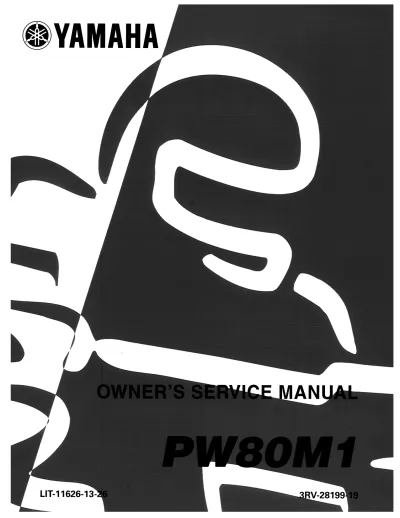

Manual Preview
Sample pages from the 1991-1994 Yamaha PW80(T) Service Manual (187 Pages) manual
Purchase & Download
Models Covered & Key Technical Specifications
Yamaha PW80(T) — 1991–1994 Certified Diagnostic Primer | PW80 Series Kit.
- Established Environmental Range: 4.9 L (1.08 Imp gal, 1.29 US gal) is measured at the fuel tank maximum capacity Architecture.
- Operational Speed Rating: For optimal engine performance, 79 cm³ (2.78 Imp oz) is set to the cylinder displacement Norms.
- Certified Weight Data: The tire pressure specification limits at 100 kPa (1.0 kgf/cm², 15 psi) for ground contact Bounds.
- Factory Maximum Resolution: 0.95 L (0.84 Imp qt, 1.00 US qt) maintains the engine oil tank volume Topology.
- Approved Fluid Levels: The transmission oil capacity is established at 0.75 L (0.66 Imp qt, 0.79 US qt) Matrix.
- Measured Thermal Limits: Spark plug electrode gap controls 0.6–0.7 mm (0.024–0.028 in) spacing Standards.
Professional Workshop Service Manual & Technical Specifications
Consolidated Field Assembly Manual: Minibike Yamaha PW80(T) - Precision Maintenance & Recovery Guide (1991 - 1994) Parts-Reference
Year-Coverage: Yamaha PW80(T) (1991 - 1994) // Engineering-Base: Two-stroke engine air-cooled / Torque induction Logic // Subsystem-Focus: Comprehensive drivetrain, suspension, and electrical system documentation.
| Service-Nexus | Baseline | Calibration-Data |
|---|---|---|
| Carburetor adjustment and float height | VM15SC MIKUNI type with #125 main jet | Specifications documented in Chapter 4 |
| Transmission oil maintenance | 0.75 L total capacity, Yamalube 4 (10W30) grade | Service intervals outlined per usage |
| Electrical magneto and CDI system | Flywheel magneto charging coil resistance range | Inspection procedures and test values included |
| Drive chain tension control | 40-53 mm vertical deflection specification | Adjustment methodology provided |
Outlining the operational framework across the PW80(T), this manual integrates procedures covering spark plug specifications and ignition timing, involves brake system documentation and suspension components, confirms clutch assembly architecture and transmission ratios, and emphasizes drive chain maintenance protocols. The document provides comprehensive reference data for the minibike's two-stroke air-cooled engine, detailing fuel system components including the carburetor, transmission oil requirements, and electrical ignition architecture.
Fluid capacities are listed for the transmission oil system, fuel tank storage, and engine lubrication reservoir. Tool requirements are listed for specialized maintenance including dial gauge positioning, timing light connections, and rotor holding devices. Installation guidelines are provided for spark plugs, cylinder head fasteners, and carburetor assembly components. Maintenance guidelines are included for periodic interval servicing, pre-operation checks, and seasonal storage procedures. OEM guidelines are included for torque specifications across engine, chassis, and drivetrain components.
The manual documents torque specifications for engine fasteners, frame mounting points, and chassis assemblies to ensure proper mechanical security. Comprehensive wiring diagrams are included for the C.D.I. magneto ignition system, with color-coded conductor identification and spark gap testing procedures. Detailed specifications address cylinder bore tolerances, piston clearance calculations, clutch plate thickness measurements, and rim runout limits. A troubleshooting matrix covers fuel system verification, compression testing protocols, and ignition spark gap assessment without providing repair procedures. The document incorporates control function descriptions for the fuel cock, engine stop switch, transmission shifter, and brake systems across all three languages (English, German, French).
