Suzuki VS750GL / VS800GL Service Manual 1986–1992 (P/N 99500-37047-01E)
408 Pages • Printable PDF • 104.19 MB • Download
Suzuki Models Covered & Key Technical Specifications
Models: VS750GL, VS800GL
Models & Model Codes:
VS750GL — VS750GLF, VS750GLP, VS750GLEF, VS750GLEP, VS750GLG, VS750GLH, VS750GLJ, VS750GLFJ, VS750GLPJ, VS750GLK, VS750GLFL, VS750GLPL, VS750GLFM, VS750GLPM
VS800GL — VS800GLN
Sub-models / Variants: Flat-handlebar and pullback-handlebar configurations; spoke-wheel and cast-wheel versions
Model Years: 1986–1992 (1986, 1987, 1988, 1989, 1990, 1991, 1992)
-
Engine type: Four-stroke, water-cooled, OHC, 45-degree V-twin
-
Displacement: 747 cm³ (VS750GL base and VS750GLJ specifications); 699 cm³ (VS750GLH specifications); 805 cm³ (VS800GLN)
-
Compression ratio: 10.0:1
-
Transmission: 5-speed constant mesh
-
Final drive: Shaft drive
-
Carburetor: MIKUNI BDS34SS (front), BS34SS (rear) — VS750GL; BDS36SS (front), BS36SS (rear) — VS800GLN
-
Battery: 12V 57.6 kC (16 Ah)
-
Fuel capacity: 12.0 L (3.2 US gal); 11.0 L (2.9 US gal) for E-33 in the VS750GLFL/GLPL, VS750GLFM/GLPM and VS800GLN sections
-
Coolant capacity: 1700 ml (1.8 US qt)
-
Engine oil capacity (change): 2.4 L (2.5 US qt)
Suzuki Manual Features & Selected Content Preview
Suzuki’s VS750GL/VS800GL service manual, P/N 99500-37047-01E, combines the 1985 base chapters with integrated model-year sections through 1992.
PDF Readability and Included Pages
Search, navigation, and wiring detail: PDF text search is not available, and there are no embedded PDF bookmarks. Small wiring labels require zooming; some labels in the 1992 diagrams remain faint and difficult to read.
One printable 408-page PDF in English, including the front and back covers, three introductory pages, one blank page, and five duplicate page images.
V-Twin, Shaft-Drive, and Electrical Service
The following topics are selected coverage highlights, rather than a complete contents list. Additional subjects include battery servicing and speedometer/instrument-panel inspection.
-
Engine and transmission: Compression testing, engine removal and installation, cylinder-head repair, internal transmission inspection, and clutch service.
-
Shaft drive: Secondary and final bevel-gear overhaul, bearing and seal replacement, shim selection, backlash measurement, and tooth-contact adjustment.
-
Carburetors and fuel delivery: Disassembly, needle-valve inspection, float-height adjustment, fuel-level checks, carburetor synchronization, and fuel-pump and relay testing.
-
Cooling system: Radiator and cap pressure tests, thermostat inspection, water-pump bearing and mechanical-seal service, and fan-motor and thermo-switch checks.
-
Electrical troubleshooting: Charging-system fault tracing, ignition-component tests, starter-motor repair, starter-relay checks, and market-specific wiring diagrams, including side-stand ignition-interlock circuits.
-
Chassis: Step-by-step front-fork disassembly, steering-stem and wheel-bearing service, rear-suspension inspection, and swingarm-bearing replacement.
-
Brakes and clutch hydraulics: Front-disc caliper and master-cylinder service, rear-drum shoe and linkage repair, clutch-cylinder inspection, and circuit bleeding.
Written primarily for experienced mechanics, this manual also provides repair guidance for apprentice and DIY mechanics, with measuring equipment and special tools specified for the work covered.
Model-Year Changes and Coverage Gaps

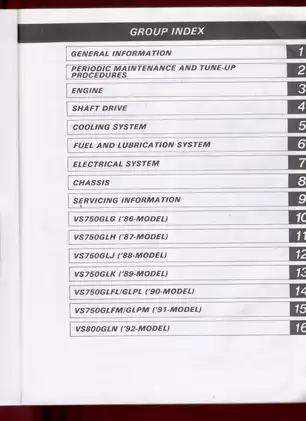

The model-year sections update the base chapters rather than repeat every procedure. They cover VS750GLG (1986), GLH (1987), GLJ (1988), GLK (1989), VS750GLFL/GLPL (1990), VS750GLFM/GLPM (1991), and VS800GLN (1992).

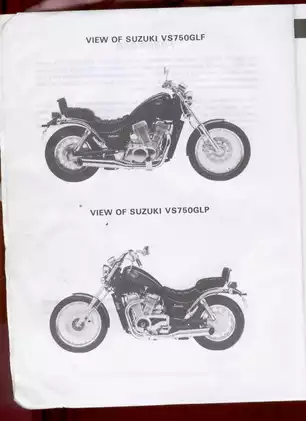

Earlier specifications distinguish GLF/GLP configurations and GLEF/GLEP cast-wheel versions. Cable Routing drawings separate flat- and pullback-handlebar layouts.
The VS800 section documents revised pistons, rings, and crankpin-bearing selection data, plus intake-pipe, cylinder, gasket, radiator, and swingarm-pivot changes. It identifies Mikuni BDS36SS front and BS36SS rear carburetors, replacing the earlier BDS34SS/BS34SS specification.
Incomplete sections: Original pages 3-73–3-74, 7-10, 7-20, and 9-26 are absent, leaving gaps in camshaft-timing material, electrical coverage, and base service data. The 1992 section also lacks pages 16-27–16-28, covering label information and the Air Supply System Diagram. Air Supply Hose Routing for Switzerland and Austria is included.
Engine Internals and Repair Cautions
Engine inspection sections give wear limits for pistons, rings, and camshafts, along with valve-seat inspection and refacing procedures. Bottom-end work extends to connecting-rod bearing color-code selection, crankshaft bearing inspection, and thrust-washer selection.
Transmission drawings identify gear, washer, and circlip positions, with shift-fork clearance checks supporting internal repair.
Repair cautions address damage to the left-hand-threaded primary-drive gear bolt during incorrect removal. The oil pump is treated as a replacement assembly; the manual warns that opening it can damage its threadlocked screws.
Before engine removal or heavy disassembly, ensure the motorcycle is securely supported on a proper lift and the battery is disconnected.
Fuel-System Updates and Synchronization Tools
The 1987 section documents the combined fuel-pump/fuel-cut-relay assembly and its revised inspection method. Tool references identify carburetor balancer 09913-13121 and adapter 09913-13140 for the synchronization procedures.
Electrical Updates and Diagnostic References
The 1988 section introduces CPU-controlled ignition and a dedicated test procedure using digital ignitor checker 09931-64410.
Reference illustrations include Camshaft Timing and Final Gear Case Breather Circuit. The Lubrication System Chart follows the oil circuit, while Wiring Diagram and Cable Routing drawings distinguish market and handlebar configurations.
Symptom/cause/remedy charts give a starting point for tracing hard starting, clutch slip, poor shifting, shaft-drive noise, overheating, and charging faults.
Maintenance Charts and Factory Reference Data
Periodic-maintenance charts define lubrication, fluid-change, and adjustment schedules by mileage and elapsed time. Service tables provide torque specifications for chassis bolts, engine mounts, and internal assemblies, plus fluid capacities, adjustment data, and electrical test values.
Suzuki’s special-materials tables identify sealants and thread-locking agents by application. Special-tool lists also identify the pullers, bearing tools, and measuring equipment used in the repair procedures.
Valve Clearance and Float-Height Examples
The VS750GL base section specifies intake and exhaust valve clearances of 0.08–0.13 mm, checked with the engine cold and the piston at compression TDC.
For the float-height check, with the float arm just contacting the needle valve, the base front carburetor is specified at 11.5 ± 1.0 mm, compared with 9.1 ± 1.0 mm for the VS800GLN front carburetor. Both sections specify 27.7 ± 1.0 mm for the rear carburetor.
