Polaris Sportsman 400, 500 DUSE & 500 H.O. ATV Service Manual – 2001 (P/N 9916581)
381 Pages • 1 Printable PDF (English) • Download
Polaris Models Covered & Key Technical Specifications

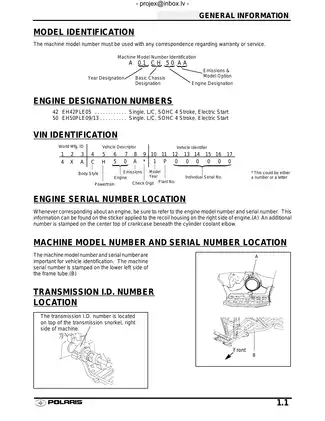

Models & Model Codes:

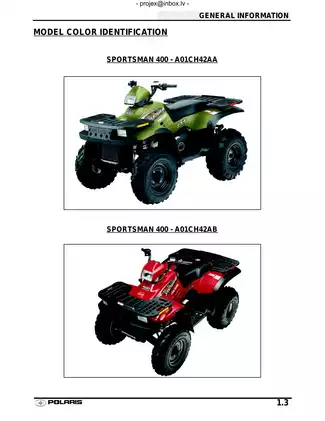

Sportsman 400 — A01CH42AA, A01CH42AB, A01CH42AC (engine EH42PLE05)
Sportsman 500 DUSE — A01CH50AD (engine EH50PLE09)
Sportsman 500 H.O. — A01CH50AA, A01CH50AB, A01CH50AE (engine EH50PLE13)
Sportsman 500 H.O. DUSE — A01CH50AF (engine EH50PLE13)
Sportsman 500 H.O. RSE — A01CH50AJ (engine EH50PLE13)
Sub-models / Variants: Gen IV
Model Year: 2001
-
Engine displacement (400): 425 cc
-
Engine displacement (500): 499 cc
-
Engine type: 4-cycle, liquid-cooled, single-cylinder SOHC
-
Cooling system capacity: 2.25 quarts (2.1 liters)
-
Transmission type: Automatic PVT (Polaris Variable Transmission) with High/Low/Reverse gearbox; non-EBS on Sportsman 400, EBS on Sportsman 500 DUSE and all 500 H.O. variants
-
Fuel tank capacity: 5.25 gallons (19.9 liters)
-
Drive clutch retaining bolt torque: 40 ft. lbs.
-
Idle speed: 1200 +/- 200 RPM (engine warm, lights off)
Polaris Manual Features & Selected Content Preview

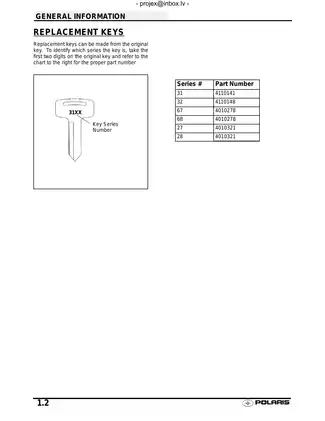

Polaris service manual P/N 9916581 covers the 2001 Sportsman 400, 500 DUSE, and 500 H.O., including the H.O. DUSE and H.O. RSE variants. It documents the Gen IV chassis and the EH42PLE05, EH50PLE09, and EH50PLE13 engine installations.
Search, Chapter Bookmarks, and Wiring Detail

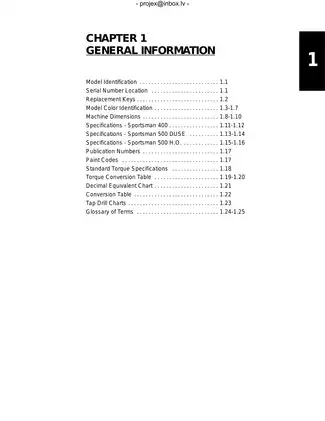

Text and schematic labels: The main text is searchable. Bookmarks open all ten chapters, the alphabetical index, and the three main wiring diagrams. Diagram titles are searchable, while the lettering inside the wiring drawings requires visual lookup. Small wire codes and connector labels are readable when enlarged. The speedometer schematic has lighter lettering than the three main sheets.
The download is one printable English PDF with 381 pages, including the opening chapter index, one notes page, a six-page alphabetical index, and three main wiring-diagram sheets.
From Engine Overhaul to AWD and Electrical Diagnosis
These are selected workshop topics. The manual also includes periodic maintenance schedules and sealed recoil starter repair.
-
Engine repair: Engine removal and installation, cylinder-head and valve-seat service, piston and ring inspection, crankcase disassembly, and camshaft timing.
-
Cooling system: Cooling-system and radiator-cap pressure tests, thermostat specifications, coolant-flow illustrations, water-pump seal replacement, and system bleeding.
-
Carburetion: Mikuni BST 34 and BST 40 disassembly, inspection, float adjustment, inlet needle and seat leak testing, and fuel-pump service.
-
PVT and gearbox: Standard and EBS clutch inspection, bushing replacement, belt alignment, and High/Low/Reverse gearbox disassembly and reassembly.
-
AWD and final drive: Hilliard clutch inspection, magnetic-coil service, front gearcase overhaul, wheel-bearing work, and CV joint boot replacement.
-
Steering, suspension, and brakes: Strut and ball-joint replacement, steering alignment, master-cylinder rebuilding, caliper service, and hydraulic bleeding.
-
Electrical diagnosis: Ignition and charging tests, starter-motor rebuilding, electronic speedometer diagnosis, gear-position switch tests, and model-specific wiring diagrams.
Internal repairs and diagnostic tests are geared to experienced technicians with measuring equipment. Polaris specifies authorized, Polaris-trained service technicians and factory-authorized special tools for PVT repairs.
Engine Inspection, Lubrication, and Cooling
Engine inspection data cover crankshaft runout, valve-stem diameter, and camshaft journal clearance. Piston and ring identification, cam-chain tensioner checks, and automatic compression-release service are documented alongside assembly illustrations and component-specific torque tables.
The EH42PL / EH50PL Oil Flow Diagram traces the dry-sump lubrication circuit. The manual specifies Polaris Premium 4 Synthetic 0W/40 engine oil and documents oil-pressure testing and pump priming.
For EH50PL engines, the manual gives step-by-step instructions for replacing the water-pump mechanical seal in the frame with puller P/N 2872105. It warns that side-loading the puller can bend the pump shaft. Shaft replacement requires engine removal and crankcase separation.
Mikuni Carburetors and Fuel Delivery
The Sportsman 400 and 500 DUSE use the BST 34. The 500 H.O. variants use the BST 40. Separate exploded views and altitude- and temperature-based jetting charts identify the setup for each model group.
The Fuel Flow Diagram traces the connections between the tank, valve, filter, pump, and carburetor. The fuel chapter also covers vacuum-slide and diaphragm inspection, pilot-mixture adjustment, and service and testing of the pressure-regulated fuel pump.
PVT Clutches and Gearbox Troubleshooting
The EBS Exploded View and model-specific spring and shift-weight charts support clutch identification and service. The standard PVT section covers belt-deflection adjustment. The EBS configuration uses fixed belt deflection and a driven clutch with no helix spring-position adjustment.
For a hard-shifting gearbox, the troubleshooting section helps distinguish a selector or linkage fault from internal wear before teardown. The overhaul procedures cover the selector box, gears and chains, front output housing (snorkel), shaft end play, and output-gear backlash.
AWD Hubs and Driveshafts
AWD diagnosis covers magnetic-coil testing, armature-plate inspection, and pole-gap checks. The manual warns that outward movement of the installed hub can disengage the armature-plate tabs and damage the Hilliard roller clutch if the ATV is driven.
Front and rear driveshaft procedures cover CV joint cleaning, boot replacement, and grease selection. Front hub service specifies Demand Drive Hub Fluid.
Chassis and Dual Hydraulic Brakes
Chassis procedures cover MacPherson strut cartridge and ball-joint replacement, A-arm service, and toe alignment. Torque references cover wheel nuts and suspension fasteners.
The Cutaway View of DH Caliper shows how the hand brake and auxiliary foot brake act through separate hydraulic circuits. The brake chapter documents the bleeding requirements for both circuits, pad wear checks, disc thickness and runout inspection, and caliper and master-cylinder service.
Electrical Tests and Wiring Diagrams
Ignition and charging flowcharts accompany starter-circuit voltage-drop tests and starter-motor brush and armature inspection. The electrical chapter also covers cooling-fan circuit diagnosis, including fan motor current draw.
Electronic speedometer diagnostics cover wheel-speed sensing, reverse speed limiting, and AWD engagement. The Electronic Speedometer Wiring Diagram supplements the connector-pin tests. Separate main wiring sheets cover the Sportsman 400 and early- and late-production Sportsman 500 configurations.
A Preview of Valve and Float Settings
The valve adjustment section specifies 0.006 in. (0.15 mm) for both intake and exhaust valves on the covered engines, checked cold at top dead center on the compression stroke.
The float-height specification is 13.0 ± 1 mm for the BST 34 and 14.7 ± 1 mm for the BST 40. The measurement is referenced to the float-bowl mating surface and the top of the float step, with the inlet-needle spring uncompressed.
