Land Rover Ninety / Defender 110 / 127 1984–1990 Workshop Manual Set (P/N SLR621ENWM)

The five books combine maintenance and specification data with component overhaul instructions and electrical diagnosis. Match the procedures to the vehicle’s engine, transmission, axle, steering and electrical configuration.

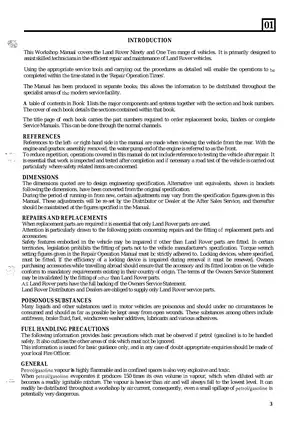

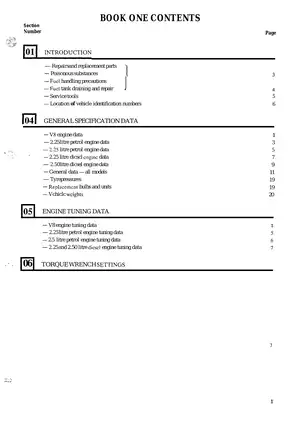

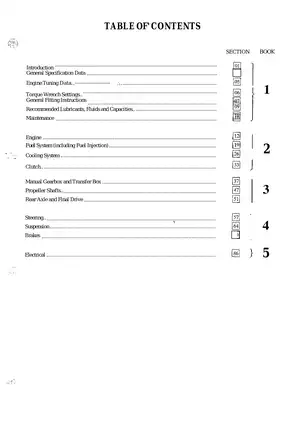

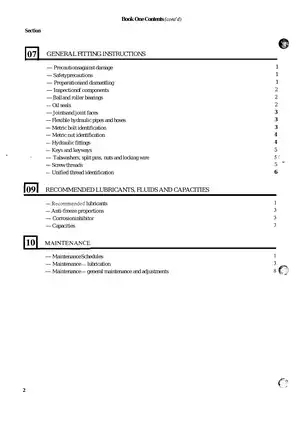

PDF Search, Diagram Detail and Contents

Text search and wiring detail: An OCR text layer supports searches across most sections, with gaps in some tuning data and illustration labels. There are no embedded PDF bookmarks. Small wiring labels require zooming, and several diagrams need page rotation.

One printable English PDF contains 618 pages, including the cover, seven blank pages, two imprint-only pages and the integrated engine supplements.

Powertrain, Chassis and Electrical Work

The selected topics below form part of the manual’s coverage. Other sections address engine protection and clutch-pedal adjustment.

• Engine repair: Step-by-step teardown and rebuild procedures, cylinder-head overhaul, crankshaft and camshaft inspection, timing-drive setup, and valve adjustment.

• Drivetrain: Removal and internal overhaul of LT77, LT85 and LT95 gearboxes, LT230R/LT230T transfer cases, propeller shafts, and configuration-specific differentials.

• Steering and suspension: Burman, Adwest and Gemmer units; power-steering testing and bleeding; hub, CV-joint, swivel, rear-link and leveling-unit service.

• Brakes and clutch: Separate Ninety/One Ten brake procedures, front-caliper and rear-brake overhaul, clutch master/slave-cylinder repair, and hydraulic bleeding.

• Heating and air conditioning: Heater overhaul and original R12 system diagnosis, covering compressor/clutch, condenser, receiver-drier, evaporator, expansion valve and blowers.

• Electrical diagnosis: Distributor, alternator, starter, lighting and wiper-motor repair; charging, ignition and starting fault tracing; configuration-specific circuit diagrams.

• Maintenance and reference data: Lubrication schedules, radiator replacement and cooling diagnosis, torque tables, tuning data, fluid capacities, wear limits, bearing preload/shim specifications and electrical test values.

Land Rover designed this manual primarily for skilled technicians. The overhaul procedures assume workshop lifting and support equipment, presses, pullers, measuring instruments, electrical test gear and the specified service tools.

Engine and Fuel-System Scope

The 2.5L gasoline supplement must be used with the 2.25L engine overhaul procedures. The naturally aspirated 2.5L diesel has its own overhaul chapter.

The turbocharged-diesel supplement adds tuning data, lubrication and maintenance requirements, turbocharger removal and installation, wastegate-actuator replacement, boost checks and fault tracing. It supplements the base diesel material rather than providing a separate complete turbo-engine overhaul manual. Internal Garrett T2 turbocharger disassembly is excluded.

V8 fuel-system work covers Zenith and S.U. carburetor overhaul and tuning. The injection procedures apply to diesel equipment, not gasoline EFI. Mechanical and electric lift pumps, twin-tank/twin-pump hardware, injector testing and diesel pump fault diagnosis are also covered.

Transmission and Axle Variants

Separate chapters distinguish LT77/LT230R, LT95 and LT85/LT230T arrangements. Internal repair material reaches synchromesh assemblies, bearings, selectors, differential locks, oil pumps, output shafts, preload checks and selective shimming.

Axle coverage separates the Ninety heavy-duty and standard rear differentials, the One Ten Salisbury unit, and the common Ninety/One Ten front differential procedures. Serial-specific notes distinguish revised LT95 differentials and rear hubs with inner and outer seals, helping identify the applicable components before repair.

Steering, Suspension and Body Details

Steering procedures distinguish early and later designs. Suspension material includes the optional Boge Hydromat self-leveling unit, while chassis drawings provide Ninety and One Ten alignment dimensions.

The body section covers 1986-onward doors, glass, latches, locks and window regulators.

Diagrams and Workshop Tooling

Named references include the LT230R transfer-gearbox general arrangement, V8 power-steering test layout, air-conditioning electrical circuit, alternator fault-and-diagnosis chart, 1986-onward composite circuit diagram, and twin-tank/twin-pump circuit.

Tool references include rear-main-seal guide 18G 1344, diesel timing gauge MS67B, differential setting gauge 18G 191, and hub-seal replacer LST 550-5. Dimensioned drawings support local fabrication of transmission cradles, gearbox stands and transfer-case hoist adapters.

Several 2.25L engine tools are identified as no longer obtainable, with their use retained for equipped workshops. The separately referenced special-service-tool catalog, Land Rover P/N LSM0052TC, is not included.

Repair Cautions and Safety

The front-axle chapter warns that securing the stub axle with the CV-joint journal incorrectly engaged can damage its bronze bushing. The One Ten Salisbury procedure explains how excessive pinion preload can crush the collapsible spacer too far, requiring another new spacer.

Follow the manual’s battery-isolation and vehicle-support precautions. Original R12 air-conditioning work requires appropriate equipment and trained handling. The pressurized Boge leveling unit must not be dismantled.

Selected Diesel Bearing Clearances

For the naturally aspirated 2.5L diesel, the engine specifications list a main-bearing diametrical clearance of 0.018–0.061 mm. The connecting-rod big-end bearing specification is 0.025–0.075 mm diametrical clearance.
