2003 Harley-Davidson VRSCA V-Rod Service Manual (P/N 99501-03)

• Factory publication and coverage: A 447-page PDF of the official 2003 Harley-Davidson VRSCA Model Service Manual, P/N 99501-03, copyright 2002. It applies to all 2003 VRSCA models and includes VIN decoding for U.S. and international builds, along with the California model designation.
• Revolution engine repair: Covers motorcycle stripping, engine removal, top-end disassembly, cylinder-head and valve-seat service, oil-pump replacement, clutch overhaul, crankcase separation, shift-drum service, crankshaft and counterbalancer bearings, piston/cylinder-liner inspection, cam-drive assembly, and cam timing.
• Frame and chassis service: Details the hydroformed steel perimeter frame and bolt-on lower rails, engine mounts, brake master cylinders and calipers, wheels and sealed bearings, tire service, fork disassembly, steering-head work, rear fork, shocks, controls, and final-drive belt.
• Maintenance and adjustment: Includes scheduled service, brake and clutch bleeding, rear-belt deflection and wear inspection, steering fall-away, fork-oil replacement, throttle-cable adjustment, valve-lash measurement and shim selection, secondary cam-chain adjustment, headlamp alignment, critical-fastener checks, and system troubleshooting.
• Cooling, fuel, and EFI work: Provides cooling-system pressure and leak testing, blown-gasket checks, thermostat, water-pump, radiator and oil-cooler service, fuel tank/pump/filter/sender work, California evaporative-emissions equipment, ECM and TP/IAT/ECT/IAC/MAP component service, fuel-rail and injector work, fuel-pressure testing, and intake-leak testing.
• Starter and electrical service: Covers the starter relay, motor, and solenoid; relay/fuse block; alternator and voltage regulator; battery and cables; sensors, switches, lighting, turn-signal/security module, instrument cluster, horn, and cooling fans.
• Wiring and diagnostic scope: Includes terminal service for Amp Multilock, Deutsch, Mini-Deutsch, and Packard connectors, connector-location tables, and eight VRSCA wiring sheets. Detailed electronic fault diagnosis is handled by the separate VRSCA Electrical Diagnostic Manual.

Major Repair Coverage

This factory service manual goes well beyond routine ownership maintenance. The engine section starts with oil-flow and oil-pressure information, service wear limits, compression testing, and cylinder-leakage testing, then moves into repair procedures supporting full top-end and bottom-end work. Cylinder-head repair includes removal, disassembly, inspection, valve-seat cutting, and reassembly. The crankcase chapters cover the shift drum, input and output shafts, counterbalancer, crankshaft bearings, pistons, cylinder liners, oil pump, clutch, and cam drive.

Chassis coverage is equally practical. Frame-rail removal, engine replacement, brake hydraulic component repair, front-fork service, steering-head bearing work, wheel-bearing replacement, tire service, rear-fork removal, and shock replacement are documented with inspection criteria, assembly notes, and final checks. The cooling chapter adds pressure-cap testing, system pressure testing, leak-detection dye procedures, blown-gasket checks, and service for the thermostat, water pump, coolant pipes, hoses, radiator, and oil cooler.

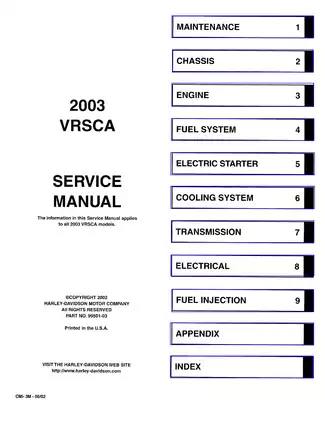

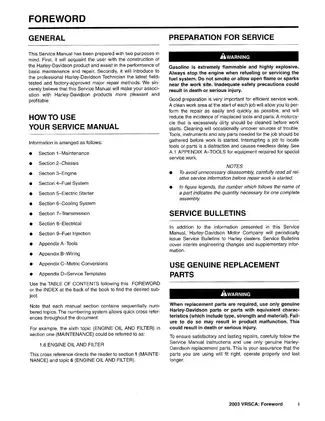

The numbered section system makes cross-reference between maintenance, chassis, engine, cooling, transmission, electrical, and EFI work straightforward. Representative illustrations include Steel Perimeter Frame and Bolt-on Lower Frame Rails, Correct Cam Timing, Transmission Input Shaft and Output Shaft Assemblies, the two-page Main Harness, Starting Circuit, and Security Circuit diagrams. That cross-system detail matters during major repair work, where engine removal involves the frame rails, cooling pipes, harness connectors, fuel lines, and rear brake components.

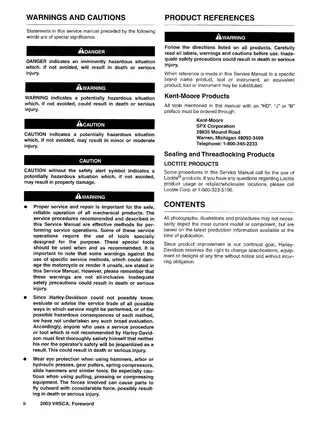

Reference Data, Tools, and Repair Cautions

Section-specific reference data covers torque specifications, fluid capacities, service wear limits, running clearances, valve and cam data, battery test and charging tables, fastener conversion tables, and U.S., metric, and British Imperial fluid conversions. Appendix D adds valve-tappet shim tables and two valve-lash calculation worksheets.

The 12-page tool appendix identifies factory equipment by part number, including the Engine Assembly Support Fixture (HD-45317), Crankshaft Locking Pin (HD-45306), Transmission Assembly Retainer (HD-45301), Cooling System Pressure Tester (HD-45335), and Tappet Compressing Tool (HD-45491). These listings help a shop determine what specialized equipment is expected before starting internal engine, transmission, cooling-system, or valve-lash repair.

The valve-lash chapter specifically warns that rotating the engine with a secondary cam-chain tensioner removed can lose timing and damage the engine. The crankcase section requires crankshaft-bearing replacement after the cases have been separated and identifies mispositioned transmission-bearing locating pins as another engine-damage risk. Fuel-pressure, hot-coolant, brake/clutch hydraulic, lifting, and electrical-isolation warnings should be reviewed before repair work begins.

Electrical Diagnostic Scope

The included wiring diagrams and connector procedures support harness repair, component replacement, and circuit tracing. The indexed sheets cover the two-page main harness plus ignition, charging, starting, lighting, horn/instrument, and security circuits. For detailed electronic fault diagnosis and system-level electrical troubleshooting, the electrical and EFI chapters direct the technician to the separate VRSCA Electrical Diagnostic Manual. It is not a substitute for that dedicated diagnostic publication.
