Case IH 1255/1255XL & 1455/1455XL (1987) Tractor Workshop Manual Set (P/N Don 8-59030)
641 Pages • 1 Printable PDF (English) • Download
Case Models Covered & Key Technical Specifications
Models: IH 1255 (DT-358 engine), IH 1455 (DT-402 engine)
Sub-models / Variants: Case IH 1255XL (DT-358 engine, XL Control Center "D-Fam."), Case IH 1455XL (DT-402 engine, XL Control Center "D-Fam."); 6-cylinder turbocharged diesel engines; dual clutch with turbo clutch where equipped; injection-pump versions: 1255/1255XL (VE6/12F 1100R 52), 1455/1455XL (VE6/12F 1100R 47 without aneroid, VE6/12F 1100R 102 with aneroid)
Model Year: 1987
-
Engine displacement (shared engine-family reference data): D-155 (2536 cc), D-179 (2934 cc), D-206 (3382 cc), D-239 / DT-239 (3911 cc), D-246 (4034 cc), D-268 (4389 cc), D-310 (5073 cc), D-358 / DT-358 (5867 cc), DT-402 (6587 cc)
-
Compression ratio: 16:1 (except D-268 and DT-402 at 15:1)
-
Cooling system operating temperature: 90–95°C (194–203°F), most favorable range
-
Valve lash (engine warm): 0.30 mm (0.012 inch)
-
Flywheel bolt torque: 30 lbf-ft first stage, 60 lbf-ft second stage, 103–110 lbf-ft final stage (oiled bolts)
-
Main bearing cap bolt torque (10.9 grade, pitch-diameter bolts): 29 lbf-ft first stage, 58 lbf-ft second stage, 101–109 lbf-ft final stage (oiled bolts)
Case Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

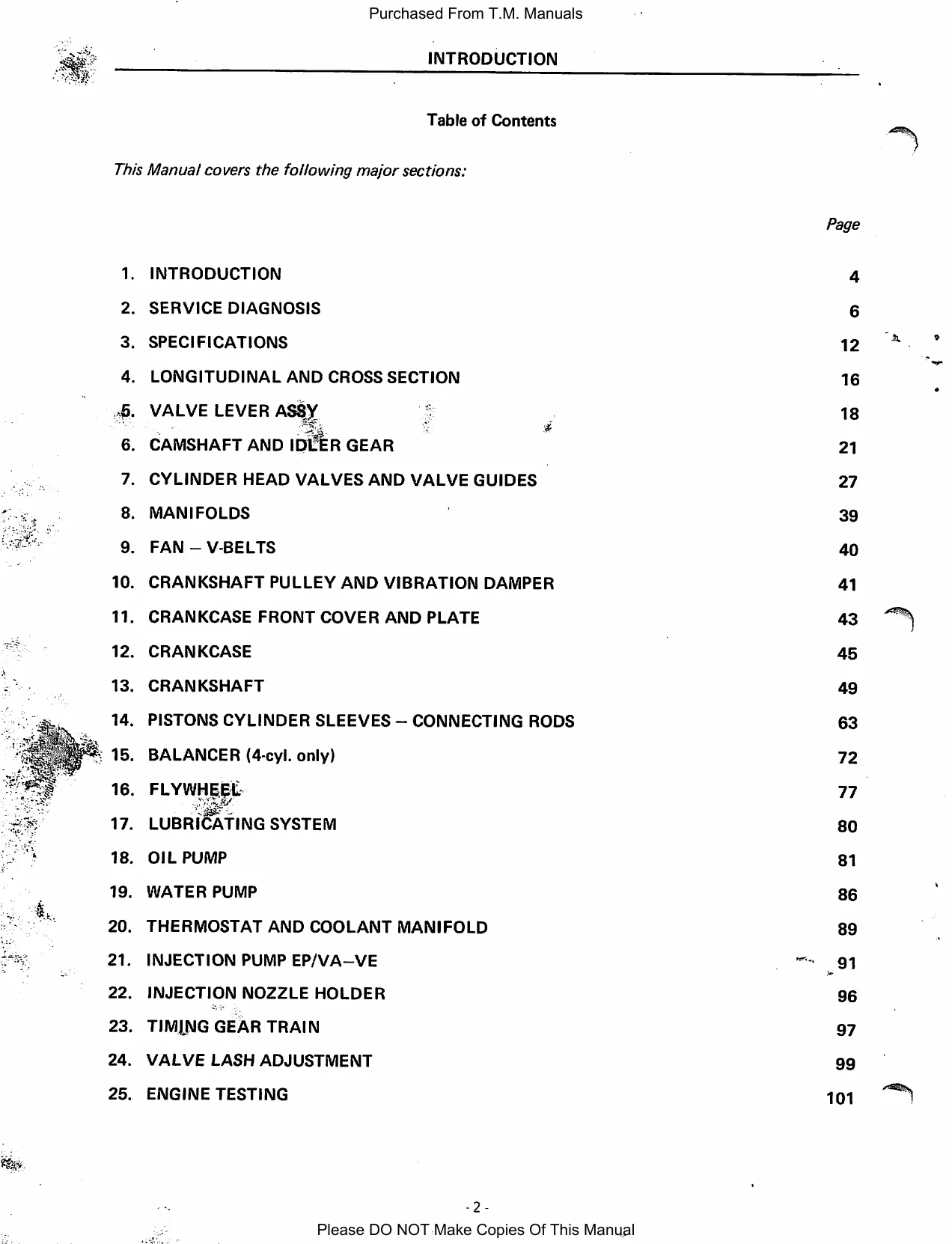

| Basic Engine, Section 2000 (P/N Don 8-59030) | 105 |
| Fuel System and Turbochargers, Section 3000 (P/N Don 8-59040) | 328 |
| Electric Equipment, Section 4000 (P/N Don 8-59050) | 48 |
| XL Control Center, Section 9905 (P/N Don 8-59110) | 58 |
| Chassis, Section 9915 (P/N Don 8-59120) | 101 |
These five November 1987 Case IH publications cover service work on the 1255, 1255XL, 1455, and 1455XL tractors. The first three cover the shared Neuss diesel engine family and its fuel and electrical equipment. Chassis covers all four tractors, with XL cab procedures in the separate XL Control Center publication.
Coverage limits: The set refers transmission, hydrostatic steering, and hydraulic draft-control overhaul to separate manuals. The dedicated four-wheel-drive axle section is listed for later publication. Rear-wheel brake removal is covered in Chassis, with internal inspection and repair in the separate Tractor Power Train manual. For complete tractor wiring diagrams, use the operator’s manual for your model.
Section Bookmarks and Diagram Detail
Reading and navigation: Embedded bookmarks open the cover and all five publications. The technical text cannot be searched in the PDF. Small circuit labels and connector-table entries are easier to read when zoomed in. Marks partly obscure the injection-pump gear timing text on PDF p. 100.
The download is one printable English-language PDF with 641 pages, including one additional cover page.
Engine Overhaul, Electrical Testing, and Chassis Service
Selected workshop topics are listed below. The set also covers engine oil priming before startup and cooling-fan inspection.
- Engine repair: Cylinder-head reconditioning, valve-train service, crankshaft and piston/sleeve overhaul, lubrication and cooling-system repair, and engine testing.
- Fuel injection: Bosch EP/VA and VE pump overhaul, static timing, aneroid service, injector testing, and application-specific bench-calibration sheets.
- Turbochargers: AiResearch T-04/T-04B and KKK (Schwitzer) inspection, bearing-clearance checks, overhaul, and installation.
- Electrical equipment: Bosch generator, G1/K1 alternator, and JD/JF starter testing, troubleshooting, overhaul, and component circuit diagrams.
- Brakes and chassis: Hydraulic brake controls, front-wheel brake service, rear-brake removal, trailer-brake testing, and axle and propeller-shaft work.
- Clutches and controls: Turbo-clutch and dual-clutch repair, wear checks, release adjustments, and PTO, four-wheel-drive, and differential-lock linkages.
- Standard and XL cabs: Cab removal and installation, mounting alignment, glazing, and model-specific access procedures.
The material suits skilled tractor technicians with the precision measuring equipment and workshop facilities needed for engine machining and injection-pump calibration.
Engine Machining and Diagnostic Tests

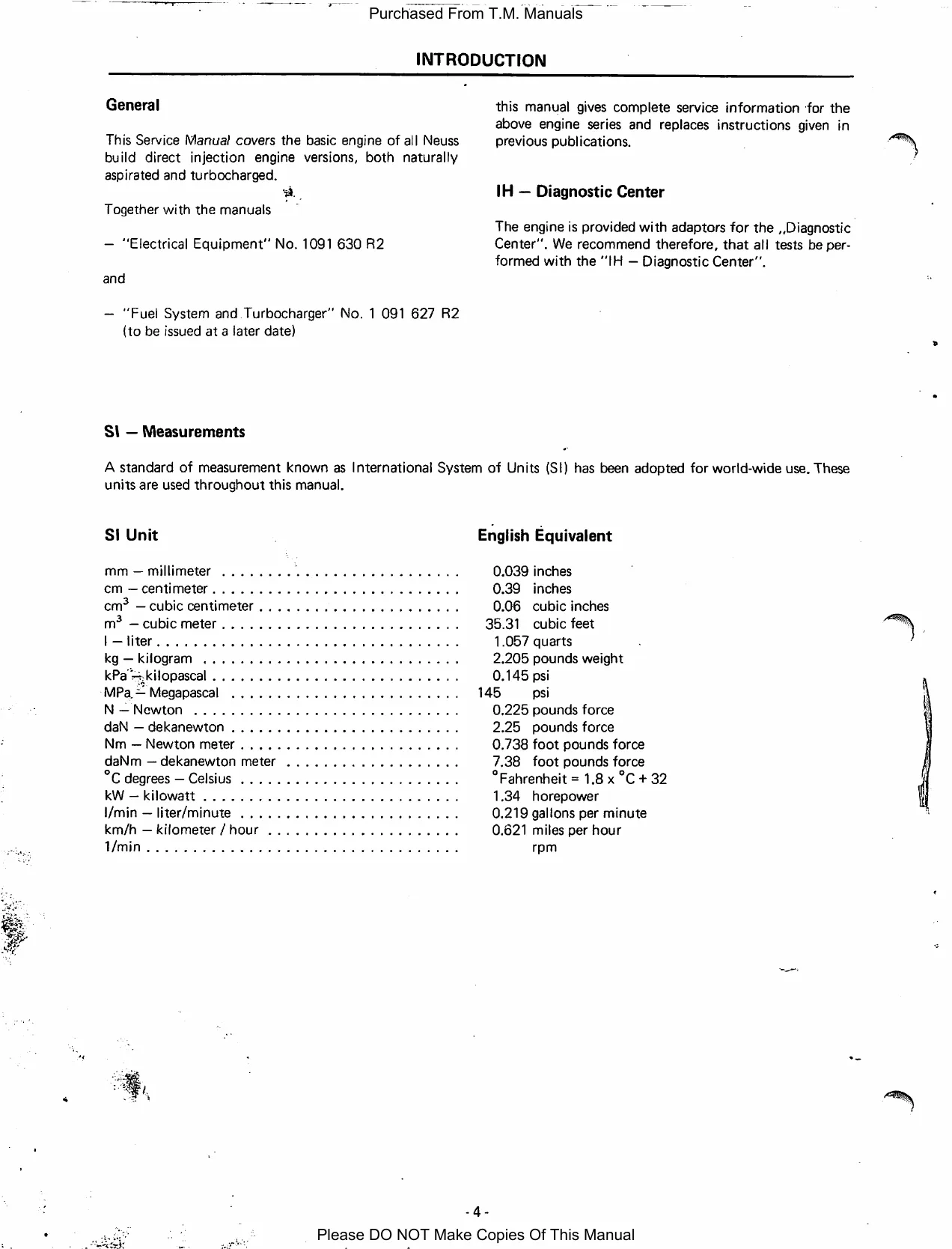

The 25-topic Basic Engine publication covers naturally aspirated D-series and turbocharged DT-series engines. Its four-cylinder balancer chapter is shared engine-family material. The listed tractors use six-cylinder turbocharged engines.

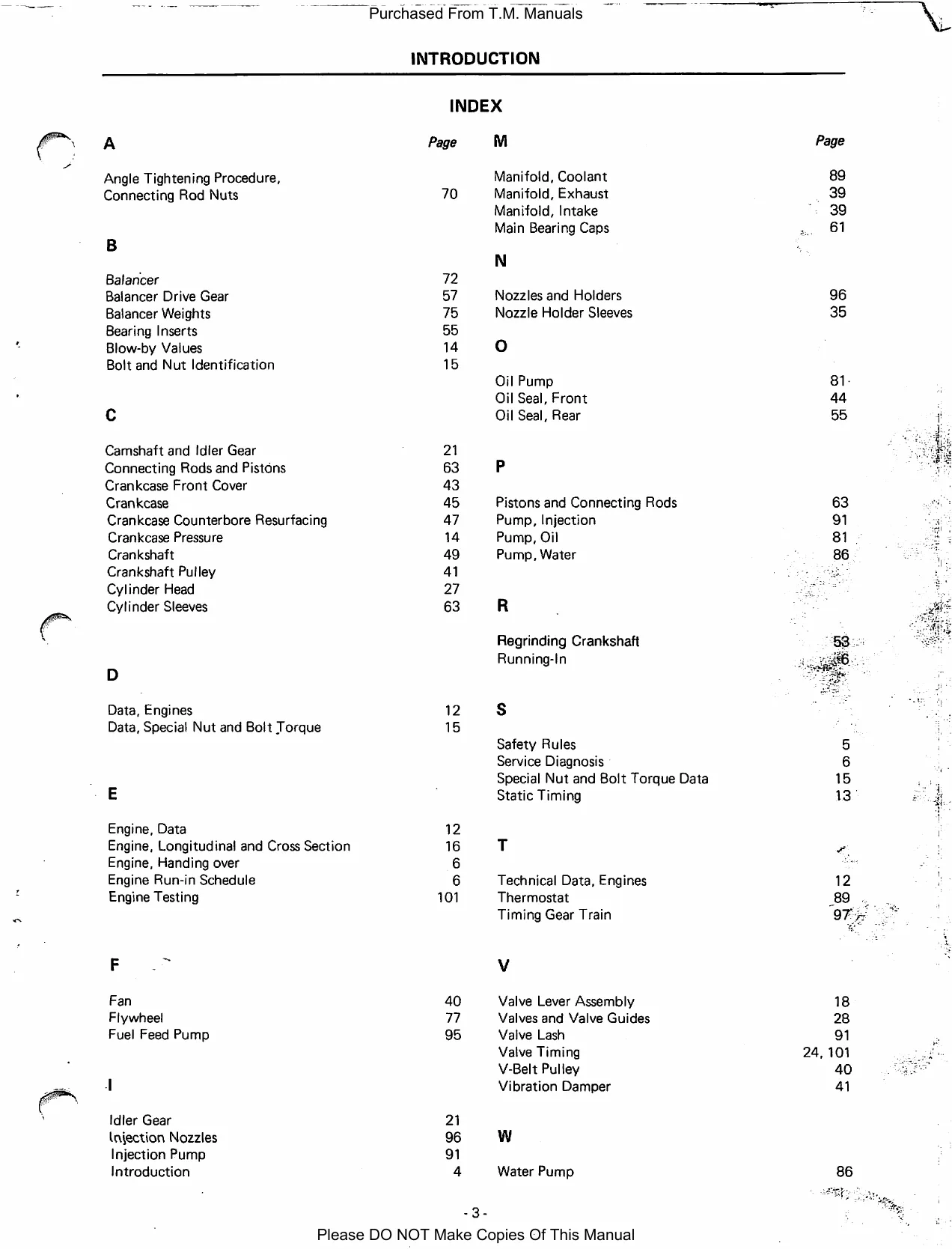

Internal repairs: Procedures include valve lever assembly overhaul, camshaft-bushing line boring, crankcase counterbore resurfacing, and piston-to-sleeve fitting. The manual also covers crankshaft pulleys, vibration dampers, flywheels, oil pumps, water pumps, thermostats, and manifolds.
Bolt-identification charts match fastener designs and grades to the correct torque tables. Valve dimensions, oversize seat-insert counterbores, and timing-gear alignment illustrations support reconditioning and assembly checks. The DT-402 instructions flag the controlled-length No. 1 connecting rod, which provides clearance at the oil pump.
Engine run-in schedules accompany compression, oil-pressure, boost, and crankcase tests. The crankcase pressure and blow-by chart helps interpret readings alongside oil consumption.
Injection Calibration and Turbocharger Service
The calibration sheets identify VE6/12F 1100R 52 for the DT-358 and distinguish the DT-402 pumps VE6/12F 1100R 47 without an aneroid and VE6/12F 1100R 102 with an aneroid. Matching the pump designation before bench testing helps identify the correct calibration sheet.
Injector procedures cover flange- and crab-mounted holders, opening pressure, spray pattern, and nozzle-tip protrusion. The VE overhaul identifies tool KDEP 2939 for protecting the pump shaft seal. Turbocharger instructions address intake-system debris after compressor failure because retained material can damage a replacement wheel.
Bosch Charging Circuits and Tractor Connectors
Alternator circuit diagrams distinguish integral transistorized regulators from separate mechanical regulators. Chassis adds instrument-panel and fuse-box service, with separate central-distributor connector tables for standard and XL tractors.
Brake, Clutch, and Cab Differences
The brake chapters distinguish standard and XL hydraulic controls and cover high- and low-pressure pneumatic trailer-brake systems, including compressor service, leak testing, bleeding, and parking-brake linkage.
The turbo-clutch section includes a stall check and shaft-play measurement. Dual-clutch procedures include release-lever adjustment and flywheel rework, with service-tool drawings. For the 1455 internal clutch-release bearing, Chassis refers to a separate ZF manual. Tire-combination charts and propeller-shaft troubleshooting support chassis diagnosis.
The XL Control Center publication groups the 1255XL and 1455XL in the D family. Its B- and C-family cab-tilting and hydraulic procedures apply to other models.
Follow the manufacturer’s support and lifting precautions for tractor splitting and cab removal and its pressure-release precautions for brake and hydraulic work.
A Preview of Compression Limits and Turbo-Clutch Fills
For the cranking compression test at engine operating temperature with a fully charged battery, Basic Engine recommends repair if a reading is below 1.8 MPa (255 psi) or if cylinder readings differ by more than 0.25 MPa (36 psi).
For the turbo clutch, Chassis specifies DEXRON ATF and lists initial fills of 8.8 + 0.1 liters for the 1255/1255XL and 9.2 + 0.1 liters for the 1455/1455XL. The same table gives separate quantities for oil changes.
