Polaris Magnum 330 2x4 & 4x4 ATV Service Manual 2003–2006

317 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(2)
$18.40 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Polaris Models Covered & Key Technical Specifications

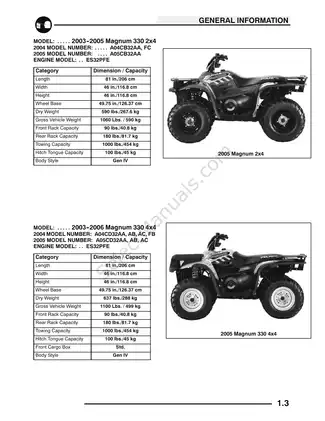

Models: 2003 Magnum 330 2x4, 2004 Magnum 330 2x4, 2005 Magnum 330 2x4, 2003 Magnum 330 4x4, 2004 Magnum 330 4x4, 2005 Magnum 330 4x4, 2006 Magnum 330 4x4

Models & Model Codes:

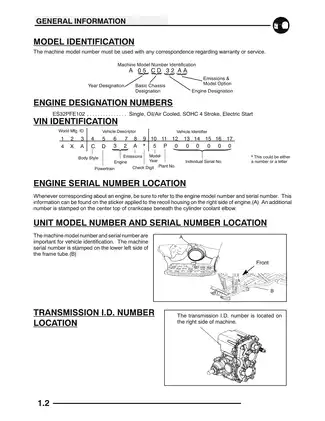

Magnum 330 2x4 — A04CB32AA (Domestic), A04CB32AC, A04CB32FC (International HDS VL), all with engine ES32PFE102. A05CB32AA (engine ES32PFE103).

Magnum 330 4x4 — A04CD32AA, A04CD32AB, A04CD32AC (Domestic), A04CD32FB (International HDS VL), all with engine ES32PFE102. A05CD32AA, A05CD32AB, A05CD32AC (engine ES32PFE103).

Sub-models / Variants: HDS, 2x4, 4x4

Model Years: 2003–2006 (2003, 2004, 2005, 2006)


  • Engine displacement: 329cc

  • Engine type: Fuji 4-stroke, single cylinder, SOHC

  • Compression ratio: 9.2:1

  • Transmission type: Drumshift H/L/N/Rev/Park

  • Drive system: PVT (Polaris Variable Transmission), 2x4 and 4x4 options

  • Fuel type: 87 octane minimum, 89 oxygenated

  • Starter: Electric with recoil backup

Polaris Manual Features & Selected Content Preview

This Polaris Magnum 330 service manual covers the 2003–2006 model range, with separate service information for 2x4, 4x4, and HDS configurations.

PDF Search, Bookmarks, and Wiring Detail

Finding procedures and reading schematics: The service text and wiring-diagram headings are searchable. The wire labels and termination tables are image-based and require zooming to read the smaller print. Three bookmarks jump to broad page ranges.

The download contains one printable English PDF with 317 pages, including the opening section overview, three notes pages, and a six-page index.


Engine Overhaul, Drivetrain Service, and Electrical Diagnosis

These are selected highlights from the manual. Other topics include auxiliary brake testing and troubleshooting the oil cooler fan control.

  • Engine repair: Engine removal and teardown, cylinder head reconditioning, crankshaft inspection, camshaft timing, and reassembly.
  • Fuel system: Mikuni BST carburetor disassembly, float adjustment, inlet needle and seat leak testing, fuel-level checks, and fuel pump service.
  • PVT clutches: Belt inspection and deflection adjustment, clutch alignment, and drive and driven clutch service for non-EBS and EBS units.
  • Transmission and final drive: Separate 2x4 and 4x4 transmission overhaul procedures, plus Centralized Hilliard and HDS Visco Lok front gearcase service.
  • Steering and suspension: Toe alignment, steering assembly views, MacPherson strut and ball joint replacement, and A-arm and swingarm service.
  • Hydraulic brakes: Bleeding, pad replacement, disc inspection, and front and rear caliper overhaul.
  • Electrical diagnosis: Instrument-cluster troubleshooting, ignition and charging tests, starter diagnosis, and wiring diagrams by model and market.

The overhaul sections are suited to mechanics familiar with internal engine measurements and drivetrain work. The manual identifies the pullers, clutch fixtures, and electrical test equipment used for those jobs.

Engine Repair and Carburetion

Engine inspection: The overhaul chapter covers cylinder honing, valve-seat reconditioning, crankcase bearing inspection, and crankshaft end-play measurement. It gives one camshaft timing method with the stator removed and another using the flywheel timing mark.

Maintenance and diagnosis: The Periodic Maintenance Chart sets out recurring service intervals, and the Oil Flow Diagram shows the engine’s lubrication path. Compression and oil-pressure tests accompany wear limits and assembly torque patterns.

Carburetion: The Mikuni BST 34 mm section explains how the CV carburetor and its vents work and covers cleaning, inspection, and reassembly. The jetting chart accounts for altitude and temperature. Fuel pump coverage includes diaphragm inspection and an exploded view.

PVT Clutches and Transmission Repair

The clutch chapter separates non-EBS service from procedures labeled for 2004 HDS models. It covers sheave inspection and bushing replacement and identifies the clutch bushing replacement kit, P/N 2871226. Opening the EBS driven clutch from the outer snap-ring side can damage its one-way clutch seals.

The 2x4 and 4x4 transmission procedures include exploded views and troubleshooting checklists. Separate coverage of the shift linkage and gear selector helps narrow down shifting complaints before opening the transmission.

Front Gearcases, Chassis, and Brakes

Front gearcase identification: The manual specifies Premium Demand Drive Hub Fluid for the Centralized Hilliard gearcase and ATV Angle Drive Fluid for the HDS Visco Lok gearcase. It covers Visco Lok gearcase disassembly and assembly and specifies assembly replacement if the sealed differential is damaged.

Chassis and brakes: Separate steering views show the 2x4 and 4x4 layouts. The final-drive chapter gives separate front CV boot procedures for 2004 and 2005 models and covers rear axle bearings and the rear gearcase. Caliper overhaul includes inspection of the piston, bore, and seals.

Follow the factory safety precautions before lifting the vehicle or dismantling spring-loaded clutch components.

Starter, Charging, and Wiring Diagnosis

The electrical chapter provides separate instrument-cluster diagnostics for domestic and HDS international models. The starter flowchart uses voltage-drop checks to help isolate cable, solenoid, and starter faults. Charging output, lighting specifications, and the ignition timing curve support further diagnosis.

Wiring diagrams and wire termination tables are provided for 2004 domestic, 2004 HDS international, and 2005 models.

A Preview of Engine Fits and Drivetrain Specifications

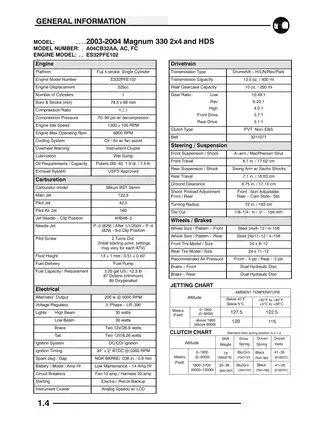

The engine service data lists a rocker arm inside diameter of 0.8669–0.8678 in. (22.020–22.041 mm). Intake valve clearance is 0.006 in. (0.15 mm) with the engine cold and the piston at top dead center on the compression stroke.

The Magnum 330 transmission lubricant capacity is 13.5 oz. (400 ml). The engine assembly section specifies 58–72 ft-lb (78–98 N·m) for the flywheel nut.
