Polaris 2013 RZR, RZR S & RZR 4 UTV Service Manual (P/N 9924125)
430 Pages • ZIP Download: Printable PDF • 34.74 MB
Polaris Models Covered & Key Technical Specifications
Models: Ranger RZR, Ranger RZR EPS, Ranger RZR S, Ranger RZR S INT’L, RZR 4, Ranger RZR 4 EPS
Models & Model Codes:
Ranger RZR — R13VH76AC, R13VH76AD, R13VH76AN, R13VH76AS
Ranger RZR EPS — R13VH7EAI
Ranger RZR S — R13VE76AD, R13VE76AI, R13VE76AS, R13VE76AW
Ranger RZR S INT’L — R13VE76FI, R13VE76FX
RZR 4 — R13XE76AD
Ranger RZR 4 EPS — R13XE7EAI
Sub-models / Variants: EPS, INT’L, 4, 800 EFI

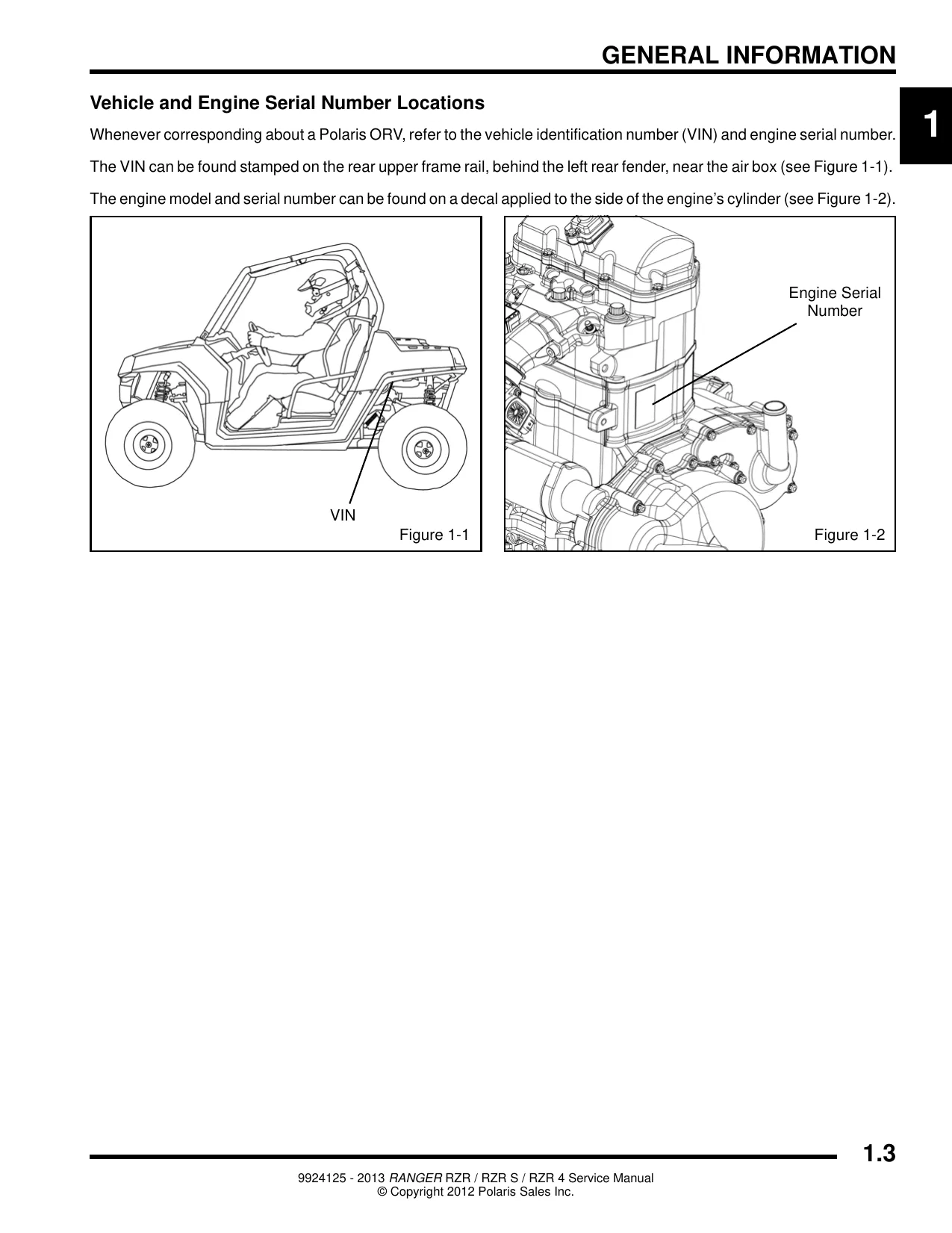

Engine identification: RZR800-13 (engine designation 1204620). Engine number 1204670 for Ranger RZR, Ranger RZR EPS, Ranger RZR S, and Ranger RZR S INT’L. Engine number 1204671 for RZR 4 and Ranger RZR 4 EPS.

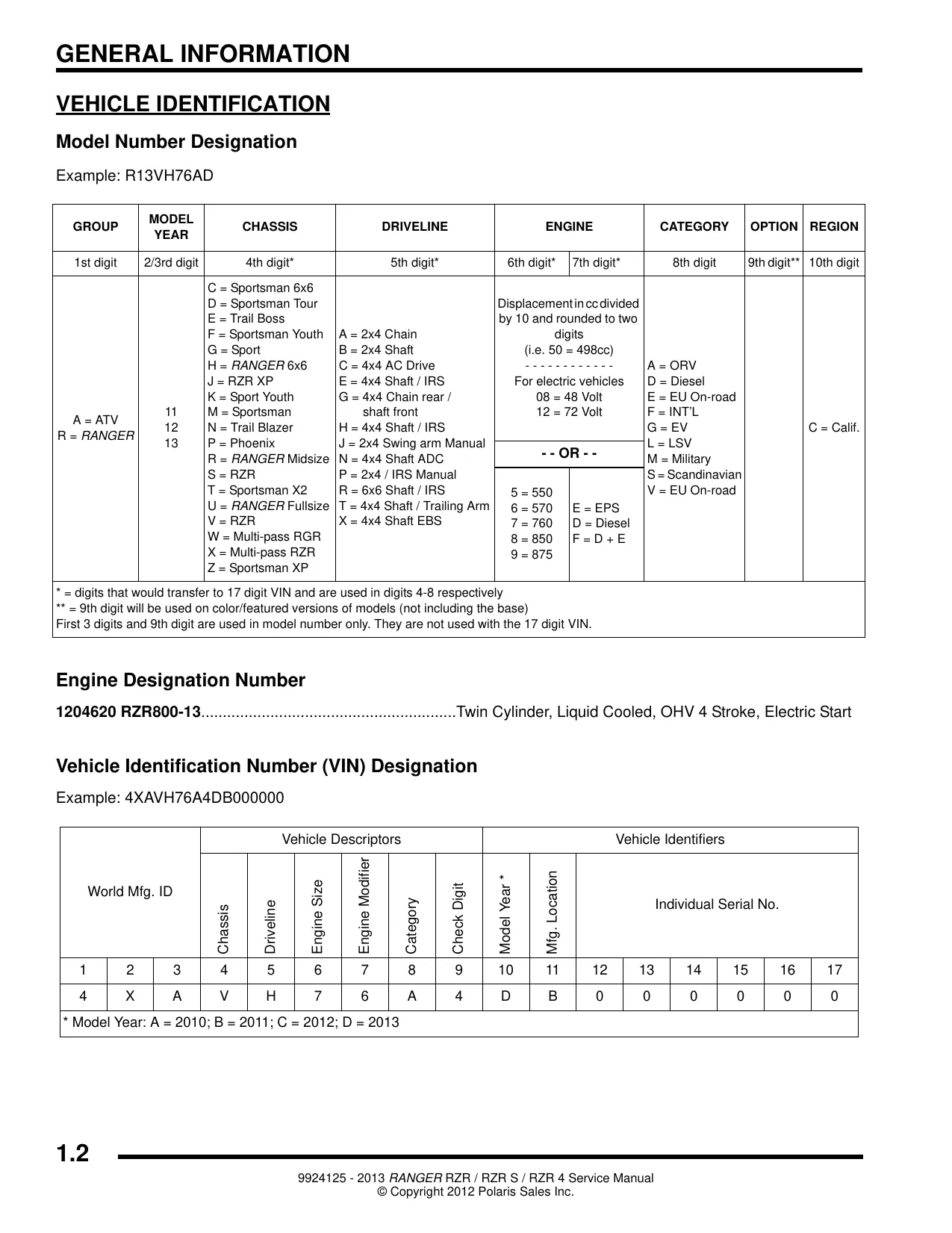

VIN identifiers: Positions 4–5 (chassis and driveline): VH for Ranger RZR and Ranger RZR EPS, VE for Ranger RZR S and Ranger RZR S INT’L, XE for RZR 4 and Ranger RZR 4 EPS. Position 7 (engine modifier): E for the listed EPS models, 6 for the listed non-EPS models. Position 8 (category): F for Ranger RZR S INT’L.
Model Year: 2013
-
Engine displacement: 760cc H.O.
-
Engine type: Twin Cylinder, Liquid Cooled, 4-Stroke
-
Transmission: Polaris Automatic PVT (PVT with EBS on Ranger RZR EPS, Standard PVT on the other listed models)
-
Alternator rated output: 500 Watts @ 3000 RPM
-
Fuel system: Bosch M17 EFI
-
Drive system: 2WD / On-Demand AWD, with Turf mode on Ranger RZR S INT’L
-
Spark plug: RC7YC3 / 0.035 in. (0.9 mm)
-
Engine idle speed: 1250 ± 100 RPM
Polaris Manual Features & Selected Content Preview

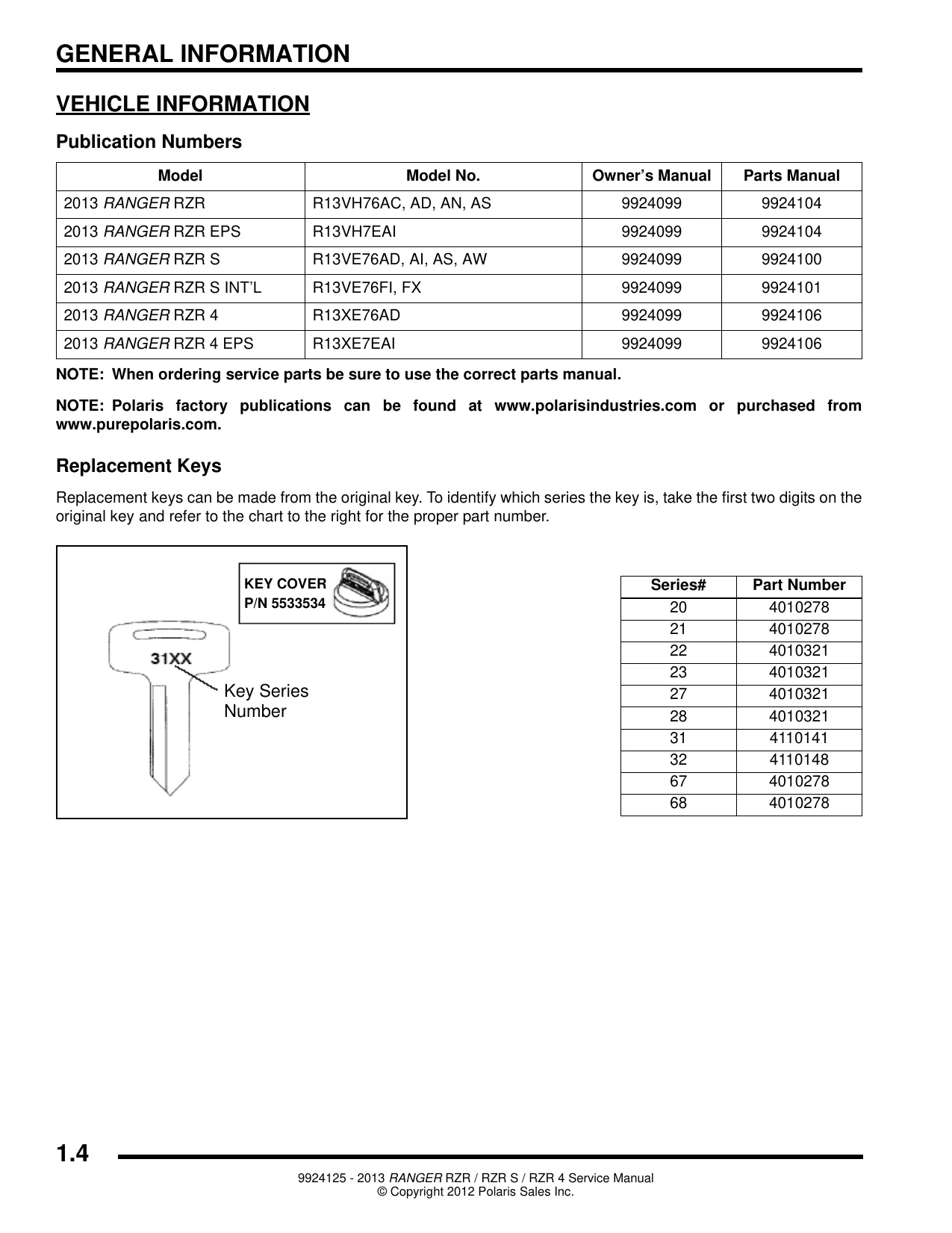

Polaris factory service manual P/N 9924125 covers the 2013 Ranger RZR, Ranger RZR EPS, Ranger RZR S, Ranger RZR S INT’L, RZR 4, and Ranger RZR 4 EPS. Copyright 2012. The owner’s manual and model-specific parts books are separate publications.
Searchable Service Text and Large-Format Schematics
Text search and navigation: Search covers the service text and wiring-sheet titles. Bookmarks open General Information and the individual wiring sheets. Circuit labels on the large-format sheets are graphical, and small pin numbers and wire codes are best read with zoom.
The ZIP contains one printable PDF with 430 pages. That total includes 416 US Letter service pages, six of them chapter-end notes pages, and 14 landscape 11 × 17 in. wiring sheets.
Engine Overhaul, Clutch Service, and Electrical Diagnosis
These are selected service topics from the manual. Other procedures include shift-cable adjustment and spark-arrestor service.
- Engine and cooling: Engine removal and transmission separation, cylinder-head and valve service, piston and crankcase inspection, water-pump and radiator work, reassembly, and break-in.
- Bosch M17 EFI: Fuel-line and tank service, injector and pump testing, ignition and sensor checks, instrument-cluster trouble codes, and ECU reflashing with Digital Wrench.
- PVT and final drive: Drive-belt and clutch service, transfer-case and shift-housing overhaul, Centralized Hilliard AWD diagnosis, and CV-joint and propshaft work.
- Body and steering: Cab and body removal, EPS and non-EPS steering service, A-arms, ball joints, stabilizer bars, and toe inspection and adjustment.
- FOX Podium shocks: Separate piggyback and top-fill rebuild procedures, with seal and valving service, internal floating piston setup, filling, and nitrogen recharging.
- Brakes: Master-cylinder service, bleeding, pad and caliper service, disc inspection, and troubleshooting for noise, drag, and pedal vibration.
- Electrical: Charging and starting tests, EPS fault diagnosis, fuse and relay identification, connector pinouts, and model-specific wiring diagrams.
The manual suits mechanics familiar with UTV service and shop diagnostic equipment, and Polaris calls for a certified Master Service Dealer technician for PVT work.
Maintenance, Lubrication, and Cooling
The periodic maintenance chapter covers compression and leakdown testing, cooling-system pressure checks, battery charging and storage, brake wear, wheel bearings, and driveshaft boots. It gives separate fill data for AGL Plus in the main transmission and transfer case, Demand Drive Plus in the front gearcase, and ATV Angle Drive Fluid in the standard rear gearcase or INT’L differential.
The engine chapter includes camshaft and flywheel/stator work, oil-pump inspection, oil-pressure testing, and cooling-system bleeding. It distinguishes the RZR’s maximum operating speed from the RZR S and RZR 4 specifications and gives separate coolant capacity for the RZR 4 family. The Oil Flow Chart and Cooling System Break-Out Diagram show the related circuits.
Clutch, Rear Gearcase, and Shock Variants
The RZR EPS with EBS has its own belt and driven-clutch procedures. Clutch offset checks address drag and hard shifting, and high-altitude charts identify the applicable shift weights and springs. The Centralized Hilliard Exploded View and Transmission Exploded View support front gearcase and transmission work.
The RZR S INT’L has dedicated Turf-mode rear differential, solenoid circuit, turn-signal, and rear gearcase procedures. Polaris calls for complete INT’L rear gearcase replacement if the pinion gear, pinion bearings, or housing are damaged.
The shock chapter distinguishes FOX 1.5 Podium piggyback shocks on the RZR S, FOX 2.0 piggybacks on RZR 4 L.E. models, and FOX 2.0 top-fill shocks on RZR 4 base models. That distinction matters when selecting seals, tools, or a rebuild procedure. The maintenance chapter also covers standard spring preload and FOX compression adjustment.
Diagnostic Tools and Wiring References

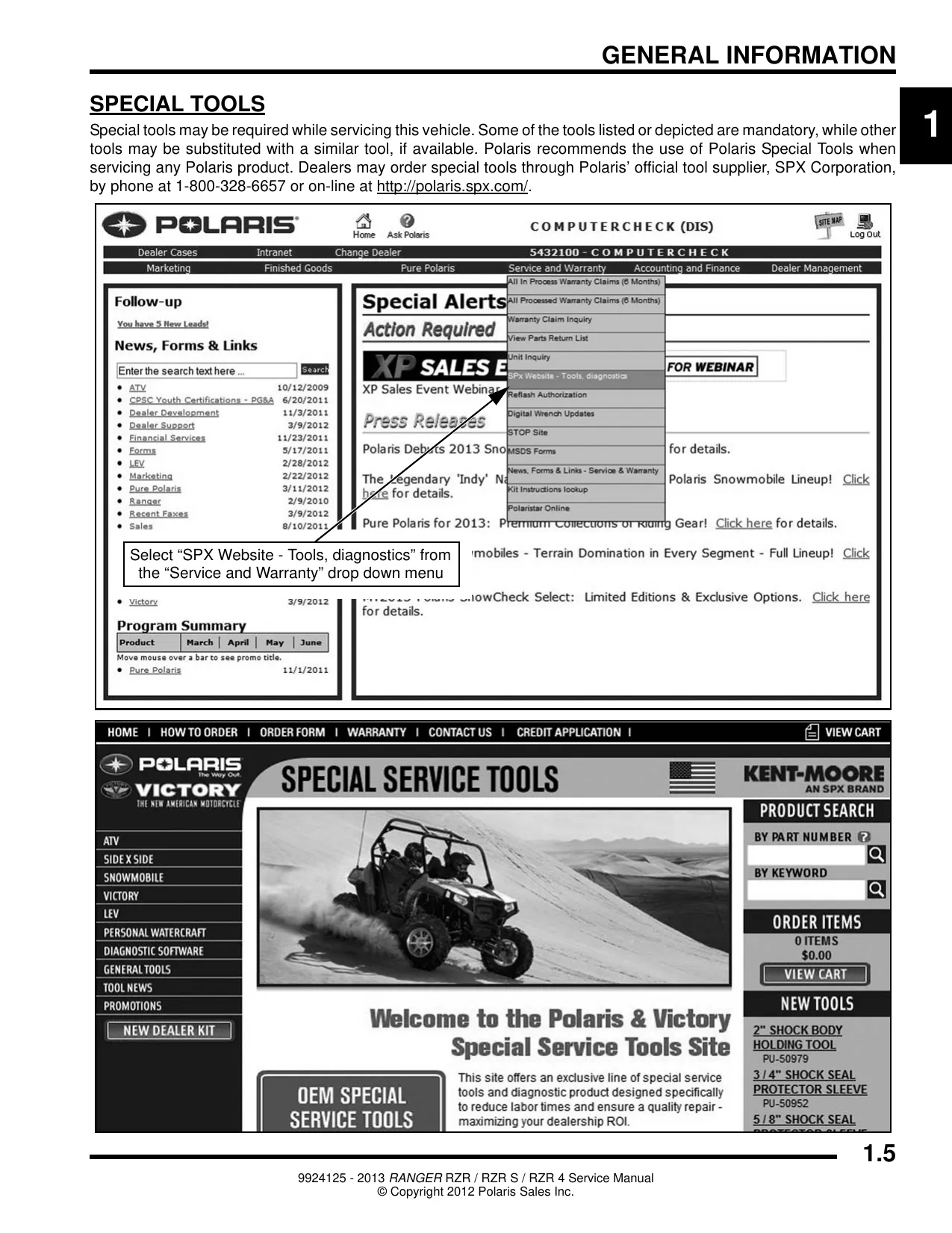

The EFI System Exploded View, EPS System Breakout, and wiring sheets cover the six listed configurations and include cargo-box circuits. Guided diagnosis and reflashing use separate dealer software and SmartLink hardware. Tool references include Digital Wrench kit PU-47063-B, fuel-pressure kit PU-43506-A with adapter PV-48656, drive-clutch puller PA-48595, cam-gear alignment tool PU-45497-2, and FOX shock recharging kit 2200421.
The Bosch injector-side connector is bonded to the injector. Separating it there can damage the injector or harness. Moving the factory-set throttle-body stop screw can require throttle-body replacement. Fuel can remain pressurized with the engine off, and FOX shocks contain high-pressure nitrogen. Follow the manual’s pressure-relief, lifting, and support precautions before teardown.
Fuel Pressure and Brake Disc Limits at a Glance
The Bosch M17 fuel-pump test calls for 45 ± 2 psi with the key on and the pump activated. The EFI chapter pairs that pressure check with electrical tests for diagnosing fuel delivery.
For front and rear brake discs, the manual gives a minimum service thickness of 0.170 in. (4.32 mm) and a runout limit of 0.010 in. (0.254 mm). These limits accompany the disc inspection and pedal-vibration troubleshooting procedures.
