Massey Ferguson TE-20, TEA-20, TE-A20, TE-D20, TE-F20, TO-20 and TO-30 Tractors 1946–1956 Service Manual (P/N 819 135 M1)

This 416-page PDF is a factory Ferguson service reference for the British-built TE-series, with repair coverage extending well beyond routine maintenance. It is intended for experienced mechanics and restorers equipped to split and support a tractor, measure wear and clearances, and use pullers, presses, gauges, and electrical test equipment. Many procedures require the FT.27 dismantling stand or equivalent lifting support. Hydraulic and brake work can involve suspended loads and stored pressure, so lower or positively support attached equipment and observe the manual's safety instructions before beginning service.

• Model coverage: Standard-width TE-A20 and TE-D20 specifications; TE-A20 and TE-C20 gasoline, TE-D20 and TE-E20 vaporizing-oil, TE-H20 and TE-J20 lamp-oil, and TE-F20 diesel variants, plus narrow-width and industrial configurations.
• Engine repair: Separate Standard Motor gasoline and diesel material covers engine removal, cylinder-head and valve work, timing service, piston and liner inspection, connecting rods, crankshaft and main bearings, lubrication components, and final adjustment.
• Fuel and governor work: Service information spans Schebler Marvel, Holley, and Zenith carburetors; fuel tanks, filters, air cleaners, and manifolds; mechanical and pneumatic governors; CAV diesel feed, injection-pump, timing, bleeding, injector-test, and fault-diagnosis procedures.
• Drivetrain service: Workshop sequences cover the dry-plate clutch, four-speed transmission, selector and interlock assemblies, mainshaft and countershaft setup, rear hubs and axle shafts, differential, matched crown wheel and pinion, and power take-off shaft.
• Hydraulic system: The Ferguson three-point mechanism is explained through pump, control-valve, relief and safety-valve, ram-cylinder, lift-cover, quadrant, linkage, adjustment, pressure-test, fault-finding, and later-production modification information.
• Electrical and lighting: Positive-earth charging, starting, ignition, control-box, battery, distributor, and lighting checks are supported by Lucas component data, tractor and diesel wiring diagrams, and road, trailer, floodlight, and industrial-lighting arrangements.
• Chassis and service tools: Steering gear, front axle and spindle bushes, agricultural and industrial brakes, wheels and tires, seat, hood, fenders, special-purpose axle arrangements, implement compatibility, and the Ferguson tool catalog are included.

Model and Serial Identification

Coverage must be matched to the tractor code and production point. Section T identifies the narrow-width TE-C20, TE-E20, and TE-J20, as well as full-industrial TE-P20, TE-R20, TE-S20, and TE-T20 machines. Semi-industrial “-T” versions and the basic-industrial TEP-ZD, TET-ZD, TEP-ZE, and TET-ZE configurations receive additional chassis, brake, lighting, seat, fender, and implement notes.

The manual tracks important running changes by serial number. It distinguishes the early six-volt system from the twelve-volt positive-earth system introduced at tractor serial 200,001, the kidney-cam and floating-cam brake arrangements, and the redesigned rear axle introduced at serial 325,001. Hydraulic updates include the oscillating control valve from serial 134,001, pump O-ring seals from 286,543, relocation of the safety valve at 330,044, and the later ball-type valve from 429,519. Engine-number breaks also separate vaporizing-oil engine versions and CAV injection-pump applications.

For the early Continental-powered TE-20, this volume provides selected carburetor, ignition, governor, cooling, clutch, and chassis service. It does not contain a complete Continental Z-120 internal-engine overhaul chapter; owners planning block, cylinder-head, piston, crankshaft, or bearing repair on that engine will need an additional engine-specific reference.

Workshop Data, Diagrams, and Repair Detail

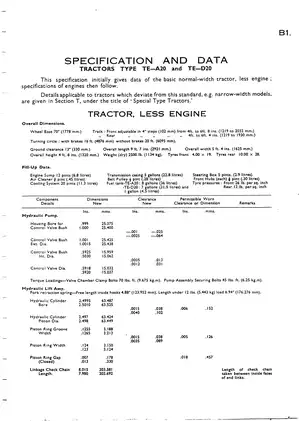

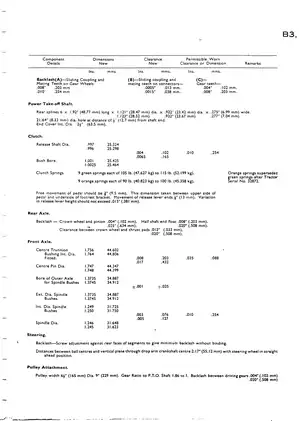

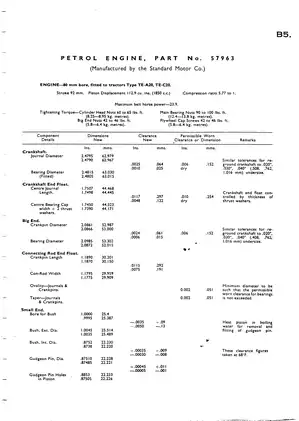

The specification section supplies component torque settings, valve and bearing clearances, ignition and injection timing data, fluid capacities, fit classes, and new-part and wear limits. Useful visuals include the Petrol Engine Sectional Views, Diesel Oil Distribution Diagram, Cross Section of Carburetter, early Tractor Wiring Diagram, TE-F20 Tractor Wiring Diagram, and sectional or exploded views of the steering and hydraulic assemblies. Separate transmission, hydraulic, brake, carburetor, diesel-fuel, and electrical fault tables help connect symptoms with likely causes and checks.

Referenced workshop equipment includes the FT.27 dismantling stand, FT.2 clutch centralizer, FT.21A/FT.21B hydraulic fixtures, FT.26 axle-bearing remover, FT.4221 differential and pinion tool, and FT.17/FT.18/FT.19 front-spindle bush tools. These references matter because several adjustments depend on controlled support, accurate shimming, or dedicated gauges rather than visual judgment.

Two repair traps deserve particular attention. Incorrect mainshaft or countershaft shim selection can produce transmission noise, difficult shifting, or gears that jump out under load. On later hydraulic units, the ball from the ball-type safety valve can enter the discharge drilling during removal and, if allowed into the center housing, damage the gears.

Electrical coverage is deliberately limited to routine maintenance, adjustment, testing, and replacement checks; the manual directs major Lucas component repair to a qualified electrical specialist. Likewise, diesel injection-pump information supports installation, timing, bleeding, and diagnosis but not a complete specialist rebuild of the pump itself.
