2003 Brother Laser Printer HL-5130/5140/5150D/5170DN Service Manual (SM-PRN051)

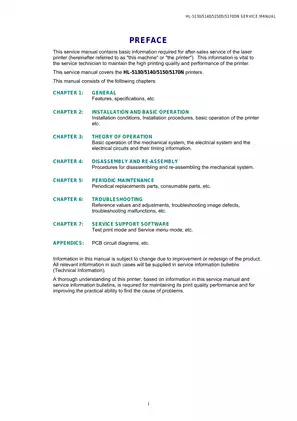

• Brother factory service manual, document code SM-PRN051, December 2003 — 280-page PDF for the HL-5130, HL-5140, HL-5150D, and HL-5170DN laser printers.

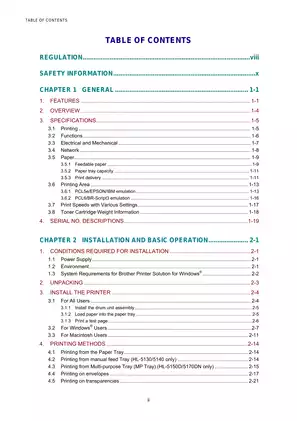

• Maps the model-specific hardware before repair work: manual feed on the HL-5130/5140, the MP tray and automatic duplex system on the HL-5150D/5170DN, optional lower-tray equipment, and the dedicated HL-5170DN network controller.
• Covers removal, disassembly, and reassembly of the paper tray, DX feed assembly, MP unit, fixing unit, laser unit, main and engine PCBs, high- and low-voltage power supplies, paper feeder, drive unit, and fan assemblies.
• Provides fault isolation for service calls, LED codes, paper jams and feed faults, motor and fixing-unit failures, high-voltage faults, incorrect printouts, interface problems, image defects, and HL-5170DN network issues.
• Details test-print, service, and inspection modes, sensor checks, maintenance/error-history printouts, NVRAM and RAM checks, self-diagnostics, firmware rewriting, and PIT3 model, country, and serial-number setup after main-PCB replacement.
• Supplies 12 PCB circuit-diagram sheets for main-board variants, engine boards, low-voltage power supplies, and high-voltage power supply, plus point-to-point connections, harness routing, print-engine views, and duplex paper-path diagrams. It also records the toner-cartridge change at serial M4JN000001B / M4JN000001C.

Component and System Documentation

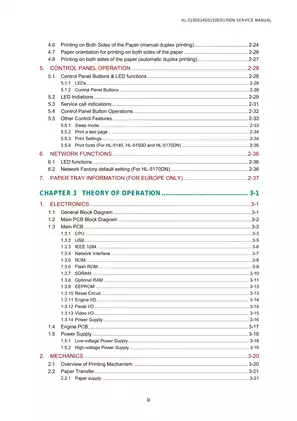

The theory-of-operation section follows the printer from controller input to the finished page. Electronics coverage identifies the CPU/ASIC, ROM and flash-ROM layouts, SDRAM and optional DIMM memory, USB, IEEE 1284 parallel communication, engine and panel I/O, video output, and model-specific network circuitry. Engine PCB documentation maps the motors, solenoids, thermistor, high-voltage supply, cover and toner detection, registration and eject sensors, cassette inputs, MP-tray sensing, and duplex sensors fitted to those models.

Key drawings include the General Block Diagram, Main PCB Block Diagram, Low-Voltage Power Supply block diagram, High-Voltage Power Supply diagram, Overview of Printing Mechanism, and the Duplex Printing path for the HL-5150D/5170DN. The mechanical explanation traces pickup and separation, registration, transfer, fixing, output, and duplex recirculation. Print-process coverage follows charging, laser exposure, toner development, transfer, and heat-and-pressure fixing.

A master flow ties together 26 numbered assemblies, and the disassembly chapter goes beyond whole-unit replacement. Fixing-unit repair covers the thermistor, halogen heater lamp, heat and pressure rollers, cleaner pinch rollers, eject sensor and actuator, and separation claws. Paper-feed and drive sections cover pickup and feed rollers, registration actuators, shafts, bearings, gears, solenoids, and the main motor. Separate procedures address the duplex feed and MP units, laser assembly, controller boards, power-supply boards, and cooling fans.

The reassembly notes flag real failure points. Fixing-unit thermistor and heater-lamp orientation matter, the lamp edge can be damaged during assembly, and the cleaner springs are not interchangeable. A bent paper-tray pressure plate or misaligned side-guide racks can cause recurring feed faults.

Specification and Reference Highlights

Factory reference data covers printing, electrical and mechanical specifications, operating environment, paper and media handling, printable areas, controller memory, emulation, interfaces, media-dependent fixing control, and network protocols. Separate 120V and 230V low-voltage-supply schematics are paired with the high-voltage charging, development, and transfer circuit. It also provides lubrication locations and approved greases, lead-free-solder identification and board-repair guidance, fixing-unit and paper-feeding-kit replacement procedures, and cleaning points for the drum, scanner window, and electrical contacts.

Troubleshooting is arranged by symptom and test result. Coverage includes service-call decoding, Status Monitor and printed error messages, jam-location diagnosis, double feeding, skew and curl, USB and parallel faults, controller and engine malfunctions, and 24 named image-defect conditions. Examples range from light or all-black pages and periodic bands to registration faults, gray background, hollow print, and toner specks, with checks tied to the drum, grounding contacts, laser, transfer, fixing, paper path, and PCBs.

Maintenance printouts report page and consumable information, jam and replacement counts, and error history; the HL-5170DN adds a network settings page. Inspection modes provide model-specific sensor tests, print patterns, NVRAM dumping, and RAM checking. Firmware-rewrite procedures cover flash replacement boards on all four printers; the HL-5170DN has separate network-firmware programming. PIT3 setup restores the model, country configuration, and serial number after main-PCB replacement.

The HL-5170DN has built-in 10/100 Base-TX hardware and a dedicated network troubleshooting section; the specification table lists Ethernet as optional for the HL-5140 and HL-5150D. Network troubleshooting addresses TCP/IP, LPR/LPD, NetBIOS, IPP, NetWare, AppleTalk, and browser management. For European printers with the LT-5000 lower tray, the manual explains the tray interchange needed to keep the lower paper path open and prevent jams.

Internal repair involves a hot fixing unit, high-voltage circuitry, and an enclosed laser system. Disconnect power before access, allow heated parts to cool, and do not open the laser-unit enclosure or disturb its factory-set adjustment.
