Bombardier DS 650 / Baja / Baja X ATV Service Manual, 2004 (P/N 219 100 174)

245 Pages • 1 Printable PDF (English) • Download

4.6starstarstarstarstar_half(5)
$17.75 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Bombardier Models Covered & Key Technical Specifications

Models & Model Codes: DS 650 (7717), DS 650 Baja (7718), DS 650 Baja X (7995)

Sub-models / Variants: DS 650 Intl (7719), DS 650 Baja Intl (7720), DS 650 Baja X Intl (7997)

Model Year: 2004


  • Engine oil capacity: 3 L (0.8 U.S. gal), shared engine/transmission lubrication

  • Valve clearance (Exhaust): 0.10–0.15 mm (.004–.006 in), engine cold (maximum 35°C/95°F)

  • Valve clearance (Intake): 0.10–0.15 mm (.004–.006 in), engine cold (maximum 35°C/95°F)

  • Drive chain slack: 19–25.4 mm (3/4–1 in), midway between sprockets with the driver or equivalent weight seated on the vehicle

  • Tire pressure (Front/Rear): 35 kPa (5 PSI) recommended / 21 kPa (3 PSI) minimum, measured cold

  • Engine oil pressure: 50 kPa (7 PSI) minimum at idle; 300 kPa (44 PSI) at 6000 RPM, with a warm engine and the recommended oil at the proper level

  • Camshaft lobe height service limit: 39.7 mm (1.56 in)

  • Transmission: Integrated 5-speed constant-mesh transmission for all listed models

Bombardier Manual Features & Selected Content Preview

This 2004 Bombardier shop manual, P/N 219 100 174, covers the DS 650, DS 650 Baja, and DS 650 Baja X, including their International versions. Its 12 major sections contain factory service and repair procedures for the listed configurations. Dealer modifications made after manufacture are outside its scope.

PDF Search, Section Bookmarks, and Wiring Detail

Search and navigation: Main service text supports PDF search, but some table and diagram labels are not reliably searchable. Section-level bookmarks navigate within the file; many detailed bookmark entries point to separate chapter PDFs. Small wiring-diagram labels are legible when zoomed in.

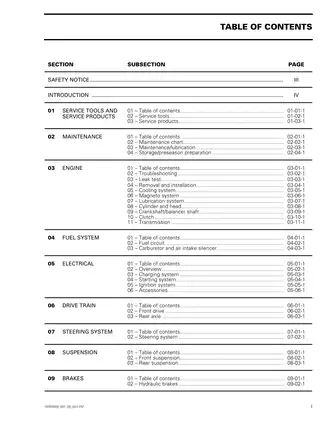

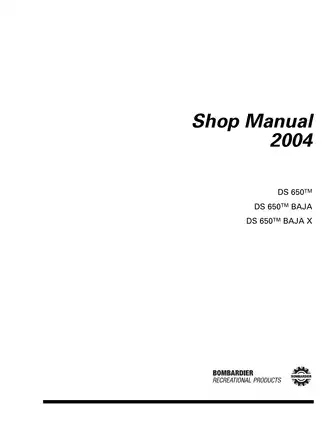

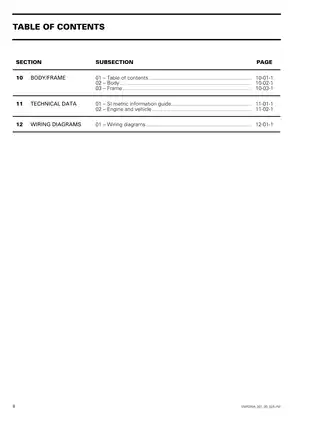

One printable English PDF contains 245 pages, including the cover, title page, and 11 pages of contents, safety notices, and introductory material.


Engine Overhaul, Electrical Diagnosis, and Chassis Service

These selected topics are not a complete contents list. Further subjects include storage/preseason preparation and spark-arrester maintenance.

  • Engine repair: Leak-down testing, engine removal and installation, cylinder-head and valve work, crankshaft/balancer-shaft service, clutch inspection and adjustment, and transmission disassembly.

  • Fuel system: Fuel-circuit pressure testing, carburetor overhaul, float-height inspection, pilot and idle adjustment, throttle-cable service, and air-intake silencer inspection.

  • Cooling and lubrication: Cooling-system leak testing and refilling, water-pump service, engine oil-pressure testing, oil-pump and regulator service, strainer maintenance, and oil-circuit bleeding.

  • Electrical diagnosis: Charging, starting, ignition, lighting, indicator, and cooling-fan tests, with troubleshooting charts, connector-pin identification, and separate model-specific wiring diagrams.

  • Drive train and steering: Wheel-hub and bearing replacement, rear-axle and eccentric-housing service, drive-chain adjustment, steering-column work, tie-rod inspection, and wheel alignment.

  • Suspension: A-arm and ball-joint service, Baja X front-shock rebuilding, rear remote-reservoir shock rebuilding, swing-arm service, and preload and damping adjustments where fitted.

  • Hydraulic brakes: Front and rear circuit inspection, master-cylinder and caliper repair, pad and disc inspection, fluid replacement, bleeding, and brake-control service.

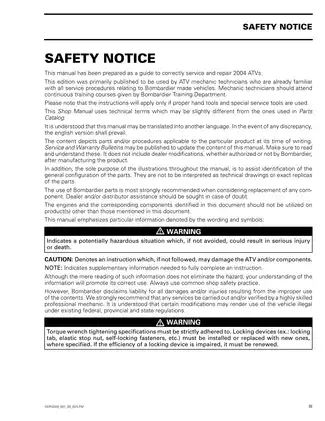

Bombardier published this edition primarily for ATV mechanic technicians already familiar with its service procedures; it assumes appropriate hand tools, special service tools, and the ability to interpret factory specifications.

Engine Fault Isolation and Internal Repair

The engine fault charts address overheating, no-spark conditions, low or missing oil pressure, contaminated oil, abnormal noise and vibration, hard shifting, starting failures, and clutch slip or drag.

The combustion-chamber leak test helps distinguish intake- and exhaust-valve leakage, head-gasket faults, crankcase leakage, and piston-ring or cylinder wear before internal repair is selected.

Cylinder head and rotating assembly: Step-by-step procedures cover camshafts, valve timing, the centrifugal decompressor, valves, springs, stem seals, guides, cylinder, piston, and rings. Crankshaft and balancer-shaft work includes bearing service and recentering procedures.

Clutch and transmission: Inspection extends to the pressure plate, friction and steel plates, basket, and release shaft. Internal transmission work covers the shifting mechanism, shafts, gears, and bearings, with reassembly and functional checks.

Carburetor, Cooling, and Oil-Circuit Service

The fuel section follows the tank, valve, strainers, and lines through pressure testing and carburetor service. Mikuni BSR42-4 material includes float-level measurement, diaphragm inspection, pilot and idle adjustment, and throttle-cable removal, lubrication, and adjustment.

The carburetor instructions warn that prying the float arm can load the needle and damage the needle or valve seat.

Cooling: Component coverage includes the radiator, water pump, thermostat, fan, pressure cap, temperature switch, and sensor. A Baja-specific fan-relay test distinguishes that circuit from the standard arrangement.

Dry-sump lubrication: The manual follows the oil tank, return and pressure pumps, pressure regulator, filters, and strainers. Priming and bleeding instructions address restoring oil circulation after relevant service work.

Electrical Tests and Model-Specific Wiring

Testing covers the three-phase stator, regulator/rectifier, battery, starter and solenoid, electronic module, trigger coil, ignition coils, switches, lamps, and tachometer.

Packard and Deutsch connector-service instructions and major connector-pin layouts support continuity, resistance, voltage, and output checks. Starting-system tests help separate switch, wiring, solenoid, and battery faults before the starter is removed.

The ignition section explains that timing cannot be checked with a timing lamp because there is no access window or timing mark. Separate DS 650 and DS 650 Baja/Baja X wiring diagrams show the corresponding circuit arrangements.

Axle, Suspension, Brakes, and Bodywork

Rear axle: Brake-disc hub service includes the bearing-preload procedure, alongside eccentric-housing and bearing replacement. The rear-wheel-hub instructions warn that transmission locking or impact-tool use during nut removal can damage bearings.

Shock rebuilding: Baja X front-shock procedures cover the floating piston, internal valving, oil bleeding, and nitrogen charging. Rear-shock material covers the remote reservoir, bladder, valve stacks, bleeding, and charging.

Brakes and chassis: Hydraulic brake work includes levers, pedal, switches, and both brake circuits. Body/frame sections address panel removal, seat-latch adjustment, Baja X nerf bars and protectors, and frame service. The plastic-repair section identifies the polyethylene body materials as nonrepairable.

High-pressure nitrogen shock work and hydraulic brake service require the specified protective equipment, tools, and technician-level handling.

Assembly Views, Service Tools, and Reference Tables

Visual references include cylinder-and-head, clutch, rear-axle, and hydraulic-brake exploded views, major connector-pin layouts, and the two wiring diagrams. Tables provide component torque specifications, capacities, approved products, wear limits, clearances, chassis geometry, suspension data, and electrical test values.

Special-tool references include the engine lifting tool P/N 529 035 610, crankshaft locking bolt 529 035 617, clutch basket holder 529 035 618, oil-pressure adapter and gauge 529 035 652 / 529 035 709, rear-axle key 529 035 951, and needle-type gas-fill tool 503 190 102.

Selected Piston-Clearance and Carburetor Specifications

The engine data distinguish new piston-ring end gaps of 0.2–0.4 mm from the 1.0 mm wear limit. Piston-to-cylinder clearance has a separate wear limit of 0.09 mm, supported by the measuring procedure in the crankshaft/balancer-shaft section.

For the Mikuni BSR42-4 carburetor, the float-level specification is 10 ± 0.5 mm. The carburetor section illustrates the gauge position and measurement reference used for this check.
