1989-1992 Suzuki GSX-R1100 Owner's Manual (90 P.)
Complete owner documentation for the GSX-R1100 motorcycle — covering operation, maintenance schedules, break-in procedures, and troubleshooting with factory specifications.
Manual Preview
Sample pages from the 1989-1992 Suzuki GSX-R1100 Owner's Manual (90 P.) manual
Purchase & Download
Models Covered & Key Technical Specifications
Suzuki GSX-R1100 — 1989–1992 Professional Reference Archive | GSX-R1100 Series Volume.
- Authorized Liquid Volume: 5.0 L (5.3 US qt) is standardized to the fuel tank capacity Configuration.
- Published Gap Specs: For optimal ignition performance, 0.6–0.7 mm (0.024–0.028 in) defines the spark plug electrode separation Benchmarks.
- Reference Electrical Specs: The circuit breaker requires 10 minutes cooling before manual reset activation Range.
- Established Thermal Rating: Engine idle speed achieves 1,100–1,300 r/min sustained combustion sequencing Sequences.
- Measured Unit Dimensions: Drive chain slack reaches 25–30 mm (1.0–1.2 in) operational tolerance Baseline.
- Core Reservoir Specs: Tire pressure is standardized to 2.30 kg/cm² (33 psi) front and 2.50 kg/cm² (36 psi) rear solo loading Parameters.
Professional Workshop Service Manual & Technical Specifications
Operational Calibration Manual: Suzuki GSX-R1100 Workshop-Compendium
Documentation-Type: GSX-R1100 (1988) // Documentation-Type: Motorcycle Owner's Manual / Service Logic // Documentation-Type: Comprehensive Technical Reference and Operating Guide.
| System Categories | Documentation Focus | Reference Details |
|---|---|---|
| Powertrain & Controls | Engine, transmission, fuel delivery systems | Complete operating procedures documented |
| Suspension & Chassis | Front/rear suspension adjustment, brake systems | Damping force specifications and preload settings included |
| Electrical & Ignition | Circuit breaker, fuses, wiring diagrams | All circuit protection and accessory terminal documentation |

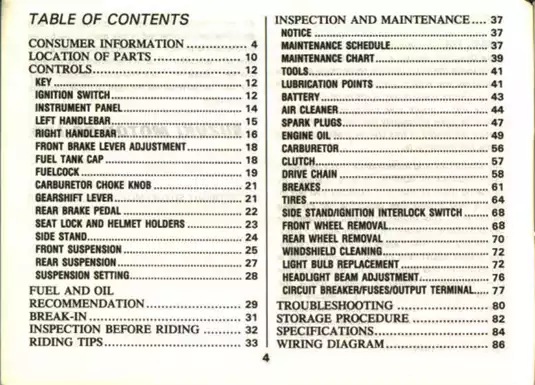

Maintenance hierarchies are structured into Consumer Information covering operator safety and accessory selection guidelines, Location of Parts providing a visual reference for key motorcycle components, Inspection Before Riding detailing the pre-ride safety checklist procedures, Riding Tips addressing safe operating techniques and environmental conditions, and Controls and Instrument Panel sections describing the complete switch, lever, and gauge functionality.
System operation descriptions cover the ignition and key positions, neutral and high-beam indicator lights, headlight and turn signal controls, horn and clutch mechanisms, engine stop switches, front and rear brake applications, and the complete fuel tank cap locking system. The documentation addresses carburetor choke operation for cold and warm engine starts, gearshift lever mechanics with 5-speed constant-mesh transmission operation, rear brake pedal application, and side stand ignition interlock safety features. Assembly instructions are detailed for front suspension spring preload adjustment across seven grooved positions, extension side damping force configuration, compression side damping force tuning, and rear suspension damping adjustments with four detented positions. Hydraulic schematics are included for the clutch release mechanism operation, carburetor fuel delivery with diaphragm-style fuelcock three-position functionality, and disc brake system pressure requirements.
Steering component information is provided for headlight beam adjustment both horizontally and vertically, windshield cleaning and replacement procedures, handlebar-mounted dimmer and turn signal switches, and handlebar brake lever position adjustment across four detectable positions.
The manual documents torque specifications for chassis fasteners and wheel assemblies to ensure proper structural integrity. Strategic system tables present fuel and oil recommendation charts specifying unleaded gasoline requirements (minimum 85 octane pump rating), ethanol and methanol blend usage limitations, and SUZUKI PERFORMANCE 4 MOTOR OIL specification with SAE 10W-40 viscosity rating and API SE or SF classification. Suspension setting charts display front fork preload positions, extension damping force click increments, compression damping force adjustments, and rear damping force numeric positions correlated with riding conditions (standard, solo, stiffer, and dual-riding configurations).
A maintenance schedule matrix indicates service intervals at 600 miles (1,000 km) for the critical initial service, including engine oil and filter replacement, chain cleaning and adjustment, brake system inspection, and fastener verification. The document includes specifications for tire pressure differentials based on single-rider versus dual-rider loading (front and rear kg/cm² and psi values), tire size identification (MICHELIN brand cross-reference), wear limit thresholds, and directional mounting requirements. Wiring diagram sections provide complete electrical circuit topology, circuit breaker locations, fuse amperage ratings (10A HEAD, SIGNAL, IGNITION, TAIL, POWER SOURCE designations), and output terminal polarity for electrical accessory attachment.
Break-in procedure guidelines establish maximum recommended engine speed limits based on mileage intervals (4,000 r/min for first 600 miles, 6,000 r/min for subsequent operation), constant-speed operation avoidance protocols, and oil circulation warming requirements. Troubleshooting sections address engine start failure diagnostics (fuel tank level, fuslcock position flow verification, spark plug ignition testing), engine stalling investigations (fuel supply checks, ignition intermittence evaluation, idle speed assessment), and storage procedure protocols including fuel stabilizer mixing, oil drainage and refilling, battery removal and charging procedures, and tire inflation maintenance.
Safety information sections document warnings regarding protective equipment requirements, riding posture on handlebars, cornering deceleration procedures, wet-surface traction reduction, side-wind reduction techniques, and emission control system tamper-prevention directives. The manual provides serial number location information (frame number at steering head tube, engine serial number on right side of crankcase assembly), key and ignition switch position descriptions, and brake system daily inspection checklists for fluid leakage, hose condition, lever/pedal stroke verification, and disc brake pad wear assessment.
