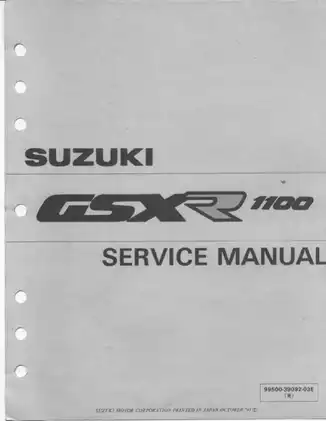

Suzuki GSX-R1100L, GSX-R1100M, GSX-R1100N 1989–1992 OEM Service Manual (P/N 99500-39092-03E)

• Covers the 1989 GSX-R1100K, 1990 GSX-R1100L, 1991 GSX-R1100M, and 1992 GSX-R1100N in a 358-page PDF of the Suzuki factory service manual, P/N 99500-39092-03E, identified inside as the 3rd edition, March 1992.
• Combines scheduled maintenance and tune-up work—valve clearance, carburetor balancing, clutch, drive chain, brakes, steering, and suspension—with compression and oil-pressure diagnosis, engine removal, teardown, inspection, and reassembly.
• Follows the Mikuni carburetors through circuit operation, disassembly, inspection, adjustment, reassembly, and balancing, then maps the SACS lubrication and cylinder-head cooling circuits, oil cooler, sump filter, and relief valve.
• Provides charging-output tests, generator and starter service, digital-ignitor inspection, side-stand/ignition-interlock diagnosis, battery procedures, switch and relay checks, plus market-specific wiring diagrams and routing views.
• Details wheel and tire service, brake and clutch master-cylinder work, conventional and inverted front-fork repair, steering and swingarm inspection, and full-floating rear-suspension reassembly and adjustment.
• Separates the later-model changes instead of treating all four years as mechanically identical: L-model updates, M-model tappet-shim selection and inverted-fork service, and N-model specification and service-data revisions.
• Supplies troubleshooting charts, exploded assembly views, component-specific torque tables, fluid-capacity data, wear limits, electrical test values, cable and hose routing, and factory special-tool references.

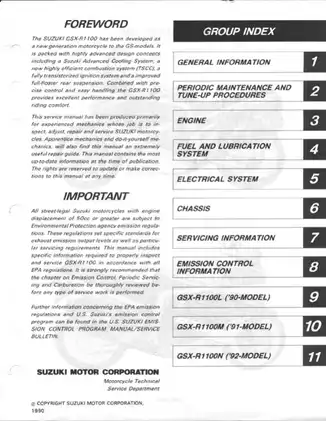

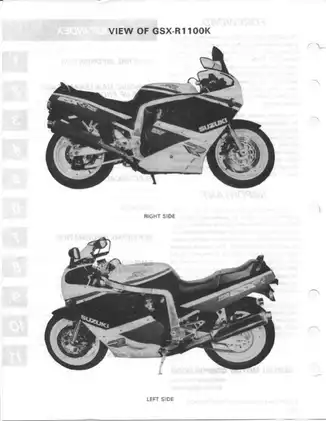

How Suzuki Organized the Four Model Years

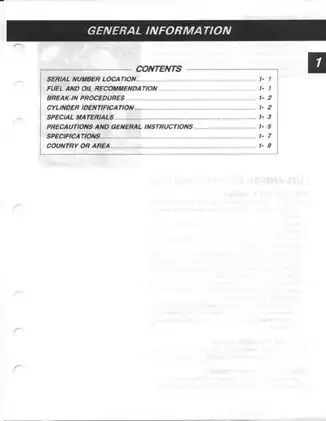

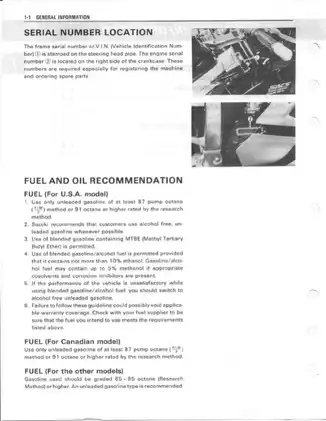

Suzuki built this publication around the GSX-R1100K base manual. Sections 1 through 8 carry the general information, periodic maintenance, engine, fuel and lubrication, electrical, chassis, servicing information, and emission-control material. The L section records the 1990 service information that differs from the K model. The M section documents the 1991 changes and directs the technician back to the earlier sections for unchanged work. The N section is narrower: it contains 1992 specifications and service data rather than another full set of repair chapters.

That structure matters before parts, procedures, or specifications are selected. The M-model section adds intake and exhaust tappet-shim selection tables and dedicated repair coverage for the inverted telescopic front fork, a key distinction from the K/L conventional-fork material. The M and N data also distinguish Mikuni BST36SS and BST40SS carburetor applications by market. Suzuki’s country-code notes identify U.S., California, Canada, Switzerland, Austria, and other-market differences where applicable. California evaporative-emission and air-suction systems have their own coverage, while the M-model air-supply routing also identifies California, Switzerland, and Austria applications.

Factory Repair Depth and Reference Material

The engine chapters identify components that can be serviced with the engine in the frame, then cover removal, disassembly, inspection, and reassembly of the cylinder head and valvetrain, cam-chain tensioner, cylinders and pistons, crankcases, crankshaft, clutch, starter clutch, oil pump, transmission, and cam timing. The engine specifications identify the TSCC combustion system, while the lubrication chapters trace SACS oil flow through the engine-lubrication and cylinder-head cooling circuits.

Chassis coverage is equally workshop-focused. Front and rear hydraulic brake components, clutch hydraulics, conventional and inverted fork assemblies, steering, swingarm, shock absorber, cushion lever, wheels, tires, and suspension settings are handled through removal, inspection, assembly, and adjustment procedures. This is repair documentation, not just a maintenance chart or owner-level overview.

Useful named references include the Engine Lubrication System Chart, Cylinder Head Cooling System Chart, Charging System—Generator with IC Regulator circuit and component view, Ignition System (Digital Ignitor) circuit, Side-Stand/Ignition Interlock System diagram, and country-specific wiring diagrams. The service-data pages organize torque specifications, clearances, wear and runout limits, fluid capacities, carburetor data, suspension settings, and electrical checks by assembly.

Factory tool references include the 09915-64510 compression gauge, 09915-74510 oil-pressure gauge, 09920-53710 clutch sleeve hub holder, and M-model fork tools such as the 09940-94910 front-fork spacer holder set and 09940-52840 front-fork inner-rod holder.

File Scope and Service Cautions

The PDF contains 346 pages through Suzuki’s final publication page, followed by 12 appended suspension and tire reference scans. Some appended material is repeated as both individual-page and two-page-spread scans; these pages are supplementary references, not additional factory repair chapters.

The engine-removal section warns that operating the clutch lever at that stage can damage the clutch piston retainer. For the M-model inverted fork, the manual identifies the Teflon-coated anti-friction metals and seal lips as damage-prone and calls for the metals to be renewed with the seals. Those model-specific cautions are a strong reason to use the correct section for each repair.

Brake, suspension, tire, electrical, and internal-engine repair can create serious hazards. Use the complete factory procedures and have safety-critical work handled by qualified personnel when needed.
