1999–2000 Honda CBR600F4 Service & Repair Manual (P/N 61MBW01)

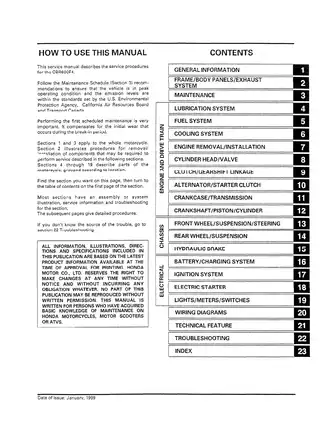

This Honda CBR600F4 Service Manual (P/N 61MBW01) covers the 1999–2000 models in 49-state/Canada and California configurations. Its 22 technical sections and separate index cover scheduled maintenance, fault diagnosis and mechanical repair.

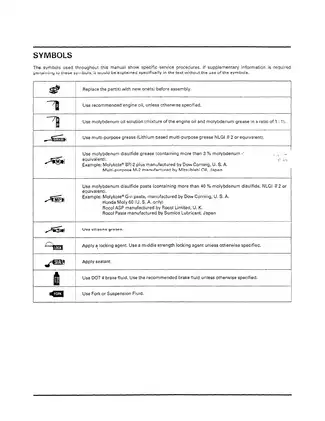

PDF Bookmarks, Diagram Detail and Page Count

Search and navigation: Text search is unavailable for the manual pages. Embedded bookmarks provide chapter navigation, while small connector labels and wire-color codes in both wiring diagrams require zooming.

The download contains one printable English PDF with 362 pages: 361 pages of manual material, including the cover, introductory pages, four memo pages and index, plus one supplementary reference page.

Engine Rebuilds, Carburetor Service and Electrical Diagnosis

These selected coverage highlights outline the main workshop subjects. Other topics include drive-chain replacement and instrument-panel testing.

• Engine repair: Engine removal and installation, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, and crankshaft, piston and cylinder inspection.

• Clutch and transmission: Clutch disassembly, gearshift-linkage service, crankcase separation, shift-fork inspection, and transmission disassembly and reassembly.

• Fuel and emissions: Carburetor overhaul and synchronization, pilot-screw adjustment, fuel-pump testing, Direct Air Induction diagnosis, and California evaporative-emission checks.

• Cooling and lubrication: Cooling-system pressure tests, thermostat inspection, radiator service, water-pump replacement, oil-pressure testing, and oil-pump inspection.

• Brakes and chassis: Front-fork seal replacement, wheel-bearing and steering-stem service, swingarm and suspension-linkage work, and hydraulic brake overhaul and bleeding.

• Electrical troubleshooting: Charging-system diagnosis, ignition-coil and pulse-generator peak-voltage tests, starter-motor service, interlock checks, and variant-specific wiring diagrams.

Honda wrote this manual for readers with basic maintenance knowledge of its motorcycles, scooters or ATVs; individual procedures also require appropriate tools and mechanical skills.

Engine Access, Valve Timing and Internal Inspection

The manual distinguishes work possible with the engine in the frame from jobs requiring removal. Camshaft, cylinder-head and clutch service can be performed in place; transmission and crankshaft/piston work require engine removal and crankcase separation.

Step-by-step procedures cover engine removal and reinstallation, with support requirements and engine-mount tightening details. The valve section includes shim selection, cam-chain tensioner inspection and a dimensioned drawing for a tensioner stopper tool.

The March 2000 revision to the camshaft-installation page details how the camshaft holder is drawn down evenly before final tightening. Main-journal and crankpin bearing-selection charts connect component codes to bearing colors; the accompanying cautions explain how incorrect bearing clearance can cause major engine damage.

Carburetor Setup and Emission-System Differences

Carburetor service extends through separation, diaphragm and float-valve inspection, reassembly, synchronization and the pilot-screw idle-drop procedure. The float-level check specifies replacement of an out-of-specification float assembly rather than adjustment.

Direct Air Induction airflow diagrams and diagnostic charts distinguish the regional configurations. California coverage includes EVAP canister service, purge-control valve testing and carburetor air-vent solenoid checks associated with difficult hot restarting.

The maintenance section also covers throttle operation, air-cleaner replacement and spark-plug inspection. California platinum-electrode plugs have separate handling cautions addressing damage to the electrode coating and prohibiting gap adjustment.

Fairings, Suspension and Hydraulic Brakes

With the reference accessible on your shop device, you can consult fairing removal procedures and fuel-tank service details at the workbench. Cable and harness routing drawings help you check wire placement during reassembly.

Front-fork instructions cover disassembly, bushing inspection, seal installation and fluid-level checks. Rear-suspension coverage includes linkage and swingarm bearings, but the pressurized shock damper is treated as a replacement assembly, not an internal rebuild.

Brake sections describe master-cylinder and caliper disassembly, piston and bore inspection, seal replacement and bleeding, with separate front and rear specifications.

Charging, Ignition and Starting Faults

The charging-system flowchart separates battery condition, current leakage, alternator-coil faults and regulator/rectifier wiring checks. Ignition diagnosis uses peak-voltage tests and connector comparisons to distinguish pulse-generator faults from harness problems.

Starter-circuit schematics support relay, clutch-diode and safety-interlock checks. Separate wiring diagrams identify the 49-state/Canada and California circuits; cooling-system diagrams and component-location views support mechanical and electrical fault tracing.

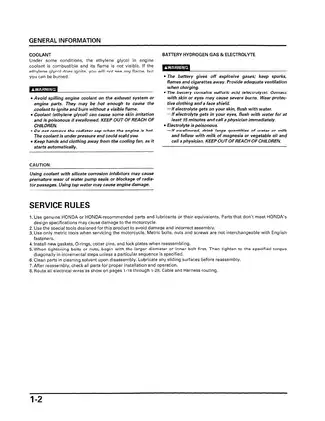

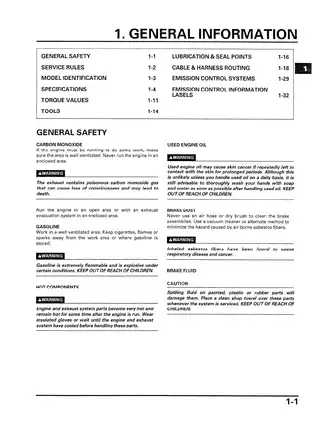

Workshop safety precautions address exhaust ventilation, flammable fuel, hot components and protective equipment during fuel-system diagnostics and engine inspections.

Examples of Valve, Oil Pump and Coolant Specifications

The valve-inspection procedure specifies an exhaust clearance of 0.28 ± 0.03 mm with the engine cold, below 35 °C (95 °F). Oil-pump data distinguish the standard rotor-tip clearance of 0.15 mm from the 0.20 mm service limit.

Cooling-system specifications list 2.7 L for the radiator and engine, with a separate 0.31 L reserve-tank capacity. Component-specific torque tables also cover maintenance fasteners, including the engine oil drain bolt.
