Cub Cadet 7232, 7233, 7234, 7235, 7272, 7273, 7274, and 7275 Compact Tractor Owner's Manual (P/N 772-9044)

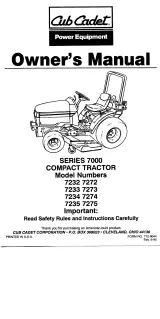

• Coverage and document identity: Cub Cadet Series 7000 models 7232, 7233, 7234, 7235, 7272, 7273, 7274, and 7275; Form No. 772-9044, Rev. 6-95, in a 138-page PDF, with gear-drive, hydrostatic, 2WD, and mechanical-front-drive configurations.
• Drivetrain operation: Separate gear-drive and hydrostatic control layouts, starting and shifting procedures, transport and towing directions, differential-lock use, clutch behavior, and live rear- and mid-PTO operation.
• Three-point hitch and hydraulics: Category I hitch connection, lift-link and stabilizer adjustment, optional draft control, lowering-speed setup, optional double-acting remote valve with float, loader hydraulic block, and air removal after connecting cylinders and hoses.
• Routine service coverage: Break-in and recurring maintenance schedules for engine oil, cooling, fuel filtration, air induction, transmission/hydraulic fluid, hydraulic and hydrostatic filters, and the MFD front axle.

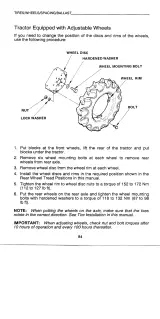

• Chassis setup and adjustments: Tire and rim selection, MFD tire matching, wheel installation, toe-in checks, ballast selection, fan-belt replacement, clutch and brake adjustment, hitch raise-stop setting, and headlamp aiming.
• Factory reference data: Model-specific engine and drivetrain specifications, fluid and lubrication charts, system capacities, component torque tables, adjustment data, fuse and fusible-link information, and electrical service precautions.

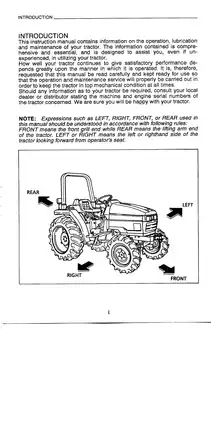

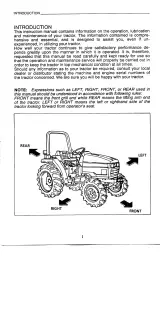

This factory owner's manual is centered on operation, lubrication, scheduled maintenance, and operator-level adjustment rather than major component overhaul. Cub Cadet says it was designed to assist operators even if they are inexperienced, making it suited to owners learning the controls and service requirements of these tractors. In a repair setting, it is useful for correct setup, routine service, and specification checks, but it does not replace a workshop manual.

Model and System Differences

The coverage separates the gear-drive 7232, 7234, 7272, and 7274 from the hydrostatic 7233, 7235, 7273, and 7275. It also identifies the 7234, 7235, 7274, and 7275 as MFD models and provides their required matched front/rear tire combinations. Engine data is divided between the 1,235 cc 7232-7235 group and the 1,496 cc 7272-7275 group, with the related bore, stroke, compression, injection, lubrication, cooling, and capacity specifications.

Gear-drive tractors receive instructions for the synchromesh transmission, three range selections, and dual clutch that can stop tractor travel while keeping the PTO operating. Hydrostatic models have their own speed-ratio pedal, speed-lock lever, forward/reverse operation, range selection, warm-up guidance, and hydrostatic filter service. Control locations and differential-lock pedal placement are shown separately for the two drivetrains.

Maintenance and Field Setup

The maintenance material goes beyond a simple interval chart. It covers engine-oil and filter changes, cooling-system draining and flushing, fuel-filter service and fuel-system air removal, air-cleaner inspection, transmission/hydraulic oil changes, hydraulic-filter replacement, hydrostatic-filter replacement, and MFD front-axle lubrication. Operator-level repair and adjustment procedures address fan-belt replacement, clutch-pedal free and maximum movement, matched brake-pedal operation, front-wheel toe-in, headlamp aim, and the three-point hitch raise stop.

Field-operation chapters explain drawbar and safety-chain use, implement connection, PTO driveline clearance, hitch leveling, stabilizer adjustment, draft-control setup, and hitch lowering speed. Optional hydraulic equipment is covered through the double-acting remote valve, float operation, external hydraulic block for loader use, and the procedure for filling connected cylinders and hoses while removing trapped air.

Tables, Drawings, and Scope Limits

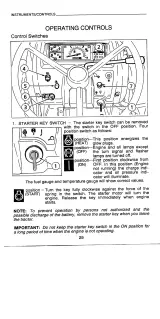

Illustrated references include the gear-drive and hydrostatic control layouts, three-point hitch geometry, MFD tire-size combination charts, lubrication and maintenance charts, the fuse-block connector view, and the headlamp aiming chart. Specifications cover engine, transmission, clutch, brakes, MFD axle, steering, hydraulic system, PTO, hitch, drawbar, tires, dimensions, weights, approved fluids, and service capacities.

MFD models must retain the specified matched tire combinations; mixing tire diameters or worn and new tires can upset ground-speed matching and increase front-drive wear. An incorrect hitch raise-stop position can damage the hydraulic pump, while improper remote-valve or hydraulic-block setup can overheat or damage the hydraulic system.

This is not a full repair manual: it contains no internal engine, transmission, axle, or hydraulic-component teardown and overhaul procedures. Electrical coverage is limited to specifications, charging-system precautions, fuses, the fusible link, battery service, and headlamp adjustment; it does not include complete wiring diagrams or fault-isolation charts. For internal component repair, a separate service manual is required.

PTO equipment, raised implements, pressurized hydraulic lines, batteries, and inflated tires present serious hazards. Follow the manual's shutdown, blocking, pressure-relief, and protective-equipment instructions before service.
