2000 Canon CLC1100/1120/1130/1140/1150/1160/1180 Service Manual
CLC1100 series color laser copier troubleshooting and repair reference covering laser exposure, image formation, and complete toner/drum maintenance procedures.

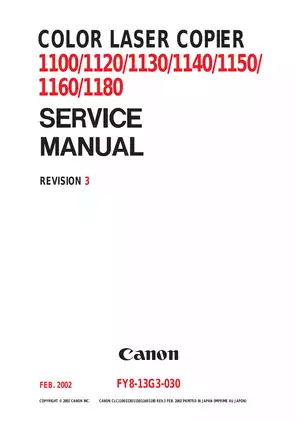

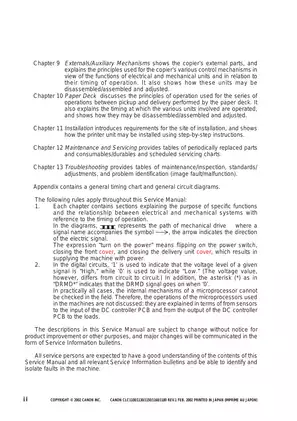

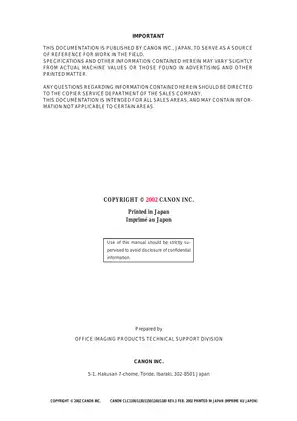

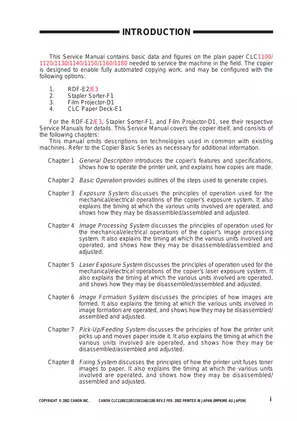

Manual Preview
Sample pages from the 2000 Canon CLC1100/1120/1130/1140/1150/1160/1180 Service Manual manual
Purchase & Download
Canon Models Covered & Key Technical Specifications
Canon CLC1100/1120/1130/1140/1150/1160/1180 — 2000–2002 Documentary Index for Color Laser Copiers | CLC Series Repository.
- Measured Wattage Specs: Maximum power consumption reaches 1500 W (1.5 kW) for full operational copying capacity Framework.
- Established Generation Capacity: For continuous full-color output, 11 copies per minute determines the standard production rate Configuration.
- Established Burn-in Temperature: The fixing assembly is calibrated to 163°C (325°F) for optimal toner fusion onto transfer media Benchmarks.
- Factory Enclosure Specs: The copier measures 768 mm (30.2 in) width × 773–774 mm (30.5 in) depth × 1000 mm (39.4 in) height for physical installation Range.
- Approved Fastener Specs: The photosensitive drum operates at 180 mm (7.09 in) diameter for electrophotographic imaging sequences Baseline.
- Critical Electrical Specs: Resolution is standardized to 400 × 400 dpi (scanner) and 800-equivalent × 400 dpi (printer) for document reproduction output Sequences.
Canon Manual Features & Content Preview
Practical Procedure Workshop Manual: Canon CLC1100, CLC1120, CLC1130, CLC1140, CLC1150, CLC1160, CLC1180 2000 - Comprehensive Service & Repair Manual for Color Laser Copiers Blueprint-Vault
Maintenance-Category: Color laser copier service documentation for seven models / Series-Validation: CLC series technical support / Subsystem-Focus: Complete image formation and mechanical systems reference.
| Assessment-Element | Parameters | Architecture |
|---|---|---|
| Image Formation | Laser exposure, developing, transfer, fixing | Documented across 13 chapters |
| Paper Handling | Pickup, feeding, duplexing, delivery | Complete specifications provided |
| Electrical Control | CPU, DC driver, high-voltage PCBs | Wiring diagrams included |
| Mechanical Systems | Motors, clutches, solenoids, sensors | Component layout reference |
The manual presents information on exposure system operations, image processing mechanisms, laser exposure control, and image formation procedures, addressing configuration details for pickup assemblies, transfer systems, and fixing mechanisms, examining external controls and auxiliary functions, introducing installation requirements and site selection, covering maintenance schedules and periodically replaced parts, and providing problem identification standards along with troubleshooting maintenance tables.
Parts identification is covered for the exposure scanner system, CCD arrays, laser units, and optical components. Removal procedures are documented for developing cylinders, photosensitive drums, charging assemblies, and transfer mechanisms. Technical specifications are provided for paper path rollers, paper sensor positioning, and pickup clutch engagement. Factory specifications are documented for environment switch settings, thermistor calibration values, and laser power adjustment reference data for all seven color laser copier models. The document includes disassembly sequences for the original exposure system and scanner drive assembly, with detailed mechanical adjustment guidance.
The manual documents torque specifications for the chassis assembly to ensure proper mechanical integrity throughout extended service intervals.
| System Coverage | Chapter | Details |
|---|---|---|
| General Description & Specifications | 1 | Features, parts nomenclature, control panel, safety standards |
| Basic Operation & Sequencing | 2 | Motor control, electrical mechanisms, PCB interconnections |
| Exposure System | 3 | Scanner operation, lamp intensity control, disassembly procedures |
| Image Processing | 4 | CCD control, analog/digital circuits, image data conversion |
| Laser Exposure | 5 | Laser driver circuits, beam detection, scanner motor control |
| Image Formation | 6 | Drum potential control, charging mechanisms, toner concentration |
| Pickup/Feeding | 7 | Paper pickup, registration, transfer, separation, delivery systems |
| Fixing System | 8 | Roller temperature control, belt mechanisms, oil application |
Methodically establishing reliable component access requires understanding the potential measurement circuits, color toner concentration sensor assemblies, waste toner collection monitoring, and the new gradation correction control mechanism found in the CLC1140/1160/1180 models. Diagnostic procedures address maintenance inspection standards, image adjustment baselines, standards and adjustment tables, troubleshooting logic for faulty images, malfunction identification, feeding fault detection, jam diagnosis sequences, electrical parts arrangement maps, thermistor specifications, clutch positioning data, solenoid location reference, fan assembly diagrams, motor specifications, and PCB arrangement charts. Service mode access enables display mode review, input/output signal verification, adjustment parameter entry, operation verification, settings configuration, test print generation, counter data review, and comprehensive self-diagnosis error code interpretation for both the copier unit and optional accessories including the RDF and sorter system modules.
