1994-2004 Ducati 748 / 748S / 998 Owner's Manual (85 P.)
Complete ownership documentation for the iconic Ducati 748 & 998 desmodromic twins covering maintenance, diagnostics, and adjustment procedures. Includes detailed specifications and service intervals.

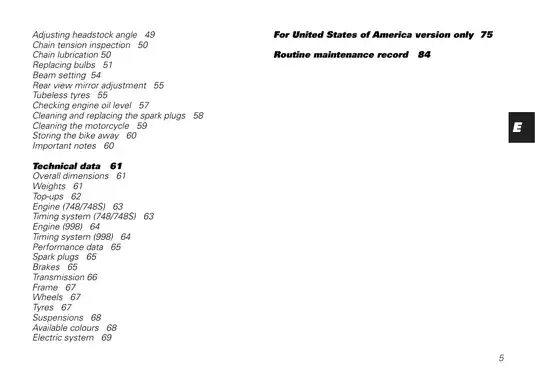

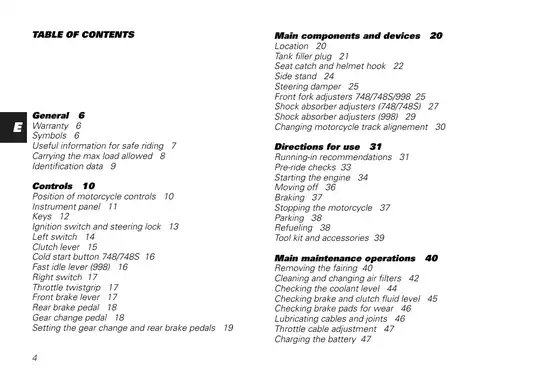

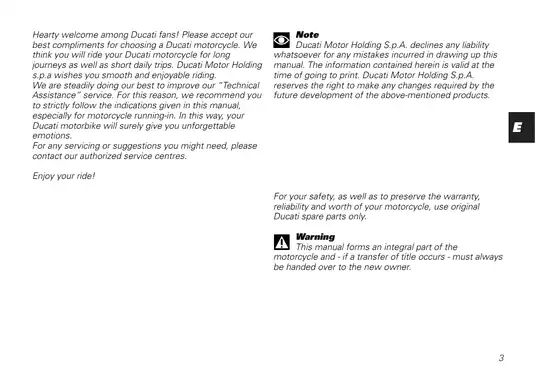

Manual Preview
Sample pages from the 1994-2004 Ducati 748 / 748S / 998 Owner's Manual (85 P.) manual
Purchase & Download
Models Covered & Key Technical Specifications
Ducati 748, 748S, 998 — 1994–2004 Systematic Technical Resource | 748/998 Series Repository.
- Calibrated Engine Displacement: 748 cc (748/748S) and 998 cc (998) is set to the twin-cylinder four-stroke configuration Mapping.
- Authorized Maximum Power Output: For peak performance, 71.3 kW (97 HP) at 11,000 rpm (748/748S) and 167 kW (123 HP) at 9,750 rpm (998) corresponds to crankshaft output Configuration.
- Core Torque Rating: Maximum torque reaches 7.5 kgm at 9,000 rpm (748/748S) — dictates engine performance Benchmarks.
- Rated Fuel Tank Capacity: The fuel system requires 17 L (4.5 US gal) total capacity with 4 L reserve Range.
- Principal Brake Disc Specifications: Front disc measures 320 mm diameter; rear disc is standardized to 220 mm diameter Sequences.
- Baseline Suspension Travel: Front fork travel achieves 127 mm per leg; rear shock absorber limits vertical movement to 71 mm Baseline.
Professional Workshop Service Manual & Technical Specifications
Standard Factory Installation Manual: Motorcycle Ducati 748 (1994-2003), 748S (1995-2003) & 998 (2002-2004) Diagnostic & Maintenance Procedures Manual Knowledge-Base
Performance-Values: Ducati 748/748S/998 models 1994-2004 // Reference-Category: Motorcycle Service & Technical Reference Logic // Performance-Values: Complete operational and diagnostic documentation for sportbike platforms.
| Performance-Element | Diagnostic-Logic | Calibration-Data |
|---|---|---|
| Engine Specifications | Twin-cylinder desmodromic timing system with four valves per cylinder | Complete displacement, bore, stroke, compression ratio, power output, and torque data provided |
| Control Systems | Clutch, throttle, braking mechanisms with hydraulic operation | Adjustment procedures, free play specifications, and lever positioning documented |
| Electrical Architecture | 12V battery system with generator, starter motor, fuel injection electronics | Wiring diagrams, fuse ratings, component identification, and relay information included |
| Suspension & Steering | Adjustable front fork and rear shock absorber with damping controls | Preload ranges, compression/rebound settings, steering angle geometry reference data |
| Transmission | Six-speed constant-mesh gearbox with dry clutch and chain drive | Gear ratios, sprocket specifications, and chain tension reference measurements documented |
Repair data is categorized into engine and transmission operation, covering both the longitudinal 90° L-type twin architecture, and providing detailed coverage of the four-stroke fuel injection management systems that differentiate the model lineup. The document encompasses the desmodromic valve actuation mechanism with its eight rocker arms, spur gear crankshaft drive configuration, and dual overhead camshaft assembly. Diagnostic information is included for ignition timing protocols, electrode gap specifications, and combustion chamber maintenance procedures. The manual documents torque specifications for fastening components to ensure proper oscillation integrity.
Maintenance hierarchies are structured into controls and instrumentation sections, covering the left and right handlebar switch assemblies including cold start mechanisms for 748/748S models and the fast idle lever system for 998 variants. Instrument panel functionality, neutral light operation, fuel warning thresholds, and oil pressure monitoring are comprehensively detailed. The document provides reference data for headlamp configuration with poly-ellipsoidal low beam units and dual high beam construction, turn indicator circuitry, and parking light systems.
Clearance measurements are addressed for brake pads with friction material documentation, and system troubleshooting guidance for hydraulic circuit maintenance. Verification procedures are included for coolant circulation with specific antifreeze mixture ratios, engine oil viscosity grades compatible with ambient temperature ranges, and brake fluid specification requirements. Component identification covers the fuel tank capacity, oil sump volumes, cooling circuit dimensions, and front fork pressurization data.
Special procedures are addressed for steering geometry adjustment on 748S and 998 models, with headstock angle repositioning affecting the steering damper assembly. Chain tension inspection methodology, preload adjustment sequences for front fork springs, and shock absorber damping click-count settings are documented. The manual covers frame geometry including steering angle specifications, trail measurements, and wheel rim configurations for five-spoke and three-spoke alloy construction.
Repair information is provided for fairing removal sequences, air filter cartridge replacement intervals, and headlamp bulb socket orientation. Spark plug maintenance includes ceramic insulator color evaluation criteria, electrode wear assessment, and gap measurement protocols. The document includes coverage of electrical system architecture with generator output specifications, battery capacity ratings, regulator fuse protection levels, and starter motor power consumption data.
| Chapter | Reference Content | Category |
|---|---|---|
| General & Warranty | Safety warnings, symbol definitions, identification numbers, load capacity | Foundational Reference |
| Controls & Operation | Ignition switch positions, clutch lever adjustment, brake pedal mechanics | Operating Systems |
| Running-in Procedures | Engine speed limits by mileage interval, brake fade break-in, suspension settling | Maintenance Protocols |
| Main Maintenance | Fairing removal, filter cleaning, fluid checking, lubrication points | Service Operations |
| Technical Specifications | Dimensional data, weight ratings, performance curves, electrical diagrams | Component Documentation |
| Troubleshooting & Emission | Noise standards, emission control components, defect reporting procedures | Regulatory Compliance |
The document is organized to support both preventive maintenance and diagnostic troubleshooting, with separate sections addressing the 748, 748S, and 998 platform variants. Technical specifications include overall length and height measurements, dry weight documentation, carrying capacity limitations, tire pressure ranges for front radial 120-series and rear 180-190-series Tubeless constructions. Suspension travel specifications are provided for the hydraulic upside-down fork with 127 mm travel and progressive rear shock configuration with 71 mm travel. Brake system architecture is documented including Brembo caliper specifications with dual floating drilled front discs and fixed rear rotors, master cylinder types, and friction material identification codes.
Electrical system wiring diagrams provide complete circuit paths for the injection ignition unit, fuel pump relay circuits, fan motor control logic, and start button solenoid activation. Fuse box legend tables correlate ampere ratings with circuit protection duties. Emission control system information addresses crankcase breather routing, evaporative canister configurations, and California-specific sealed fuel tank specifications. The manual details spark plug types with heat rating compatibility and gap adjustment warning guidance, oil change interval tracking through routine maintenance record tables, and battery charging procedures with polarity-specific terminal connection sequencing.
