Kubota Models Covered & Key Technical Specifications

Models: D905-B (E), D1005-B (E), V1205-B (E), V1205-T-B (E), V1305-B (E), D1105-B (E), V1505-B (E), D1105-T-B (E), V1505-T-B (E)


  • Engine Configuration: Vertical, water-cooled, 4-cycle diesel

  • Number of cylinders: 3 and 4

  • Displacement: 898 cc to 1498 cc

  • Combustion System: N-TVCS (engine serial number 489290 or lower); E-TVCS (Three Vortex Combustion System, engine serial number 489291 or higher)

  • Fuel System: Bosch MD type mini pump, mechanical governor

  • Lubrication System: Forced lubrication by pump

  • Cooling System: Pressurized radiator, forced circulation with water pump

  • Crankshaft End-bolt Serial Break: Engine serial number 604086 and below / 604087 and above — different tightening specifications

Kubota Manual Features & Selected Content Preview

This Kubota 05 Series workshop manual covers D905, D1005, D1105, V1205, V1305, and V1505 diesel engines, including the D1105-T-B (E), V1205-T-B (E), and V1505-T-B (E) turbocharged versions. The English-language May 1996 edition is reprinted as Toro P/N 01090SL.

PDF Bookmarks, Text Search, and Page Count

Navigation and circuit detail: Text search is limited to the cover; the manual pages do not support text search. Embedded PDF bookmarks provide chapter and subsection navigation. Small electrical diagram identifiers are readable with zoom.

The ZIP contains one printable, 124-page PDF, including one reprint cover page and one blank page.


Engine Overhaul, Injection Testing, and Supporting Systems

The following selected coverage highlights summarize the main workshop areas. Further topics include fuel-system bleeding and air-cleaner maintenance.

  • Engine repair: Step-by-step procedures for cylinder-head and valve work, timing-gear installation, piston and connecting-rod service, crankshaft removal, bearing replacement, and cylinder correction.

  • Fuel injection and governor: Injection-timing adjustment, pump-element and delivery-valve leakage tests, nozzle pressure and spray checks, governor service, and automatic advance-timer information.

  • Lubrication and cooling: Oil-pressure testing, oil-pump clearance checks, thermostat and radiator testing, fan-belt adjustment, and water-pump disassembly and reassembly.

  • Starting and charging: Starter and magnet-switch tests, glow-plug diagnosis, starter and alternator teardown, and electrical component inspection.

  • Turbocharger service: Turbine and compressor leak checks, shaft-clearance assessment, housing removal for wheel cleaning, and turbocharger removal and installation.

  • Workshop reference: Symptom/cause/solution troubleshooting tables, maintenance schedules, special-use and general-use torque tables, wear limits, adjustment data, and special-tool drawings.

Written for servicing personnel, this manual assumes workshop knowledge and access to the measuring equipment and special tools required for the work.

Engine Variants and Serial-Specific Service

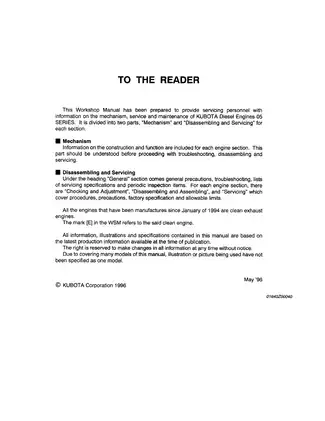

Mechanism explains construction and operation; Disassembling and Servicing provides checks, adjustments, teardown, reassembly, and inspection limits. The specifications distinguish three- and four-cylinder engines, naturally aspirated and turbocharged builds, and configurations with or without an automatic advance timer.

The [E] designation identifies clean-exhaust engines manufactured from January 1994. Serial-specific instructions distinguish glow plugs, cylinder-head and nozzle heat-seal details, injection-pump shims, and crankshaft end-bolt tightening requirements.

Oil-capacity tables also distinguish 101 mm and 125 mm oil-pan depths where applicable. These configuration details help match service data to the engine before parts or procedures are selected.

Internal Engine Inspection and Rebuilding

Cylinder-head work includes flatness and crack inspection, valve-guide replacement, valve-seat correction and lapping, valve-spring testing, and rocker-arm checks. Timing-system inspection covers gear backlash, camshaft alignment, journal oil clearance, and idle-gear bushing replacement.

The lower-engine sections cover piston-ring gaps and groove clearance, connecting-rod alignment, crankpin and main-journal clearances, main-bearing replacement, cylinder wear, and oversize boring and honing. Compression and top-clearance checks support repair assessment as well as a full internal engine rebuild.

The piston instructions preserve the original piston/cylinder and piston/connecting-rod pairings and warn that improper insertion can scratch the chrome-plated ring section and damage the cylinder running surface.

Injection-Pump and Nozzle Work

The Bosch MD mini-pump material explains the pump element, delivery valve, dumping valve, and mechanical governor. Timing procedures distinguish timer-equipped engines and the serial-specific shim arrangements.

Nozzle coverage extends to opening-pressure adjustment, spray-condition assessment, valve-seat leakage testing, and nozzle-holder disassembly. Pump-element replacement requires fuel-delivery adjustment on the specified calibration bench; the manual also cautions against routine injection-pump disassembly.

Cooling, Lubrication, and Electrical Diagnosis

Cooling-system work includes radiator water-leakage and cap air-leakage tests, thermostat checks, and water-pump shaft, impeller, and mechanical-seal service. Lubrication procedures cover oil-pressure measurement and oil-pump rotor, body, and cover clearances.

Starter inspection reaches the commutator, mica undercut, brushes, armature, field coil, magnet switch, and overrunning clutch. Alternator work covers the rotor, stator, rectifier, slip rings, brushes, bearings, and IC regulator.

Troubleshooting tables address no-start and starter faults, rough running, white/blue or black smoke, low output, excessive oil consumption, fuel or water in the oil, abnormal oil pressure, overheating, and rapid battery discharge.

Turbocharger Work and Engine-Only Scope

Turbo coverage includes axial and radial clearance checks, turbine-side exhaust leaks, compressor-side air leaks, and housing removal for wheel cleaning. The compressor wheel and turbine shaft must not be separated; this is not a center-cartridge rebuild procedure.

The installation notes address pre-lubrication and contamination control because foreign material entering open oil lines can damage the turbocharger’s internal oil passages.

This is an engine publication rather than a machine-specific chassis manual. Electrical coverage includes the alternator/IC-regulator circuit and component tests, rather than a host machine’s complete wiring harness.

The radiator, air cleaner, muffler, fuel filter, and automatic advance timer are identified as equipment outside the basic engine or model, although their operation or service is discussed.

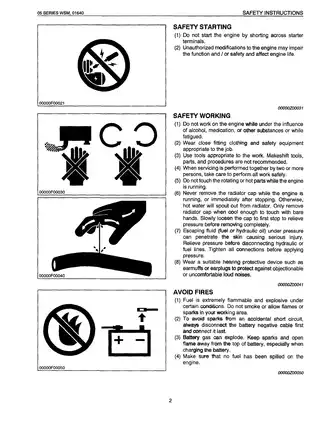

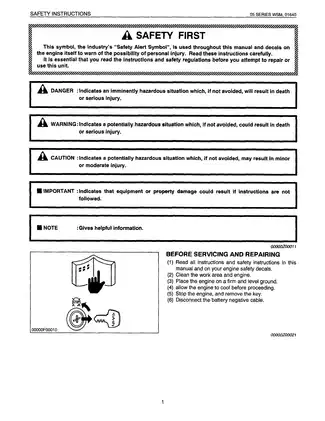

Safety instructions address high-pressure diesel spray, pressurized coolant, hot turbocharger components, and battery isolation before electrical repair.

System Illustrations and Workshop Tools

Illustrations include the lubricating-system flow view, injection-pump element/delivery/dumping-valve sections, governor operating diagrams, automatic advance-timer operation, the alternator IC-regulator circuit, and turbocharger cross-sections.

Special-tool references include flywheel puller 07916-32011, valve-seat cutter set 07909-33102, oil-pressure tester 07916-32031, connecting-rod alignment tool 07909-31661, nozzle tester 07909-31361, and Press Gauge 07909-30241.

Dimensioned fabrication drawings support making valve-guide, bushing, bearing, flywheel-holding, and injection-pump test tools.

A Preview of Valve and Thermostat Specifications

The valve-adjustment section specifies a cold valve clearance of 0.145–0.185 mm for the covered engines, alongside the cylinder-specific adjustment chart.

The cooling-system test specifies thermostat opening at 69.5–72.5°C and complete opening at 85°C. These values accompany the thermostat inspection procedure rather than serving as general engine operating-temperature limits.
