Suzuki Bandit GSF400, GSF400M, GSF400N, GSF400P 1989–1991 Service Manual (P/N 99500-33022-03E)

• Pairs 238 pages from Sections 1–9 of the GSF400/Bandit service manual with the 71-page GSF400P E3 OEM parts catalog—309 PDF pages total across ten files. The catalog explicitly covers GSF400M, GSF400N, and GSF400P and lists their frame-number starting sequences.
• Covers engine compression and oil-pressure checks, removal and reinstallation, complete disassembly and reassembly, cylinder-head and valve work, cam-chain timing, crankshaft and connecting-rod bearing selection, clutch repair, oil-pump inspection, transmission service, and gearshift repair.
• Documents the four-carburetor rack from removal through disassembly, inspection, float adjustment, reassembly, and synchronization. Fuel-tank and fuel-cock service, lubrication circuits, radiator testing, thermostat and thermoswitch checks, cooling-fan diagnosis, and water-pump repair are included.

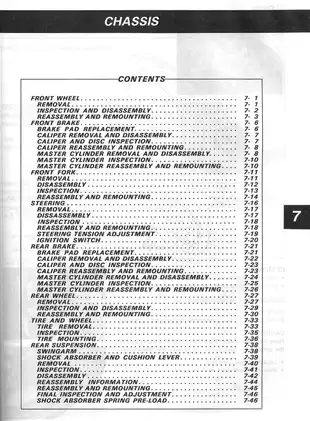

• Details front and rear wheel service, brake-caliper and master-cylinder repair, front-fork overhaul with damper-rod, bushing, seal, and oil-level procedures, steering-stem service, swingarm and cushion-lever work, rear-shock adjustment, and tire removal and mounting.
• Provides charging, digital-ignition, starter-motor and relay, side-stand interlock, combination-meter, lighting, switch, relay, and battery troubleshooting, backed by wiring diagrams for U.S./Canada, West Germany, and other-market configurations.
• Adds 54 numbered exploded-parts figure groups plus five A-suffix variant figures, cable and hose routing views, symptom/cause/remedy charts, factory special-tool part numbers, and component-specific torque, clearance, wear-limit, fluid, and electrical test data.

Model, Market, and Serial Coverage

The parts catalog preface assigns these printed frame-number starts: GSF400M—JS1GK75A M2100001~; GSF400N—JS1GK75A N2100001~; and GSF400P—JS1GK75A P2100001~. Its remarks separate M/N and P applications throughout the catalog and identify California-only parts in the carburetor, igniter, wiring-harness, fuel-tank, and emissions sections. Brake-hydraulic figures are also split between M/N and P. The service information distinguishes U.S. models outside California, California units, Canada, West Germany, and other markets where wiring or emissions content differs.

The service portion ends with Section 9, Emission Control Information; no separate model-update or supplemental service files are included. Explicit M/N/P coverage and model-split part applications therefore come from the parts catalog rather than dedicated variant supplements.

Part-selection detail extends below the model level. The catalog records a cylinder-head hose change beginning at engine No. 120783 and a lower crankshaft-bearing application break keyed to engine No. K707-121475. It also warns that individual Model P California carburetor component numbers on the affected pages were to be announced in a later revised edition and should not be treated as final ordering references.

Overhaul-Level Repair Content

Periodic maintenance is organized around the factory chart and lubrication points. The engine chapters then move into valve-guide removal and reaming, valve-seat cutting, camshaft runout and journal-clearance inspection, piston and ring checks, crankshaft and connecting-rod bearing selection with Plastigauge, clutch inspection, oil-pump service, transmission gear and shift-fork inspection, and final engine reassembly. Carburetor coverage explains the slow, main, starter, and float circuits before moving into rack inspection, adjustment, and synchronization. Cooling diagnosis includes radiator pressure testing, thermostat and thermoswitch testing, fan operation, and water-pump inspection.

A dedicated emissions section identifies the close-tolerance main, needle, and pilot jets used in the emission-control carburetors, explains the factory-sealed pilot-screw arrangement, and diagrams the California evaporative-emission system with its canister and hose routing.

Diagrams, Tools, and Service Data

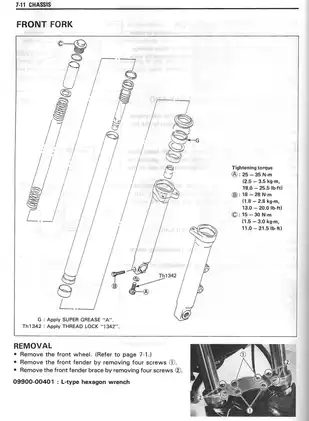

Useful named illustrations include the U.S.A./Canada wiring diagram, California evaporative-emission system diagram, canister hose-routing view, engine lubrication-system chart, front-fork exploded view, and fuel, vacuum, and air-vent hose routing. The parts catalog also supplies model-split drawings for P-model lighting and brake-hydraulic assemblies.

The factory-tool listing supplies Suzuki part numbers rather than generic descriptions alone. Selected entries include carburetor balancer 09913-13121, digital ignitor checker 09931-94430 with adapter 09931-94460, front-fork oil-seal installer 09940-50113, steering-stem nut wrench 09940-14911, and front-fork oil-level gauge 09943-74111. Consolidated service-data pages provide tightening torques, fluid capacities, clearances, runout and wear limits, carburetor specifications, electrical test values, brake and wheel limits, suspension data, and tire-pressure specifications.

Scope and Repair Cautions

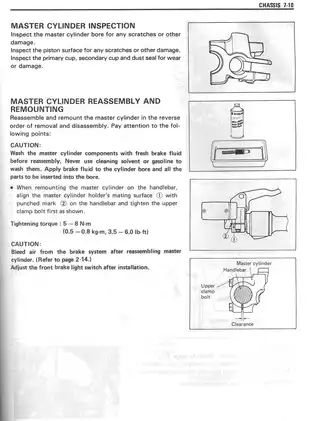

The parts-catalog drawings are intended for OEM part-number identification, not as an assembly sequence; repair work should be based on the matching service chapters. During camshaft installation, the manual warns that the journal holders must be drawn down evenly because uneven loading can damage the cylinder-head or journal-holder thrust surfaces. The brake chapters specify fresh brake fluid rather than solvent or gasoline for hydraulic components, warn that spilled fluid attacks paint, plastic, and rubber, and prohibit high-pressure air because it can damage caliper pistons.

Because the set covers brake hydraulics, steering, suspension, and internal-engine work, those repairs should be handled by a qualified technician whenever the specified tools, secure support, or inspection experience are not available.
