1991–1997 Suzuki GSF400 Bandit Service Manual (P/N 99500-33023-01E)

This 1991–1997 Suzuki GSF400 Bandit factory service manual, P/N 99500-33023-01E, combines the core workshop chapters with integrated GSF400N ('92-model), GSF400P ('93-model), and GSF400VV ('97-model) updates. This is the fourth edition, dated November 1996, with the original 1990 copyright.

• Engine repair: Engine removal and installation, cylinder-head service, valve-guide replacement, piston inspection, crankshaft bearing selection, and camshaft timing.

• Transmission and clutch: Gearbox disassembly, shift-fork inspection, shaft reassembly, clutch-plate checks, and clutch-release adjustment.

• Fuel and lubrication: Carburetor disassembly, float-height adjustment, synchronization, fuel-cock inspection, and engine oil-pressure testing.

• Cooling system: Radiator and cap pressure tests, thermostat and fan-switch checks, and water-pump bearing and seal replacement.

• Brakes and chassis: Caliper and master-cylinder overhaul, hydraulic bleeding, front-fork rebuilding, wheel-bearing replacement, and steering and swingarm service.

• Electrical troubleshooting: Charging-output checks, ignition and starter diagnosis, side-stand interlock testing, and market-specific wiring diagrams.

• GSF400VV valve control: Variable valve timing/lift operation, intake-clearance adjustment, shim selection, actuator checks, and VC troubleshooting charts.

Suzuki wrote this manual primarily for experienced mechanics, while also identifying apprentice and do-it-yourself mechanics as users.

Model Updates and Variable Valve Control

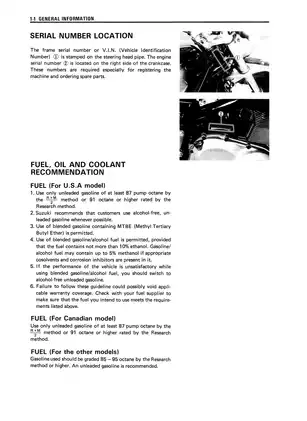

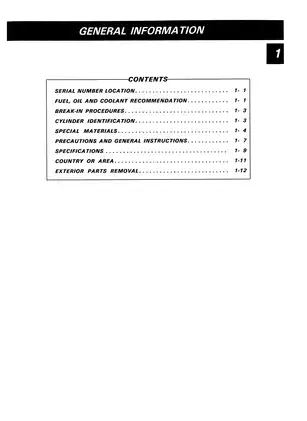

General information includes frame and engine number locations. The later chapters supplement the earlier procedures. GSF400N data distinguish California cam specifications and regional fork settings; GSF400P adds revised valve, gearing, and chassis information. Matching the model chapter and market code helps avoid applying an earlier specification to a changed component.

The GSF400VV chapter explains the VC engine and its low- and high-speed intake cam operation. It covers tappet and sub-rocker shim selection, rocker-arm play, and checks for the oil-control actuator solenoid, fail-safe switch, and ignitor relay. Its fault charts separate electrical, oil-pressure, and mechanical causes of poor power or abnormal switching. The manual prohibits disassembly of the oil-control actuator.

Engine and Transmission Repair

Compression testing and oil-pressure checks for the liquid-cooled TSCC engine include fault causes to support diagnosis before teardown. Internal engine sections provide valve-seat widths and reconditioning procedures, cam timing data, bearing selection tables, and thrust bearing selection tables. Transmission cross-sectional views show gear, washer, and circlip placement.

The camshaft journal-holder instructions identify the special bolts marked “9” and warn that uneven tightening can damage the cylinder head or holder thrust surfaces. Oil-pump service is limited to removal and assembly replacement; the pump itself is not to be dismantled.

Carburetors and Cooling-System Service

The carburetor sections distinguish Mikuni BST33SS and BST32SS specifications, explain their metering circuits, and describe balancer-gauge calibration before synchronization. The listed carburetor balancer is 09913-13121. A lubrication-system chart traces oil delivery through the engine.

Cooling coverage extends to radiator-cap testing, thermostat opening and lift checks, fan-motor testing, and water-pump mechanical-seal installation. These checks help separate overheating caused by circulation problems from fan-control faults.

Electrical Testing

Ignition diagnosis includes coil and signal-generator tests. The base manual describes the 09931-94430 digital ignitor checker with 09931-94460 adapter; the VV chapter adds an ignitor terminal diagram and resistance table with test limitations.

Wiring diagrams distinguish U.S./Canadian, German, and other base-model arrangements, with further P and VV diagrams. Harness, cable, and hose routing drawings support reassembly.

Brakes, Suspension, and Routine Maintenance

Chassis sections include brake-disc inspection, steering-bearing adjustment, and rear suspension linkage service, with component-specific torque tables. Periodic maintenance charts cover the battery, spark plugs, air cleaner, cooling system, and other scheduled checks; the VV chapter has its own schedule.

Working on brake hydraulics, hot cooling systems, and engine internals requires appropriate mechanical training and shop equipment.

Examples of Piston Clearance and VC Solenoid Test Data

These examples are a small selection from the manual's engine inspection and electrical test specifications.

The piston-to-cylinder tables list standard clearance of 0.050–0.060 mm and a service limit of 0.120 mm across the covered engine variants, distinguishing normal fit from the wear threshold.

For the GSF400VV, the oil-control actuator solenoid resistance is 14.2–15.2 Ω. Its electrical section pairs this specification with an operational check.

PDF Bookmarks, Diagram Detail, and Page Breakdown

Navigation and readability: Embedded bookmarks link the main chapters and model updates. PDF text search is unavailable. Small wiring labels require zooming, and some earlier wiring diagrams have fine, faint lines.

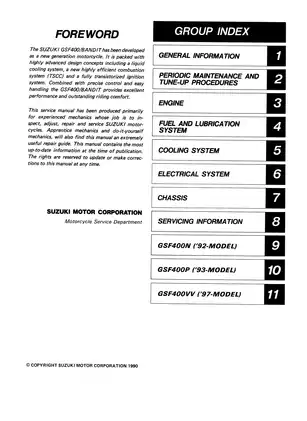

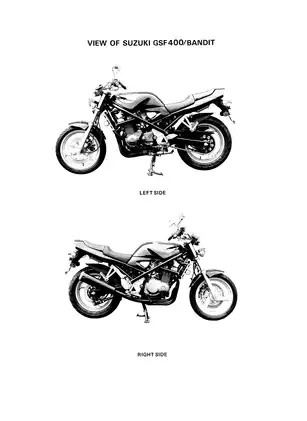

Supplied as one printable 319-page PDF: 234 pages of core workshop chapters, 13 GSF400N pages, 16 GSF400P pages, and 51 GSF400VV pages. The total already includes five front/end pages: front cover, foreword/group index, model views, publication details, and back cover.
